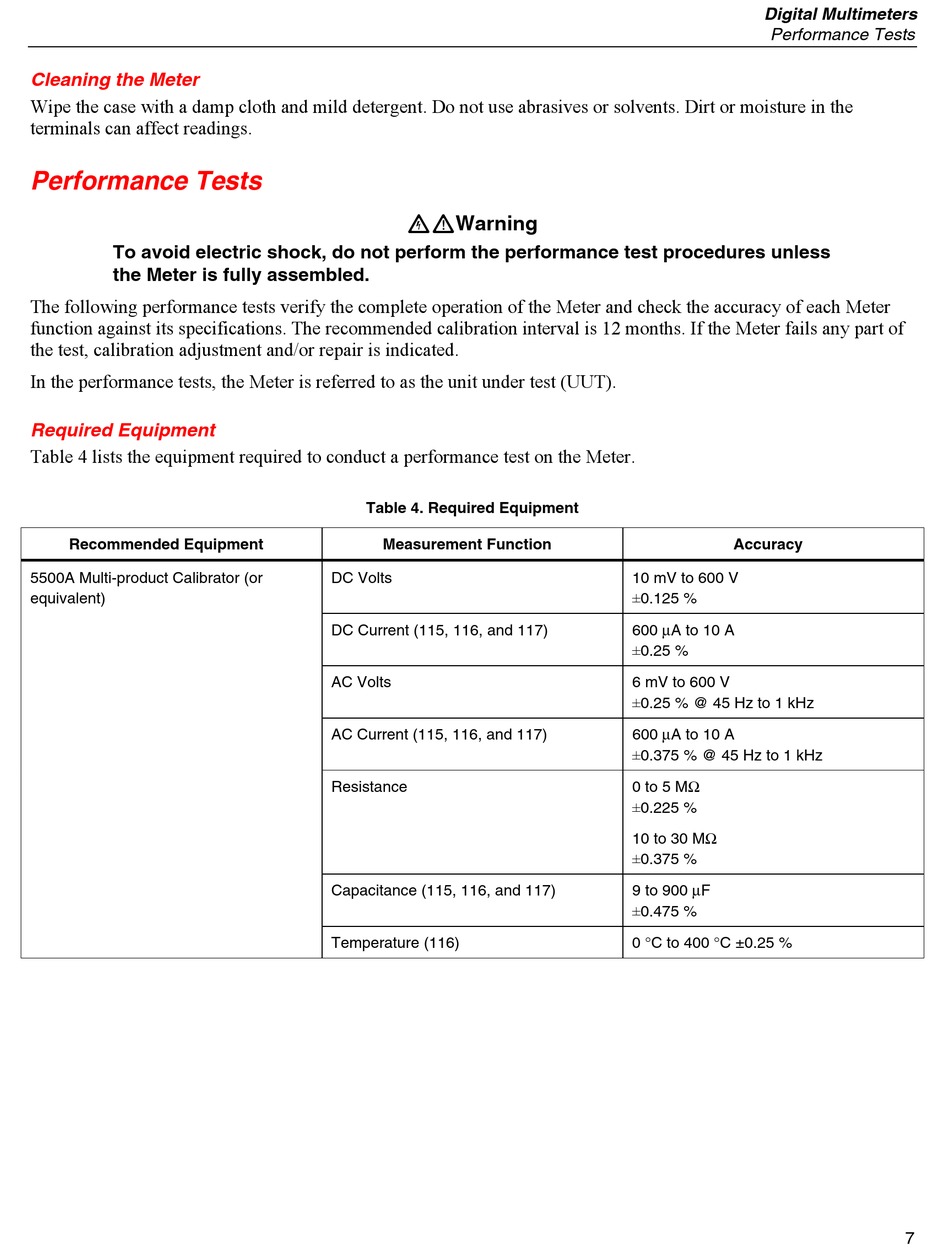

Cleaning the Meter

Wipe the case with a damp cloth and mild detergent. Do not use abrasives or solvents. Dirt or moisture in the
terminals can affect readings.

Performance Tests

To avoid electric shock, do not perform the performance test procedures unless
the Meter is fully assembled.
The following performance tests verify the complete operation of the Meter and check the accuracy of each Meter
function against its specifications. The recommended calibration interval is 12 months. If the Meter fails any part of
the test, calibration adjustment and/or repair is indicated.
In the performance tests, the Meter is referred to as the unit under test (UUT).

Required Equipment

Table 4 lists the equipment required to conduct a performance test on the Meter.
Recommended Equipment
5500A Multi-product Calibrator (or
equivalent)
XWWarning
Table 4. Required Equipment
Measurement Function
DC Volts
DC Current (115, 116, and 117)
AC Volts
AC Current (115, 116, and 117)
Resistance
Capacitance (115, 116, and 117)
Temperature (116)
Digital Multimeters
Performance Tests
Accuracy
10 mV to 600 V
±0.125 %
600 μA to 10 A
±0.25 %
6 mV to 600 V
±0.25 % @ 45 Hz to 1 kHz
600 μA to 10 A
±0.375 % @ 45 Hz to 1 kHz
0 to 5 MΩ
±0.225 %
10 to 30 MΩ
±0.375 %
9 to 900 μF
±0.475 %
0 °C to 400 °C ±0.25 %
7
