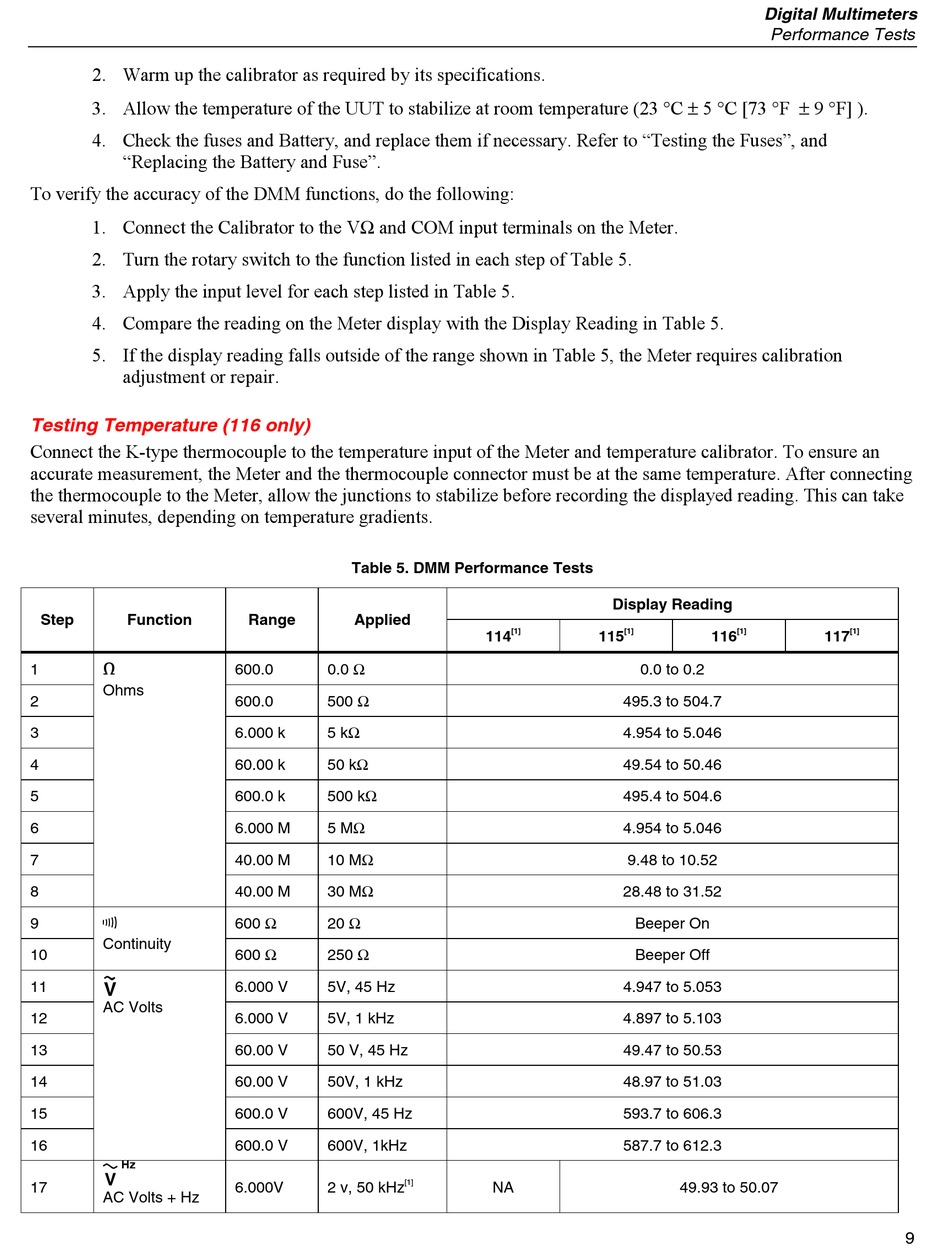

2. Warm up the calibrator as required by its specifications.
3. Allow the temperature of the UUT to stabilize at room temperature (23 °C ± 5 °C [73 °F ± 9 °F] ).
4. Check the fuses and Battery, and replace them if necessary. Refer to "Testing the Fuses", and
"Replacing the Battery and Fuse".
To verify the accuracy of the DMM functions, do the following:
1. Connect the Calibrator to the VΩ and COM input terminals on the Meter.
2. Turn the rotary switch to the function listed in each step of Table 5.
3. Apply the input level for each step listed in Table 5.
4. Compare the reading on the Meter display with the Display Reading in Table 5.
5. If the display reading falls outside of the range shown in Table 5, the Meter requires calibration
adjustment or repair.
Testing Temperature (116 only)
Connect the K-type thermocouple to the temperature input of the Meter and temperature calibrator. To ensure an
accurate measurement, the Meter and the thermocouple connector must be at the same temperature. After connecting
the thermocouple to the Meter, allow the junctions to stabilize before recording the displayed reading. This can take
several minutes, depending on temperature gradients.
Step
Function
e
1
Ohms
2
3
4
5
6
7
8
R
9
Continuity
10
K
11
AC Volts
12
13
14
15
16
e
17
AC Volts + Hz
Table 5. DMM Performance Tests
Range
Applied
0.0 Ω
600.0
500 Ω
600.0
6.000 k
5 kΩ
60.00 k
50 kΩ
600.0 k
500 kΩ
6.000 M
5 MΩ
40.00 M
10 MΩ
40.00 M
30 MΩ
600 Ω
20 Ω
600 Ω
250 Ω
6.000 V
5V, 45 Hz
6.000 V
5V, 1 kHz
60.00 V
50 V, 45 Hz
60.00 V
50V, 1 kHz
600.0 V
600V, 45 Hz
600.0 V
600V, 1kHz
[1]
6.000V
2 v, 50 kHz
Display Reading
[1]
[1]
114
115
0.0 to 0.2
495.3 to 504.7
4.954 to 5.046
49.54 to 50.46
495.4 to 504.6
4.954 to 5.046
9.48 to 10.52
28.48 to 31.52
Beeper On
Beeper Off
4.947 to 5.053
4.897 to 5.103
49.47 to 50.53
48.97 to 51.03
593.7 to 606.3
587.7 to 612.3
NA
Digital Multimeters
Performance Tests
[1]
[1]
116
117
49.93 to 50.07
9
