Fluke 117 Specifications

Electrician’s multimeter with non-contact voltage
Hide thumbs
1
2

Advertisement

Quick Links

Download this manual See also: User Manual
Fluke 117
Electrician's Multimeter
with Non-Contact Voltage
Actual size
R
N10140

Technical Data

Compact true-rms meter for
commercial applications

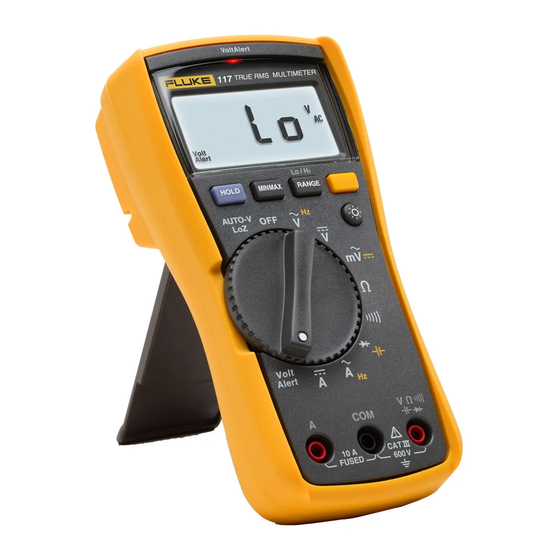

The Fluke 117 is the ideal meter for
demanding settings like commercial
buildings, hospitals and schools. The 117
includes integrated non-contact voltage
detection to help get the job done faster.
Features include:
•
VoltAlert
technology for non-contact voltage detection
™
•
AutoVolt automatic ac/dc voltage selection
•
LoZ: helps prevent false readings due to ghost voltage
•
Large white LED backlight to work in poorly lit areas
•
True-rms for accurate measurements on non-linear loads
•
Measures 20 A (30 seconds momentary; 10 A continuous)
•
Resistance, continuity, frequency and capacitance
•
Min/Max/Average to record signal fluctuations
•
Compatible with optional magnetic hanger (ToolPak
hands free operation
•
CAT III 600 V safety rated

General specifications

Accuracy is specified for 1 year after calibration, at operating
temperatures of 18 °C to 28 °C, with relative humidity at
0 % to 95 %.
The accuracy specifications take the form of:
± ( [ % of reading ] + [ counts ] )
Maximum voltage between any
terminal and earth ground
Surge protection
Fuse for A input
Display
Bar graph
Operating temperature
Storage temperature
Battery
Battery life
) for
™
600 V
6 kV peak per IEC 61010-1 600 V
CAT III, Pollution Degree 2
11 A, 1000 V FAST Fuse
(Fluke PN 803293)
Digital: 6,000 counts, updates 4/sec
33 segments, updates 32/sec
-10 °C to + 50 °C
-40 °C to + 60 °C
9 volt Alkaline, NEDA 1604A/
IEC 6LR61
400 hours typical, without backlight

Advertisement

loading

  Also See for Fluke 117

Fluke 117 User Manual
Fluke 117 User Manual 27 pages
Fluke 110 Calibration Information Manual
Fluke 110 Calibration Information Manual 26 pages
Fluke 114 User Manual
Fluke 114 User Manual 26 pages

  Related Manuals for Fluke 117

  Summary of Contents for Fluke 117

  • Page 1: Technical Data

    Non-Contact Voltage Technical Data Compact true-rms meter for commercial applications The Fluke 117 is the ideal meter for demanding settings like commercial buildings, hospitals and schools. The 117 includes integrated non-contact voltage detection to help get the job done faster.
  • Page 2 0.001 A 1.5 % + 3 (45 Hz to 500 Hz) 10.00 A 0.01 A 20 A continuous overload for 30 seconds max. DC amps 6.000 A 0.001 A 1.0 % + 3 10.00 A 0.01 A 20 A continuous overload for 30 seconds max. Fluke. Keeping your world up and running. Hz (V or A input) 99.99 Hz 0.01 Hz 999.9 Hz 0.1 Hz 0.1 % + 2 Fluke Corporation 9.999 kHz 0.001 kHz PO Box 9090, Everett, WA USA 98206 50.00 kHz 0.01 kHz...
