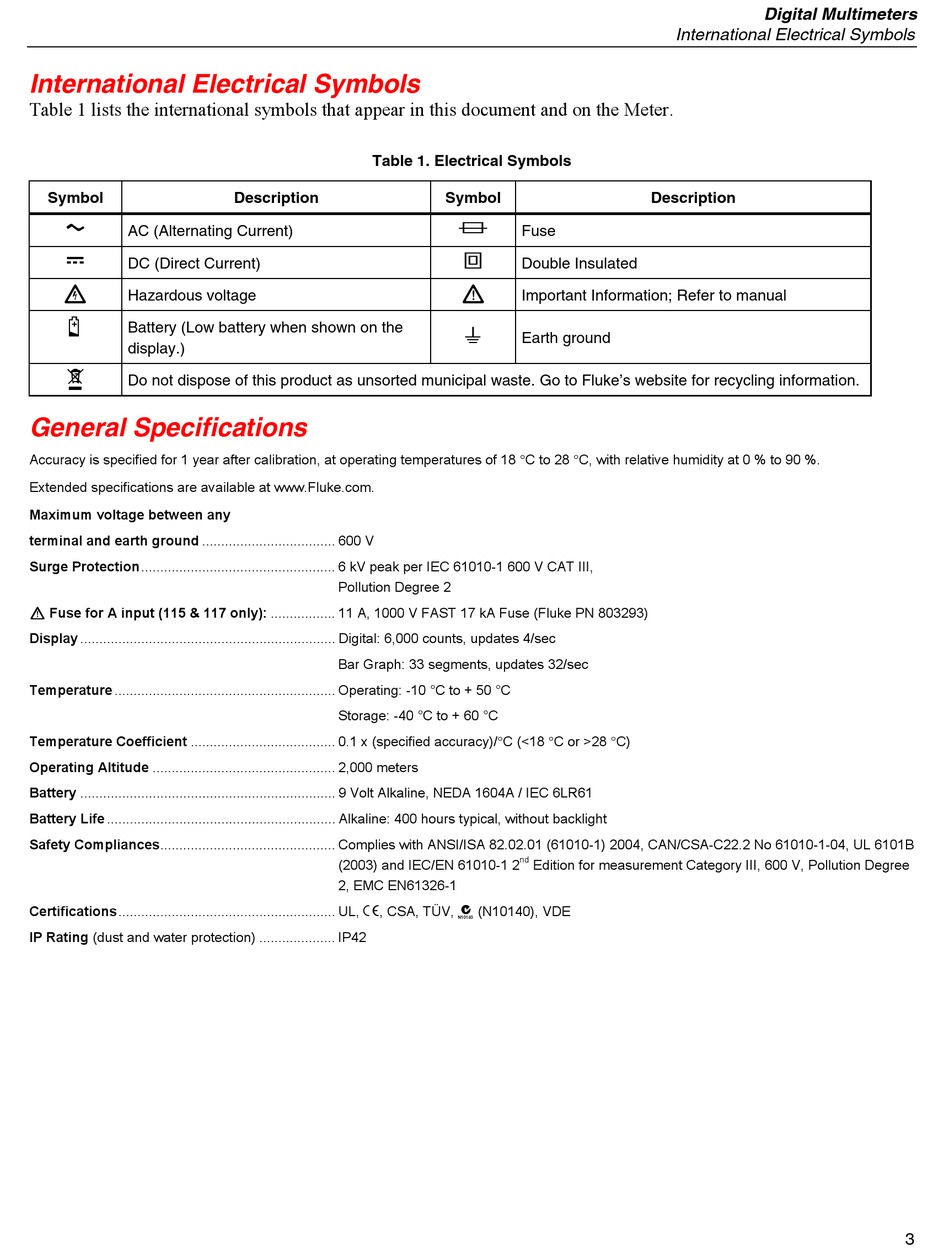

International Electrical Symbols; General Specifications - Fluke 114 Calibration Information Manual

Hide thumbs

Advertisement

Table of Contents

International Electrical Symbols

Table 1 lists the international symbols that appear in this document and on the Meter.
Symbol
B
AC (Alternating Current)
F
DC (Direct Current)
X
Hazardous voltage
N
Battery (Low battery when shown on the
display.)
~
Do not dispose of this product as unsorted municipal waste. Go to Fluke's website for recycling information.

General Specifications

Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 90 %.
Extended specifications are available at www.Fluke.com.
Maximum voltage between any
terminal and earth ground ................................... 600 V
Surge Protection................................................... 6 kV peak per IEC 61010-1 600 V CAT III,
W Fuse for A input (115 & 117 only): ................. 11 A, 1000 V FAST 17 kA Fuse (Fluke PN 803293)
Display ................................................................... Digital: 6,000 counts, updates 4/sec
Temperature .......................................................... Operating: -10 °C to + 50 °C
Temperature Coefficient ...................................... 0.1 x (specified accuracy)/°C (<18 °C or >28 °C)
Operating Altitude ................................................ 2,000 meters
Battery ................................................................... 9 Volt Alkaline, NEDA 1604A / IEC 6LR61
Battery Life ............................................................ Alkaline: 400 hours typical, without backlight
Safety Compliances.............................................. Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 No 61010-1-04, UL 6101B
Certifications ......................................................... UL, P, CSA, TÜV, ; (N10140), VDE
IP Rating (dust and water protection) .................... IP42
Table 1. Electrical Symbols
Description
Pollution Degree 2
Bar Graph: 33 segments, updates 32/sec
Storage: -40 °C to + 60 °C
(2003) and IEC/EN 61010-1 2
2, EMC EN61326-1
Symbol
I
Fuse
T
Double Insulated
W
Important Information; Refer to manual
J
Earth ground
nd
Edition for measurement Category III, 600 V, Pollution Degree
Digital Multimeters
International Electrical Symbols
Description
3
