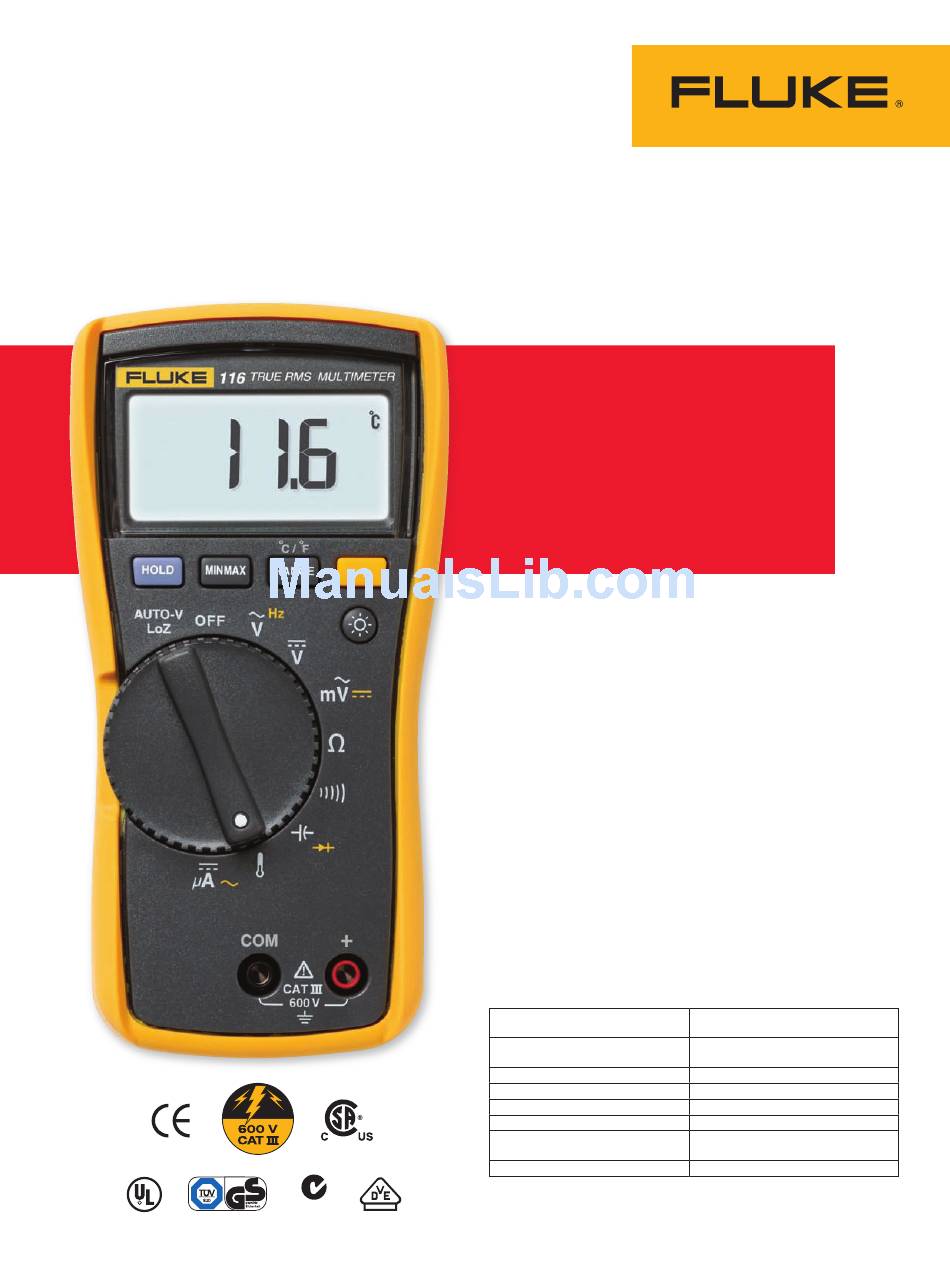

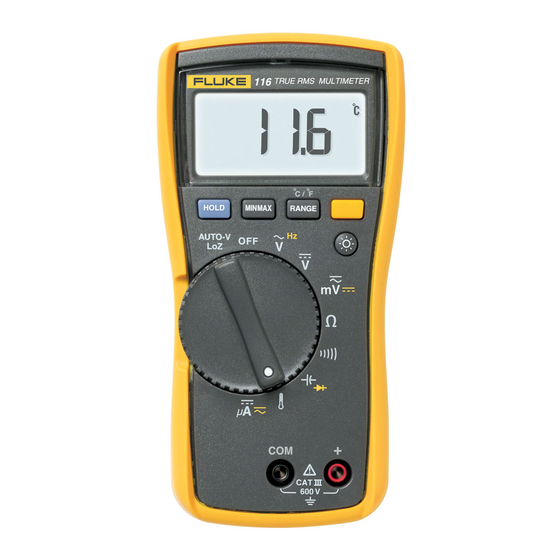

Fluke 116
HVAC Multimeter
with Temperature and Microamps
Actual size
R
N10140

Technical Data

Compact true-rms meter for
HVAC troubleshooting
The Fluke 116 was specifically designed
for the HVAC professional. It has every-
thing needed in an HVAC meter including
temperature and microamp measure-
ments to quickly troubleshoot problems
with HVAC equipment and flame sensors.
Features include:
Built in thermometer for HVAC applications
Microamps to test flame sensors
LoZ: helps prevent false readings due to ghost voltage
Large white LED backlight to work in poorly lit areas
Resistance, continuity, frequency and capacitance
Min/Max/Average with elapsed time to record signal
fluctuations
Compact ergonomic design for one-handed operation
Compatible with optional magnetic hanger (ToolPak
CAT III 600 V safety rated

General specifications

Accuracy is specified for 1 year after calibration, at operating
temperatures of 18 °C to 28 °C, with relative humidity at
0 % to 95 %.
The accuracy specifications take the form of:
± ( [ % of reading ] + [ counts ] )
Maximum voltage between any
terminal and earth ground
Surge protection
Display
Bar graph
Operating temperature
Storage temperature
Battery
Battery life
)
600 V
6 kV peak per IEC 61010-1 600 V
CAT III, Pollution Degree 2
Digital: 6,000 counts, updates 4/sec
33 segments, updates 32/sec
-10 °C to + 50 °C
-40 °C to + 60 °C
9 volt Alkaline, NEDA 1604A/
IEC 6LR61
400 hours typical, without backlight
