3D Systems Cube 2nd Generation User Manual page 49

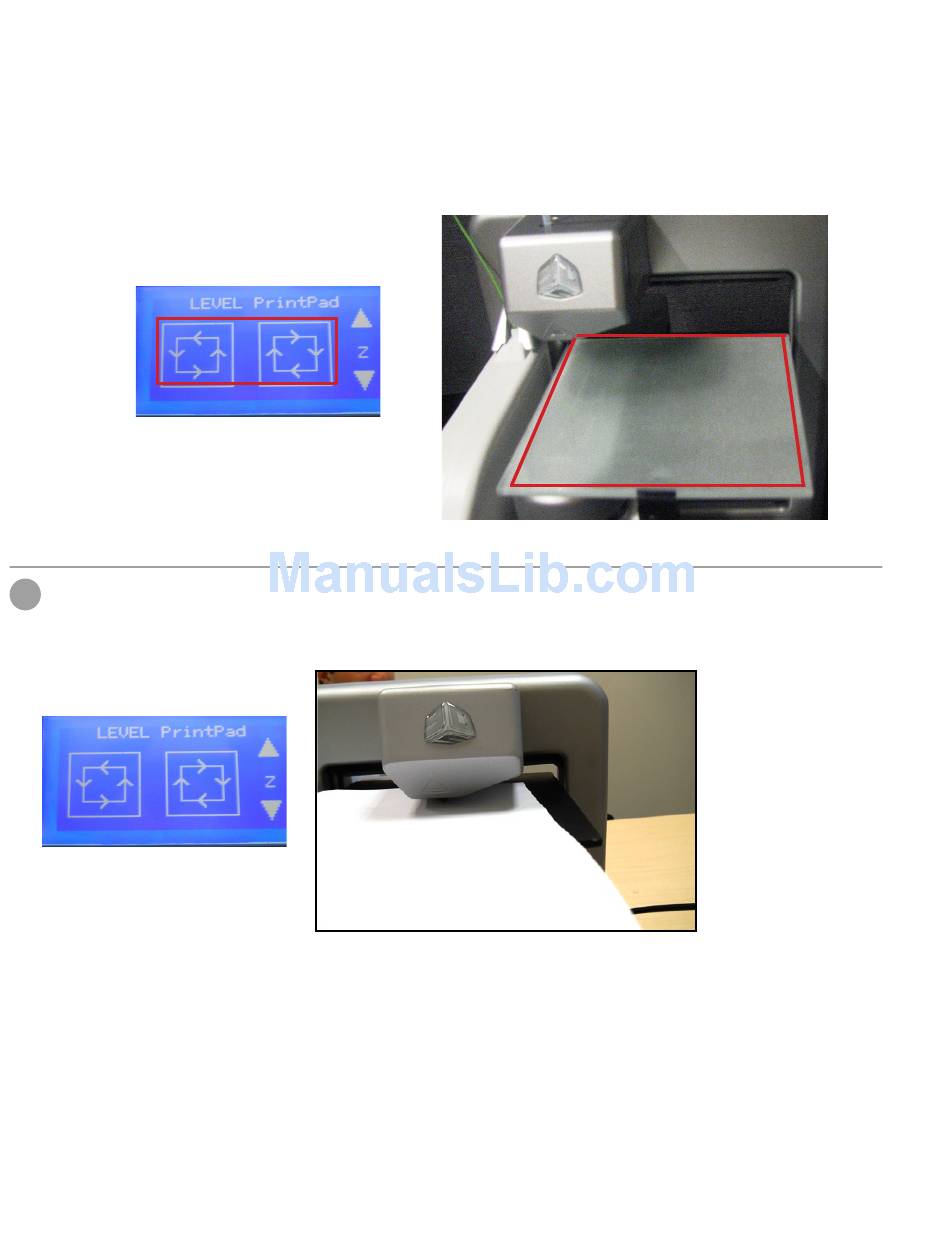

• Touch the "clockwise" and "counter-clockwise" buttons to automatically move the print jet around the four corners of the print pad.
During each movement along the sides of the print pad, observe any gaps between the pad and the print jet. If there are gaps on
one side of print pad and the print jet tip is barely touching the print pad on the other side, the print pad pad is not level.
• Please refer to the FRONT TO BACK or SIDE TO SIDE instructions on how to turn the adjusting knob bolts to level the pad
properly.
D
Fold a sheet of standard paper in half and place it between the print tip and the print pad where the adjustment needs to be
made. If the paper can not slide between the print tip and print pad, tap the "down" arrow key on touchscreen.
56
