Life Gear 97875 Owner's Manual

Frontier pro programmable motorized treadmill
Hide thumbs

Advertisement

Table of Contents

FRONTIER PRO PROGRAMMABLE
MOTORIZED TREADMILL
ITEM NO: 97875
OWNER'S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner's manual for future reference.
The specifications of this product may vary from this photo and are subject to change
without prior notice.
2014, July

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 97875 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Life Gear 97875

Summary of Contents for Life Gear 97875

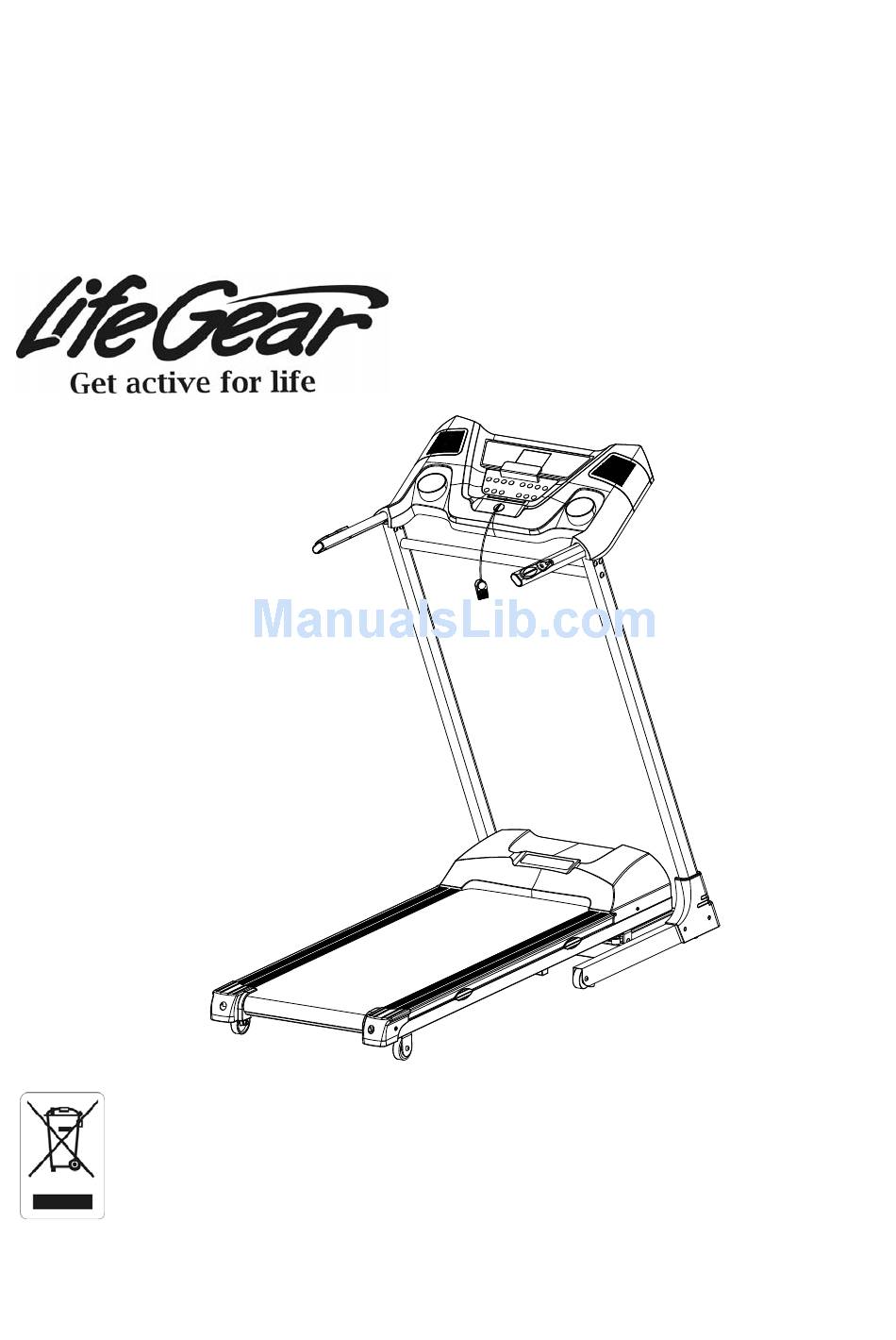

  • Page 1 FRONTIER PRO PROGRAMMABLE MOTORIZED TREADMILL ITEM NO: 97875 OWNER’S MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo and are subject to change without prior notice.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARRANTY ------------------------------------------------------------------------------ 2 IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 3 PARTS LIST -------------------------------------------------------------------------------- 5 HARDWARE LIST ------------------------------------------------------------------------ 6 TOOLS --------------------------------------------------------------------------------------- 6 OVERVIEW DRAWING ----------------------------------------------------------------- 7 ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 8 LIFTING UP & SETTING DOWN THE TREADMILL ----------------------------- 13 MOVING THE TREADMILL ------------------------------------------------------------ 14 OPERATING THE COMPUTER ------------------------------------------------------ 15 CARE, MAINTENANCE &...

  • Page 3: Warranty

    ONE YEAR LIMITED WARRANTY LifeGear Inc. warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's obligation under this warranty is limited to replacing or repairing free of charge, any parts which may prove to be defective under normal home use.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Basic precautions, including the following important safety instructions should always be followed when using this treadmill. Read all instructions before using this treadmill. DANGER: To reduce the risk of electric shock, always unplug the treadmill from the electrical outlet immediately after using and before cleaning, assembling, or servicing the treadmill.
  • Page 5 Always hold on to the handrails while using the treadmill. Always make sure the storage latch is in place when folding and moving the treadmill. Do not leave children who are under 12 years-old unsupervised near or on the treadmill. To disconnect, turn all controls to the off position, then remove plug from the wall outlet.

  • Page 6: Parts List

    PARTS LIST Description Qty No. Description 001 Upper Computer Cover 1 027 Nylon Nut M8 Hexagon Socket Oval Head Bolt 002 Lower Computer Cover 1 028 M8x25 Cross Recessed Self Tapping Hexagon Socket Oval Head Bolt 8 029 Screw M4x12 M8x40 (Part Thread) 004 Handlebar 1 030 Transport Wheel...

  • Page 7: Hardware List

    PARTS LIST Description Qty No. Description Hexagon Socket Oval Head Bolt 8 069 Power Switch M6x35 055 Running Belt Alignment Bracket 2 070 Fuse Box 056 Bottom Board 1 071 Power Cord 057 Front Roller Protective Cover 1 072 Power Control Board 058 Motor Cover 1 073 Ring for Power Cable Cross Recessed Truss Head Bolt...

  • Page 8: Overview Drawing

    OVERVIEW DRAWING...

  • Page 9: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Tool: Allen Wrench with Phillips Screwdriver Step 1 Remove the treadmill from the carton and place it on a level flat surface. Please always use the aid of a second person when removing the treadmill from the carton. Pull the Sensor Cable (64) out from the Base Frame (18).
  • Page 10 Tool: Allen Wrench with Phillips Screwdriver Step 2 Attach the Cross Bar (15) onto the Right and Left Handlebar Support Tubes (17R, 17L) with two M8x50 Hexagon Socket Oval Head Bolts (16) and two Ø8.5xØ16x1T Washers (79). Semi-tighten bolts with the Allen Wrench with Phillips Screwdriver provided. NOTE: DO NOT FULLY TIGHTEN BOLTS IN STEP 2 UNTIL THE STEP 3 IS COMPLETE.
  • Page 11 Tool: Allen Wrench with Phillips Screwdriver Step 3 Connect the Sensor Cable (64) from the Right Handlebar Support Tube (17R) to the Extension Sensor Cable (65) that comes from the Computer (1). It is recommended to have a second person assist with this step. One person should hold the Computer (1) in place while the other person connects the sensor cables.
  • Page 12 Tool: Allen Wrench with Phillips Screwdriver Step 4 Attach both Left and Right Handlebar Support Tube Covers (19L, 19R) onto Base Frame (18) with four M4x10 Cross recessed Truss Head Bolts (48). Tighten bolts with the Allen Wrench with Phillips Screwdriver provided. Hardware: (48) Cross Recessed Truss Head Bolt M4x10...
  • Page 13 Tool: Allen Wrench Step 5 The running belt has been adjusted to the running deck at the factory before it was shipped. At times the running belt may get slippery during shipment. After the treadmill is completely assembled, use the Allen Wrench provided to turn the both left and right rear roller adjustment bolts 1/4 turn clockwise before using the treadmill.

  • Page 14: Lifting Up & Setting Down The Treadmill

    LIFTING UP & SETTING DOWN THE TREADMILL LIFTING UP THE TREADMILL Firmly grasp the back end of the treadmill with both hands. Carefully lift the end of the treadmill up into the upright position until the Foot Lock Latch engages and securely locks the main frame into position.

  • Page 15: Moving The Treadmill

    MOVING THE TREADMILL Base Frame The unit can be carefully tilted onto its transport wheels for easy moving and storage. With the treadmill in the folded locked position (foot lock latch is engaged), firmly grasp the back end of the treadmill with both hands and place one foot on the Transport Wheel Cap. Next, carefully tilt the treadmill back until it rolls freely on the transport wheels.

  • Page 16: Operating The Computer

    OPERATING THE COMPUTER Flip the Master Power Switch that is located at the front of the treadmill to the ON position. The computer console will beep for 1 second before starting. Before beginning a workout session ensure that the Safety Tether Key is properly placed onto the Computer Console and the Safety Clip is securely attached to an article of your clothing.
  • Page 17 COMPUTER BUTTON FUNCTIONS: ST/SP (START/STOP): Press the ST/SP (START/STOP) button to start or stop the treadmill. ENTER: Press the ENTER button to confirm the selected program or the setting value for different programs. During exercise mode, press the ENTER button to switch display as below : TIME←→DISTANCE, PULSE←→...
  • Page 18 INCLINE DOWN: Makes incline adjustments during all training periods on different training modes. The incline adjustment available range is from 0 to 15 levels. INSTANT SPEED (2 / 6 / 10 / 14): Press one of the INSTANT SPEED buttons (2 / 6 / 10 / 14) on the computer console and the split window of SPEED will display the speed that you have pressed and the running speed will change to 2 KPH, 6 KPH, 10 KPH, or 14 KPH respectively.
  • Page 19 exercise. Distance starts counting up. You may also pre-set target distance in STOP mode for P0-P7 and U1-U2 programs before training. To set DISTANCE press the ENTER button on the computer console to select DISTANCE until you see the split window of DISTANCE begin blinking.
  • Page 20 TRAINING IN PRE-SET PROGRAM MODE (P1-P7): The computer offers 7 pre-set programs (P1-P7). You may select one of the pre-set training programs in STOP mode before training. Press the SPEED UP or SPEED DOWN button on the computer console to select one of the training programs. Press the ENTER button for confirm the selected program.
  • Page 21 detected. For example, the running speed will increase while the heart rate detected is lower than Target Heart Rate. Also, the running speed will decrease while the heart rate detected is higher than Target Heart Rate. As a result, the user’s heart rate will be adjusted equal to the Target Heart Rate.
  • Page 22 SPEED UP or SPEED DOWN button on the computer console to set user's height. Press the ENTER button on the computer console to confirm the height and the screen will 70 (WEIGHT). Press the SPEED UP or SPEED DOWN button on the computer console to set user's weight.

  • Page 23: Care, Maintenance & Troubleshooting Guide

    CARE, MAINTENANCE & TROUBLESHOOTING GUIDE WARNING: To prevent electrical shock, please turn off and unplug the treadmill before cleaning or performing routine maintenance. WARNING:Always check the wear and tear components like foot lock latch tube and running belt to prevent injury. CLEANING After each exercise, ensure that the unit is wiped down and any sweat is removed from the unit.
  • Page 24 Problem Cause Things to Check Solution Defective Check the connected connected wire to cable from controller Re-connected all wires. motor. board to motor. Without pressing Check the ST/SP button Re-press the ST/SP button. the ST/SP button. can work properly or not. Safety tether key is Check the position of the Reposition the safety tether...
  • Page 25 Problem Cause Things to Check Solution Inspect the distance Adjust the gap to be within between the sensor 3 mm. and magnet. Computer can not get Inspect whether the signal from the speed sensor wire or speed sensor for 15 Reconnect or change the other related wires seconds.

  • Page 26: Belt Adjustment

    BELT ADJUSTMENT The running belt is pre-adjusted to the running deck at the factory, but after prolonged use it can stretch and require readjustment. To adjust the belt, turn on the main power switch of the treadmill and let the belt run at a speed of 8-10 KPH. Use the Allen Wrench provided to turn the rear roller adjustment bolts in order to centre the belt.

  • Page 27: Lubrication

    LUBRICATION Lubricating under the running belt will ensure superior performance and extend its life expectancy. After the first 25 hours of use (or 2-3 months) apply some lubricant, and repeat for every following 50 hours of use (or 5-8 months). How to check running belt for proper lubrication Lift one side of the running belt and feel the top surface of the running deck.

  • Page 28: Warm Up And Cool Down Routine

    WARM UP AND COOL DOWN ROUTINE The WARM-UP is an important part of any workout. The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before aerobic exercising. It should begin every session to prepare your body for more strenuous exercise by heating up and stretching your muscles, increasing your circulation and pulse rate, and delivering more oxygen to your muscles.
  • Page 29 QUADRICEPS STRETCH With one hand against a wall for balance, reach behind you and pull your right foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with left foot. INNER THIGH STRETCH Sit with the soles of your feet together and your knees pointing outward.
