Life Gear 97530 Owner's Manual

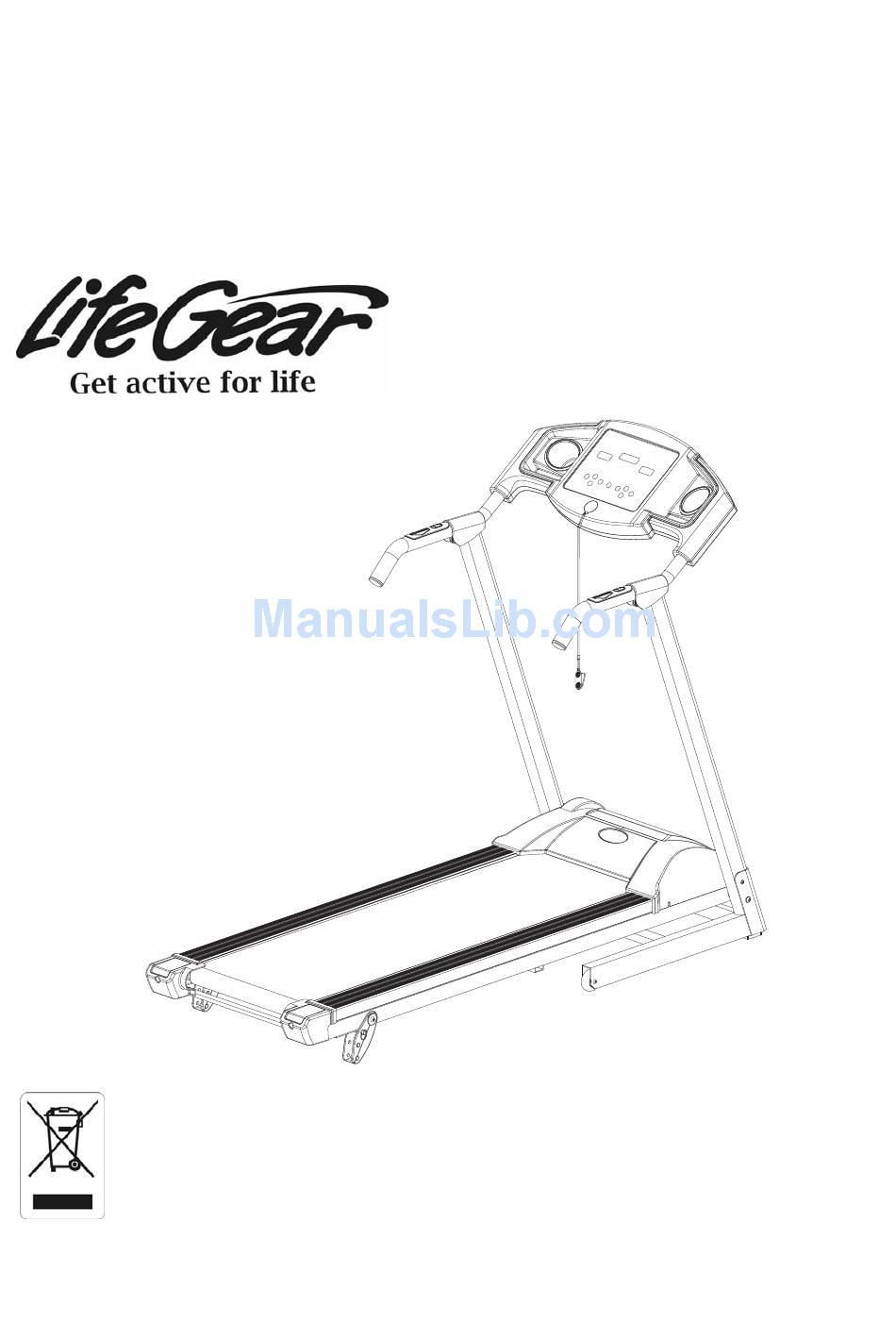

Walkfit programmable motorized treadmill
Hide thumbs
Table of Contents

Advertisement

Quick Links

WALKFIT PROGRAMMABLE
MOTORIZED TREADMILL
ITEM NO: 97530
OWNER'S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner's manual for future reference.
The specifications of this product may vary from this photo and are subject to change
without prior notice.
2015, Feb.

Advertisement

Table of Contents
loading

Related Manuals for Life Gear 97530

Summary of Contents for Life Gear 97530

  • Page 1 WALKFIT PROGRAMMABLE MOTORIZED TREADMILL ITEM NO: 97530 OWNER’S MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo and are subject to change without prior notice.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARRANTY ------------------------------------------------------------------------------ 2 IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 3 PARTS LIST -------------------------------------------------------------------------------- 5 HARDWARE AND TOOLS PACK ---------------------------------------------------- 6 ASSEMBLY COMPONENTS ---------------------------------------------------------- 6 OVERVIEW DRAWING ----------------------------------------------------------------- 7 ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 8 LIFTING UP & SETTING DOWN THE TREADMILL ----------------------------- 12 INCLINE ADJUSTMENT ---------------------------------------------------------------- 13 MOVING THE TREADMILL ------------------------------------------------------------ 13 OPERATING THE COMPUTER ------------------------------------------------------ 14...

  • Page 3: Warranty

    ONE YEAR LIMITED WARRANTY LifeGear Inc. warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's obligation under this warranty is limited to replacing or repairing free of charge, any parts which may prove to be defective under normal home use.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Basic precautions, including the following important safety instructions should always be followed when using this treadmill. Read all instructions before using this treadmill. DANGER: To reduce the risk of electric shock, always unplug the treadmill from the electrical outlet immediately after using and before cleaning, assembling, or servicing the treadmill.
  • Page 5 Always hold on to the handrails while using the treadmill. Always make sure the storage latch is in place when folding and moving the treadmill. Do not leave children who are under 12 years-old unsupervised near or on the treadmill. To disconnect, turn all controls to the off position, then remove plug from the wall outlet.

  • Page 6: Parts List

    PARTS LIST Description Description 001 Base Frame 032 Lock Pin 002 Main Frame 033 Motor 003R Right Handlebar Support Tube 034 Sensor Wire I (L=1000 mm) 003L Left Handlebar Support Tube 035 Sensor Wire II (L=1700 mm) 004 Handlebar Frame 036 Power Cord 005 Motor Bracket 037 Connect Wire (L=100 mm)

  • Page 7: Hardware And Tools Pack

    HARDWARE AND TOOLS PACK (46) Truss Socket Head (51) Truss Socket Head (53) Truss Socket Head Bolt M8x15 Bolt M8x45 Bolt M8x50 4 PCS 2 PCS 2 PCS (56) Flat Wash (58) Nut M8 Ø8.5xØ16xT1.5mm 2 PCS 8 PCS 5mm/6mm Allen Wrench Multi Hex Tool 1 PC 1 PC...

  • Page 8: Overview Drawing

    OVERVIEW DRAWING...

  • Page 9: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Step 1 Remove the treadmill from the carton and place it on a level flat surface. Please always use the aid of a second person when removing the treadmill from the carton. Lift both Right and Left Handlebar Support Tubes (3R, 3L) up. ․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․...
  • Page 10 nuts with the 5mm Allen Wrench and Multi Hex Tool provided. It is recommended to have a second person assist with this step. One person should hold the both Right/Left Handlebar Support Tubes (3R, 3L) in place while the other person tightens the bolts and nuts.
  • Page 11 Tool: 5mm/6mm Allen Wrench Step 3 Lift the Handlebar Frame (4) up and align bolt holes. Use two M8x45 Truss Socket Head Bolts (51) and two Ø8.5xØ16xT1.5mm Flat Washs (56) to secure the Handlebar Frame (4) onto the top ends of the Right/Left Handlebar Support Tubes (3R, 3L). Semi-tighten bolts with the 5mm Allen Wrench provided.
  • Page 12 Step 4 Install both Handlebar Adorners (17) onto the Handlebar Frame (4). Place the Safety Tether Key (63) onto the Computer Console (8). Assembly Components: (17) Handlebar Adorner (63) Safety Tether Key 2 PCS 1 PC ․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ Tool: 5mm/6mm Allen Wrench Step 5 The running belt has been adjusted to the running deck at the factory before it was shipped.

  • Page 13: Lifting Up & Setting Down The Treadmill

    LIFTING UP & SETTING DOWN THE TREADMILL LIFTING UP THE TREADMILL Firmly grasp the back end of the treadmill with both hands. Carefully lift the end of the treadmill up into the upright position until the Foot Lock Latch engages and securely locks the main frame into position.

  • Page 14: Incline Adjustment

    INCLINE ADJUSTMENT There are 3 incline angles that the Incline Adjuster can be set to. Place one hand on the rear end of the main frame, then lift the rear end of the main frame up and use the other hand to remove the Lock Pin.

  • Page 15: Operating The Computer

    OPERATING THE COMPUTER Flip the Master Power Switch that is located at the front of the treadmill to the ON position. The computer console will beep for 1 second before starting. Before beginning a workout session ensure that the Safety Tether Key is properly placed onto the Computer Console and the Safety Clip is securely attached to an article of your clothing.
  • Page 16 MODE: Press the MODE button to select different functions (H-1 time, H2 distance, or H3 calories) for setting exercise goals. Press the MODE button to select different pre-set training program (P-01 - P-12) mode. Press the MODE button to select different custom user program (U-1, U-2, or U-3) mode. Press the STOP/RESET button to quit the program.
  • Page 17 exercise. Time starts counting down from pre-set target time to 0:00 per 1 second backward. When the pre-set target time counts down to 0:00, the computer will beep to alert you and the treadmill will stop automatically. SPEED: Displays the current speed from the minimum 1.0 KPH to the maximum 13.0 KPH.
  • Page 18 TRAINING IN PROGRAM MODE: The computer offers 12 pre-set programs. You may select training programs in STOP mode before training. Press the MODE button on the computer console to select training program. The TIME window begins blinking. The initial pre-set target time is 30:00 minutes.
  • Page 19 P-10 INTERVAL SPEED (KPH) P-11 INTERVAL SPEED (KPH) P-12 INTERVAL SPEED (KPH) TRAINING IN CUSTOM USER PROGRAM MODE: There are 3 CUSTOM USER programs available for setting your own program. Press the MODE button until you see the screen display U-1, U-2, or U-3. The TIME window begins blinking.

  • Page 20: Care, Maintenance & Troubleshooting Guide

    CARE, MAINTENANCE & TROUBLESHOOTING GUIDE WARNING: To prevent electrical shock, please turn off and unplug the treadmill before cleaning or performing routine maintenance. CLEANING After each exercise, ensure that the unit is wiped down and any sweat is removed from the unit. The treadmill can be cleaned with a soft cloth and mild detergent.

  • Page 21: Belt Adjustment

    BELT ADJUSTMENT The running belt is pre-adjusted to the running deck at the factory, but after prolonged use it can stretch and require readjustment. To adjust the belt, turn on the main power switch of the treadmill and let the belt run at a speed of 8-10 KPH. Use the 6mm Allen Wrench provided to turn the rear roller adjustment bolts in order to centre the belt.

  • Page 22: Lubrication

    LUBRICATION Lubricating under the running belt will ensure superior performance and extend its life expectancy. After the first 25 hours of use (or 2-3 months) apply some lubricant, and repeat for every following 50 hours of use (or 5-8 months). How to check running belt for proper lubrication Lift one side of the running belt and feel the top surface of the running deck.

  • Page 23: Warm Up And Cool Down Routine

    WARM UP AND COOL DOWN ROUTINE The WARM-UP is an important part of any workout. The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before aerobic exercising. It should begin every session to prepare your body for more strenuous exercise by heating up and stretching your muscles, increasing your circulation and pulse rate, and delivering more oxygen to your muscles.
