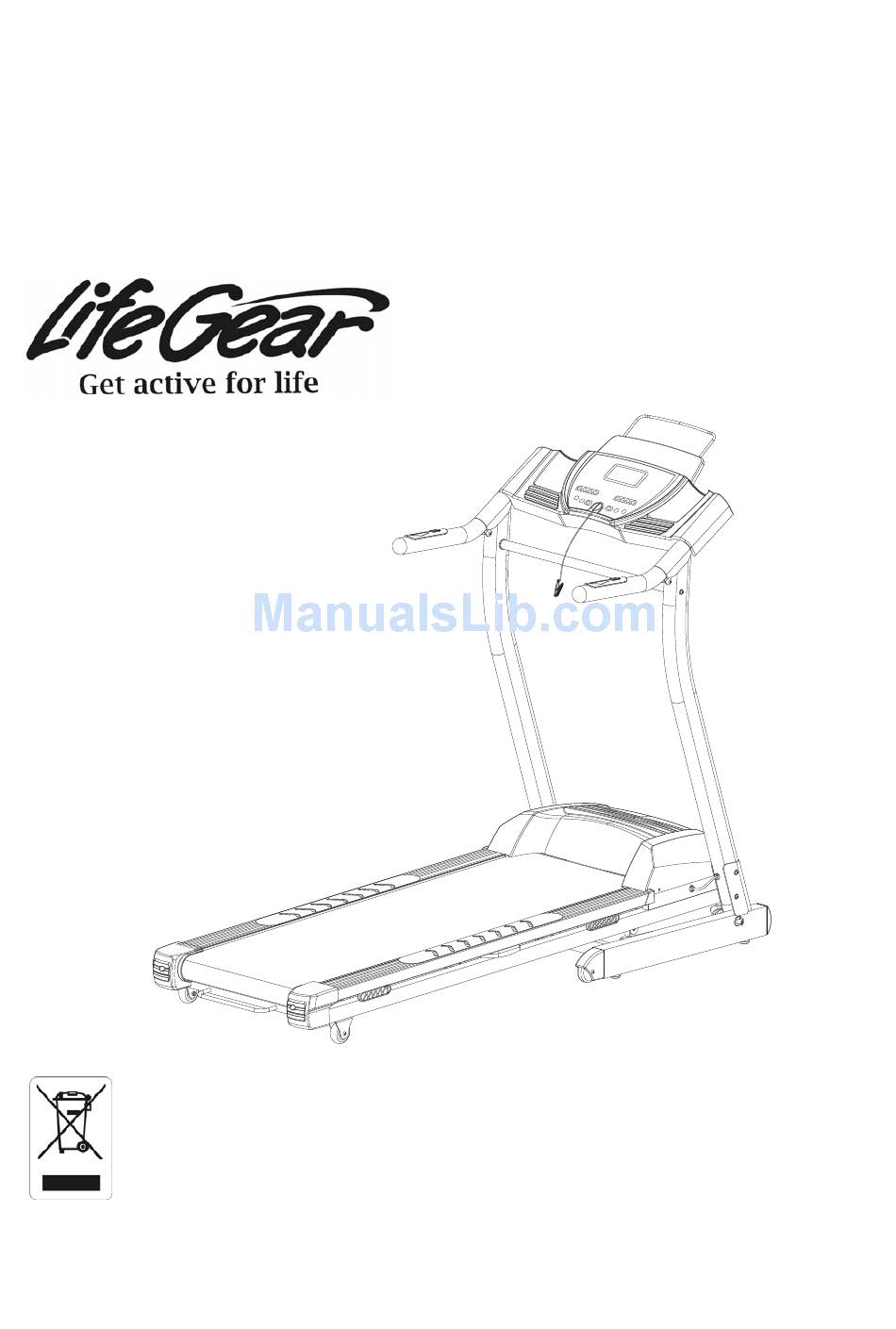

TRAVELLER PRO PROGRAMMABLE
MOTORIZED TREADMILL
ITEM NO: 98840
OWNER'S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner's manual for future reference.
The specifications of this product may vary from this photo and are subject to change
without prior notice.
w c/f 2014, Oct.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 98840 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Life Gear 98840

Summary of Contents for Life Gear 98840

  • Page 1 TRAVELLER PRO PROGRAMMABLE MOTORIZED TREADMILL ITEM NO: 98840 OWNER’S MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo and are subject to change without prior notice.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARRANTY ------------------------------------------------------------------------------ 2 IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 3 PARTS LIST -------------------------------------------------------------------------------- 5 HARDWARE AND TOOLS PACK ---------------------------------------------------- 6 ASSEMBLY COMPONENTS ---------------------------------------------------------- 7 OVERVIEW DRAWING ----------------------------------------------------------------- 8 ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 9 LIFTING UP & SETTING DOWN THE TREADMILL ----------------------------- 12 MOVING THE TREADMILL ------------------------------------------------------------ 13 OPERATING THE COMPUTER ------------------------------------------------------ 14 CARE, MAINTENANCE &...

  • Page 3: Warranty

    ONE YEAR LIMITED WARRANTY LifeGear Inc. warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's obligation under this warranty is limited to replacing or repairing free of charge, any parts which may prove to be defective under normal home use.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Basic precautions, including the following important safety instructions should always be followed when using this treadmill. Read all instructions before using this treadmill. DANGER: To reduce the risk of electric shock, always unplug the treadmill from the electrical outlet immediately after using and before cleaning, assembling, or servicing the treadmill.
  • Page 5 Always hold on to the handrails while using the treadmill. Always make sure the storage latch is in place when folding and moving the treadmill. Do not leave children who are under 12 years-old unsupervised near or on the treadmill. To disconnect, turn all controls to the off position, then remove plug from the wall outlet.

  • Page 6: Parts List

    PARTS LIST Description Qty No. Description 001 Base Frame 1 034 Spring Shock Absorber 002 Main Frame 1 035 Deck Bumper 003 Right Handlebar Support Tube 1 036 Self Tapping Screw ST4x16 004 Left Handlebar Support Tube 1 037L Left Anti Slip Pad 005 Incline Frame 1 037R Right Anti Slip Pad Hexagon Socket Head Cap Bolt...

  • Page 7: Hardware And Tools Pack

    PARTS LIST Description Qty No. Description Hand Pulse Sensor and Control 2 077 Flat Washer Ø8.5xØ22xT2.0 Buttons with Wire (L=500 mm) Handlebar Foam Grip 2 078 Binder Post & Bolt Set 2 Sets Ø37xØ45x315 Handlebar End Cap 2 079 Flat Washer Ø5xØ12xT1.0 Ø41xØ35x38 068 Safety Tether Key 1 080 Self Tapping Screw ST4x40...

  • Page 8: Assembly Components

    ASSEMBLY COMPONENTS (61) Handlebar Adorner (68) Safety Tether Key 2 PCS 1 PC...

  • Page 9: Overview Drawing

    OVERVIEW DRAWING...

  • Page 10: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Tool: 5mm Allen Wrench Double Open End Wrench Step 1 Remove the treadmill from the carton and place it on a level flat surface. Please always use the aid of a second person when removing the treadmill from the carton. Lift both Right/Left Handlebar Support Tubes (3, 4) up and align bolt holes.
  • Page 11 Tool: 5mm Allen Wrench Step 2 Lift both Handlebars (6) up and align bolt holes. Use two M8x60 Hexagon Socket Head Cap Bolts (41) to secure both Handlebars (6) onto the top ends of Right/Left Handlebar Support Tubes (3, 4). Semi-tighten bolts with the 5mm Allen Wrench provided.
  • Page 12 Step 3 Install both Handlebar Adorners (61) onto the Handlebars (6). Place the Safety Tether Key (68) onto the Computer (62). Assembly Components: (61) Handlebar Adorner (68) Safety Tether Key 2 PCS 1 PC Tool: 6mm Allen Wrench Step 4 The running belt has been adjusted to the running deck at the factory before it was shipped.

  • Page 13: Lifting Up & Setting Down The Treadmill

    LIFTING UP & SETTING DOWN THE TREADMILL LIFTING UP THE TREADMILL Firmly grasp the back end of the treadmill or large handle with both hands. Carefully lift the end of the treadmill up into the upright position until the Foot Lock Latch engages and securely locks the main frame into position.

  • Page 14: Moving The Treadmill

    MOVING THE TREADMILL Large Handle Transport Wheel Cap The unit can be carefully tilted onto its transport wheels for easy moving and storage. With the treadmill in the folded locked position (foot lock latch is engaged), firmly grasp the Large Handle with both hands and place one foot on the Transport Wheel Cap. Next, carefully tilt the treadmill back until it rolls freely on the transport wheels.

  • Page 15: Operating The Computer

    OPERATING THE COMPUTER Flip the Master Power Switch that is located at the front of the treadmill to the ON position. The computer console will beep for 1 second before starting. Before beginning a workout session ensure that the Safety Tether Key is properly placed onto the Computer Console and the Safety Clip is securely attached to an article of your clothing.
  • Page 16 COMPUTER BUTTON FUNCTIONS: START/STOP: Press the START/STOP button to start or stop the treadmill. SELECT: Press the SELECT button to select different training mode. SPEED UP: To make upward adjustments for pre-setting target training time, distance, or calories. To make upward adjustment for pre-setting training time in PROGRAM mode. To make upward adjustment for setting gender, age, height, and weight of user in BODY FAT program mode.
  • Page 17 MODE: Tap the MODE button to select different training mode. SPEED+: To make upward adjustments for pre-setting target training time, distance, or calories. To make upward adjustment for pre-setting training time in PROGRAM mode. To make upward adjustment for setting gender, age, height, and weight of user in BODY FAT program mode.
  • Page 18 backward. When the pre-set target time counts down to 0:00, the computer will beep to alert you and the treadmill will stop automatically. SPEED: Displays the current speed from the minimum 1.0 KPH to the maximum 18.0 KPH. You may increase or decrease the speed by pressing the SPEED UP/SPEED DOWN button on the computer console or tap SPEED+/SPEED- button on the touchscreen.
  • Page 19 button on the touchscreen to increase or decrease the running speed during exercise. Calories start counting down from pre-set target calories to 0. When the pre-set target calories count down to 0, the computer will beep to alert you and the treadmill will stop automatically.
  • Page 20 P-05 INTERVAL SPEED (KPH) INTERVAL SPEED (KPH) P-06 INTERVAL SPEED (KPH) INTERVAL SPEED (KPH) P-07 INTERVAL SPEED (KPH) INTERVAL SPEED (KPH) P-08 INTERVAL SPEED (KPH) INTERVAL SPEED (KPH) P-09 INTERVAL SPEED (KPH) INTERVAL SPEED (KPH) P-10 INTERVAL SPEED (KPH) INTERVAL SPEED (KPH) P-11 INTERVAL...
  • Page 21 TRAINING IN BODY FAT PROGRAM MODE: In STOP mode before training. Press the SELECT button on the computer console or tap the PROG. (PROGRAM) button on the touchscreen to select body fat program until the screen displays FAT and F-1 (gender). Press the SPEED UP/SPEED DOWN button on the computer console or tap SPEED+/SPEED- button on the touchscreen to set user's gender (01 indicates male and 02 indicates female).
  • Page 22 START button on the touchscreen to start exercise, the screen will countdown 3 seconds before the running belt starts moving. You may press the SPEED UP/SPEED DOWN button on the computer console or tap SPEED+/SPEED- button on the touchscreen to increase or decrease the running speed during exercise.
  • Page 23 Maximum Maximum Maximum Heart Heart Heart Rate Rate Rate TRAINING IN DEIT MODE: In STOP mode before training. Press the SELECT button on the computer console or tap the MODE button on the touchscreen to select DIET mode until the screen displays d01. Press the SPEED UP/SPEED DOWN button on the computer console or tap SPEED+/SPEED- button on the touchscreen to select different training mode.
  • Page 24 d04 (Improve Exercise d05 (Improve Sleep) d06 (Relieve Stress) Capacity) Speed Incline Minutes Speed Incline Minutes Speed Incline Minutes d07 (Hill-Climbing Mode) d08 (Enhance Immunity) Speed Incline Minutes Speed Incline Minutes...

  • Page 25: Care, Maintenance & Troubleshooting Guide

    CARE, MAINTENANCE & TROUBLESHOOTING GUIDE WARNING: To prevent electrical shock, please turn off and unplug the treadmill before cleaning or performing routine maintenance. CLEANING After each exercise, ensure that the unit is wiped down and any sweat is removed from the unit. The treadmill can be cleaned with a soft cloth and mild detergent.

  • Page 26: Belt Adjustment

    BELT ADJUSTMENT The running belt is pre-adjusted to the running deck at the factory, but after prolonged use it can stretch and require readjustment. To adjust the belt, turn on the main power switch of the treadmill and let the belt run at a speed of 2-3 KPH. Use the 6mm Allen Wrench provided to turn the rear roller adjustment bolts in order to centre the belt.

  • Page 27: Lubrication

    LUBRICATION Lubricating under the running belt will ensure superior performance and extend its life expectancy. After the first 25 hours of use (or 2-3 months) apply some lubricant, and repeat for every following 50 hours of use (or 5-8 months). How to check running belt for proper lubrication Lift one side of the running belt and feel the top surface of the running deck.

  • Page 28: Warm Up And Cool Down Routine

    WARM UP AND COOL DOWN ROUTINE The WARM-UP is an important part of any workout. The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before aerobic exercising. It should begin every session to prepare your body for more strenuous exercise by heating up and stretching your muscles, increasing your circulation and pulse rate, and delivering more oxygen to your muscles.
  • Page 29 QUADRICEPS STRETCH With one hand against a wall for balance, reach behind you and pull your right foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with left foot. INNER THIGH STRETCH Sit with the soles of your feet together and your knees pointing outward.
