Rear Panel
Features and
Connections
This section describes the rear panel features and how to connect the cables.

Rear Panel Features

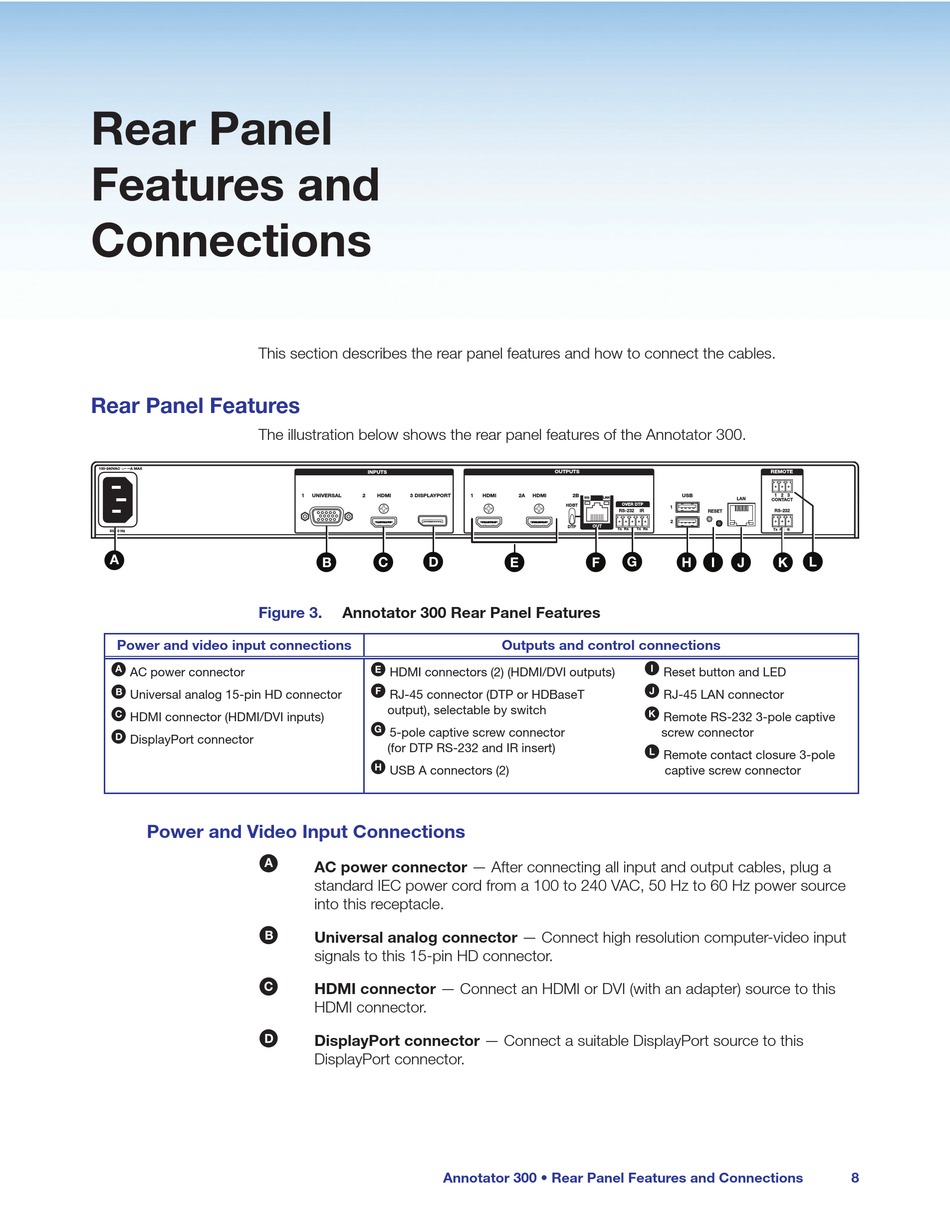

The illustration below shows the rear panel features of the Annotator 300.
100-240VAC --A MAX
50/60 Hz
A
Figure 3.

Power and video input connections

A
AC power connector
B
Universal analog 15-pin HD connector
C
HDMI connector (HDMI/DVI inputs)
D
DisplayPort connector
Power and Video Input Connections
A
B
C
D
INPUTS
1 UNIVERSAL 2 HDMI 3 DISPLAYPORT 1
B C D
Annotator 300 Rear Panel Features
E
HDMI connectors (2) (HDMI/DVI outputs)
F
RJ-45 connector (DTP or HDBaseT
output), selectable by switch
G
5-pole captive screw connector
(for DTP RS-232 and IR insert)
H
USB A connectors (2)
AC power connector — After connecting all input and output cables, plug a
standard IEC power cord from a 100 to 240 VAC, 50 Hz to 60 Hz power source
into this receptacle.
Universal analog connector — Connect high resolution computer-video input
signals to this 15-pin HD connector.
HDMI connector — Connect an HDMI or DVI (with an adapter) source to this
HDMI connector.
DisplayPort connector — Connect a suitable DisplayPort source to this
DisplayPort connector.
Annotator 300 • Rear Panel Features and Connections
OUTPUTS
HDMI 2A HDMI 2B
SIG LINK
OVER DTP
HDBT
RS-232 IR
HDBT
OUT
DTP
Tx Rx G Tx Rx
E F G
Outputs and control connections
I
J
K
screw connector
L
REMOTE
USB 1 2 3
LAN
CONTACT
1
RS-232
RESET
2
Tx Rx G
H I J K L
Reset button and LED
RJ-45 LAN connector
Remote RS-232 3-pole captive
Remote contact closure 3-pole
captive screw connector
