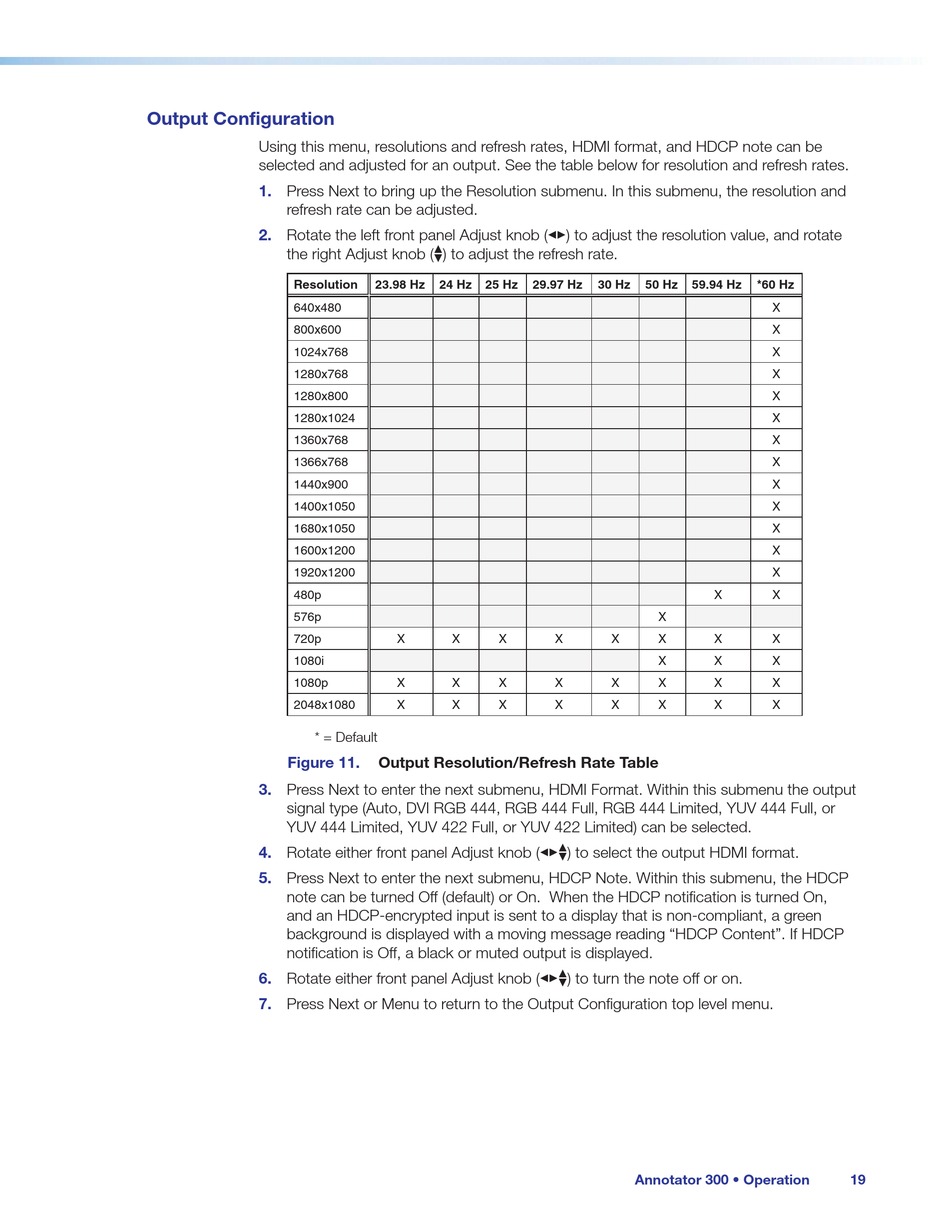

Output Configuration

Using this menu, resolutions and refresh rates, HDMI format, and HDCP note can be
selected and adjusted for an output. See the table below for resolution and refresh rates.
1. Press Next to bring up the Resolution submenu. In this submenu, the resolution and
refresh rate can be adjusted.
2. Rotate the left front panel Adjust knob ([) to adjust the resolution value, and rotate
the right Adjust knob ({) to adjust the refresh rate.
Resolution
640x480
800x600
1024x768
1280x768
1280x800
1280x1024
1360x768
1366x768
1440x900
1400x1050
1680x1050
1600x1200
1920x1200
480p
576p
720p
1080i
1080p
2048x1080
* = Default
Figure 11.
3.
Press Next to enter the next submenu, HDMI Format. Within this submenu the output
signal type (Auto, DVI RGB 444, RGB 444 Full, RGB 444 Limited, YUV 444 Full, or
YUV 444 Limited, YUV 422 Full, or YUV 422 Limited) can be selected.
4. Rotate either front panel Adjust knob ([{) to select the output HDMI format.
5. Press Next to enter the next submenu, HDCP Note. Within this submenu, the HDCP
note can be turned Off (default) or On. When the HDCP notification is turned On,
and an HDCP-encrypted input is sent to a display that is non-compliant, a green
background is displayed with a moving message reading "HDCP Content". If HDCP
notification is Off, a black or muted output is displayed.
6. Rotate either front panel Adjust knob ([{) to turn the note off or on.
7. Press Next or Menu to return to the Output Configuration top level menu.
23.98 Hz 24 Hz 25 Hz 29.97 Hz
X X X
X X X
X X X
Output Resolution/Refresh Rate Table
30 Hz 50 Hz 59.94 Hz
X
X
X X X X
X X
X X X X
X X X X
Annotator 300 • Operation
*60 Hz
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
