5.9
MMA welding
Risk of being crushed or burnt.
When replacing spent or new stick electrodes
•
Switch off machine at the main switch
•
Wear appropriate safety gloves
•
Use insulated tongs to remove spent stick electrodes or to move welded workpieces and
•
Always put the electrode holder down on an insulated surface.
5.9.1
Connecting the electrode holder and workpiece lead
The polarity depends on the manufacturer instructions given on the filler material
packaging.
5
Item
Symbol Description
1
2
3
4
5
099-005214-EW501
19.05.2011
2
1
0
Workpiece
Connection socket, "+" welding current
•
MMA welding:
"-" welding current connection socket
•
MMA welding:
Park socket, polarity selection plug
Retainer for the polarity selection plug in MMA mode or for transport.
Electrode holder
Design and function
CAUTION
NOTE
3
4

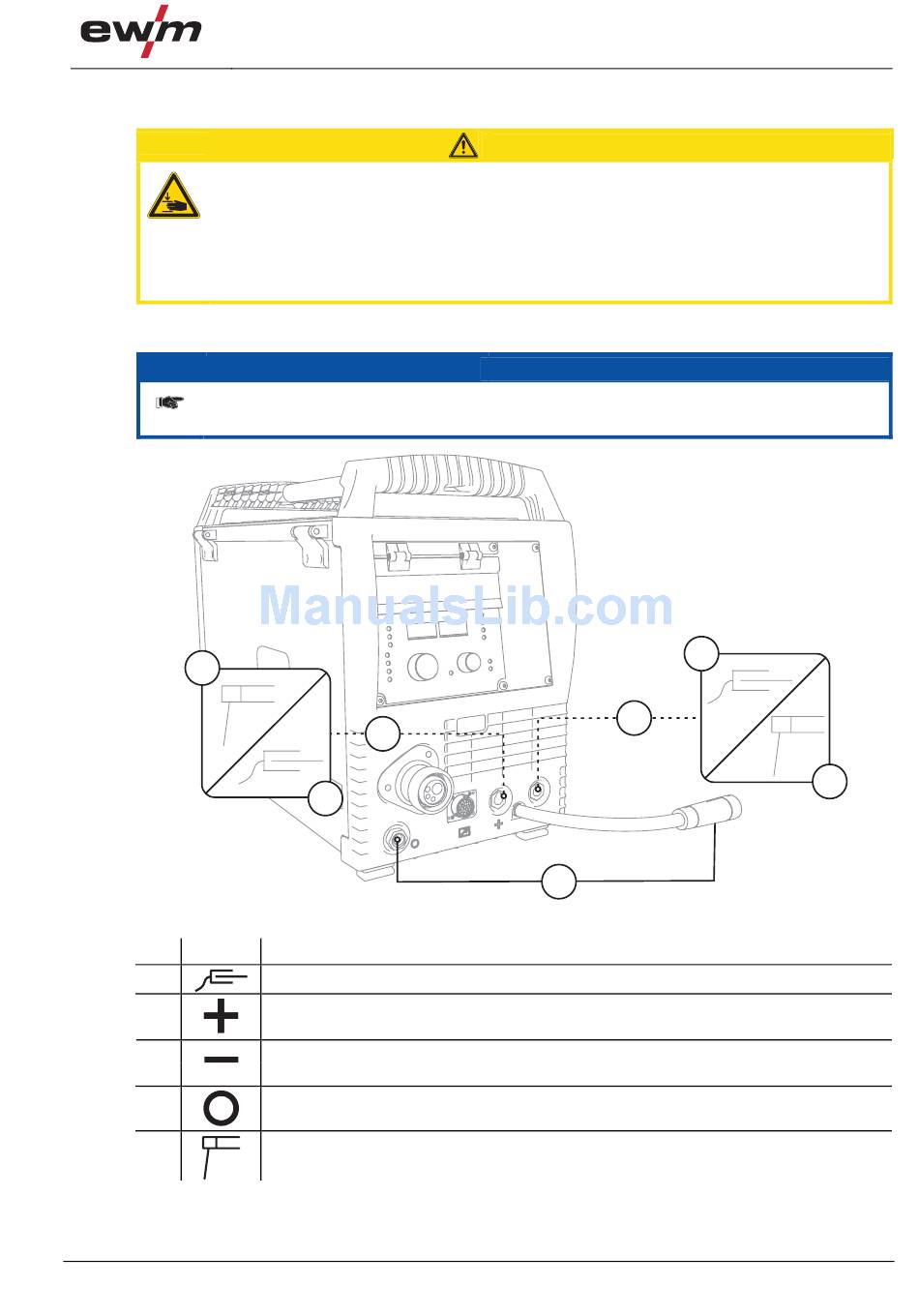

Figure 5-15
Workpiece connection
electrode holder connection
MMA welding
1
5
43
