Design and function
MIG/MAG welding
5.7.6

Welding task selection

5.7.6.1

Basic welding parameters

Operating
element
GMAW MIG / MAG
5.7.6.2

Operating mode

Operating
element
The operating point is set with the wire speed and arc length rotary dials.
The operating point setting can also be specified using accessory components such as remote control,
welding torch, etc.
5.7.6.3

Setting the operating point (welding output)

The M3.77 control works according to the twin-knob operation principle. To set the operating point, only
the wire speed and the welding voltage need to be set according to the material and the electrode
diameter.
Operating
element
m/min
5.7.6.4

Choke effect / dynamics

Display
34
Action Result
Welding process selection
Signal light
Action Result
Operating mode selection
The signal light indicates the selected operating
mode.
Action Result
Wire speed setting
0,5 bis 24 m/min
Welding voltage setting
10 V bis 49,8 V
DY N
Setting/selection
Dynamics setting
40: Arc harder and narrower
-40: Arc softer and wider
on.
GMAW MIG / MAG
Non-latched operation
Latched operation
m /m in

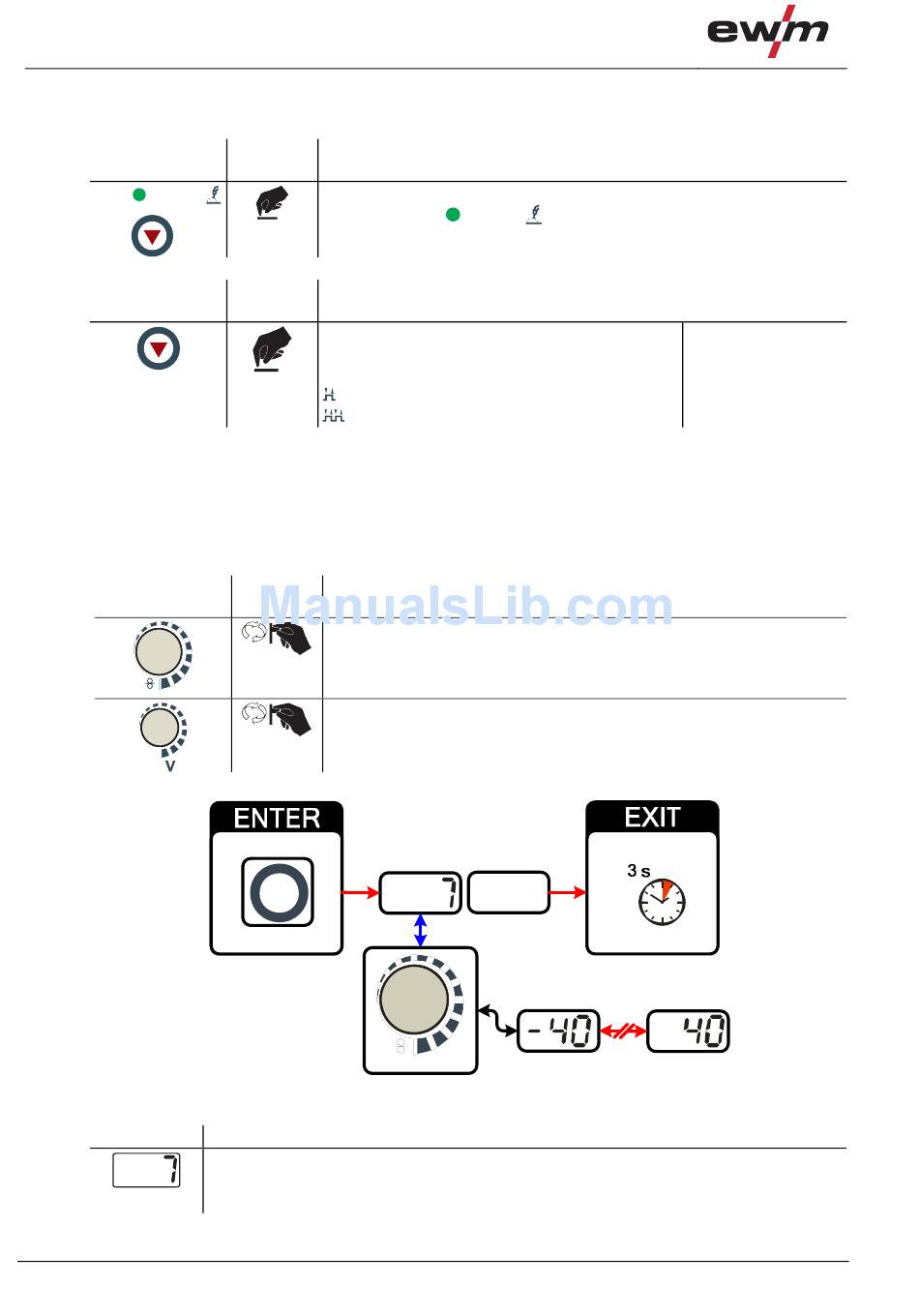

Figure 5-10
No change
