Gas Test; Rinse Tube Package" Function - EWM Taurus 335 Basic S KGE Operating Instructions Manual

Item Symbol Description
1
2
3
4
• Place the shielding gas cylinder into the relevant cylinder bracket.
• Secure the shielding gas cylinder using a securing chain.
• Tighten the pressure regulator screw connection on the gas bottle valve to be gas-tight.
• Tighten gas hose on pressure reducer to be gas tight.
• Fit the gas hose and G1/4" crown nut onto the relevant connection on the welding machine, and fit the
wire feed unit (if present on this version).
5.8.2

Gas test

• Slowly open the gas cylinder valve.
• Open the pressure reducer.
• Switch on the power source at the main switch.
• Initiate gas test function on the machine control.
• Set the relevant gas quantity for the application on the pressure reducer.
• The gas test is triggered on the machine control by pressing the
Shielding gas flows for around 25 seconds or until the button is pressed again.
• The gas test is triggered on the machine control by pressing the
Shielding gas flows for around 25 seconds or until the button is pressed again.
5.8.3

"Rinse tube package" function

Operating
Element
099-005214-EW501
19.05.2011
0
Pressure regulator
Shielding gas cylinder
Output side of the pressure regulator
Cylinder valve
Action Result
Select rinse tube package.
Shielding gas flows continuously until the Gas Test button is pressed
5 s
again.
Design and function

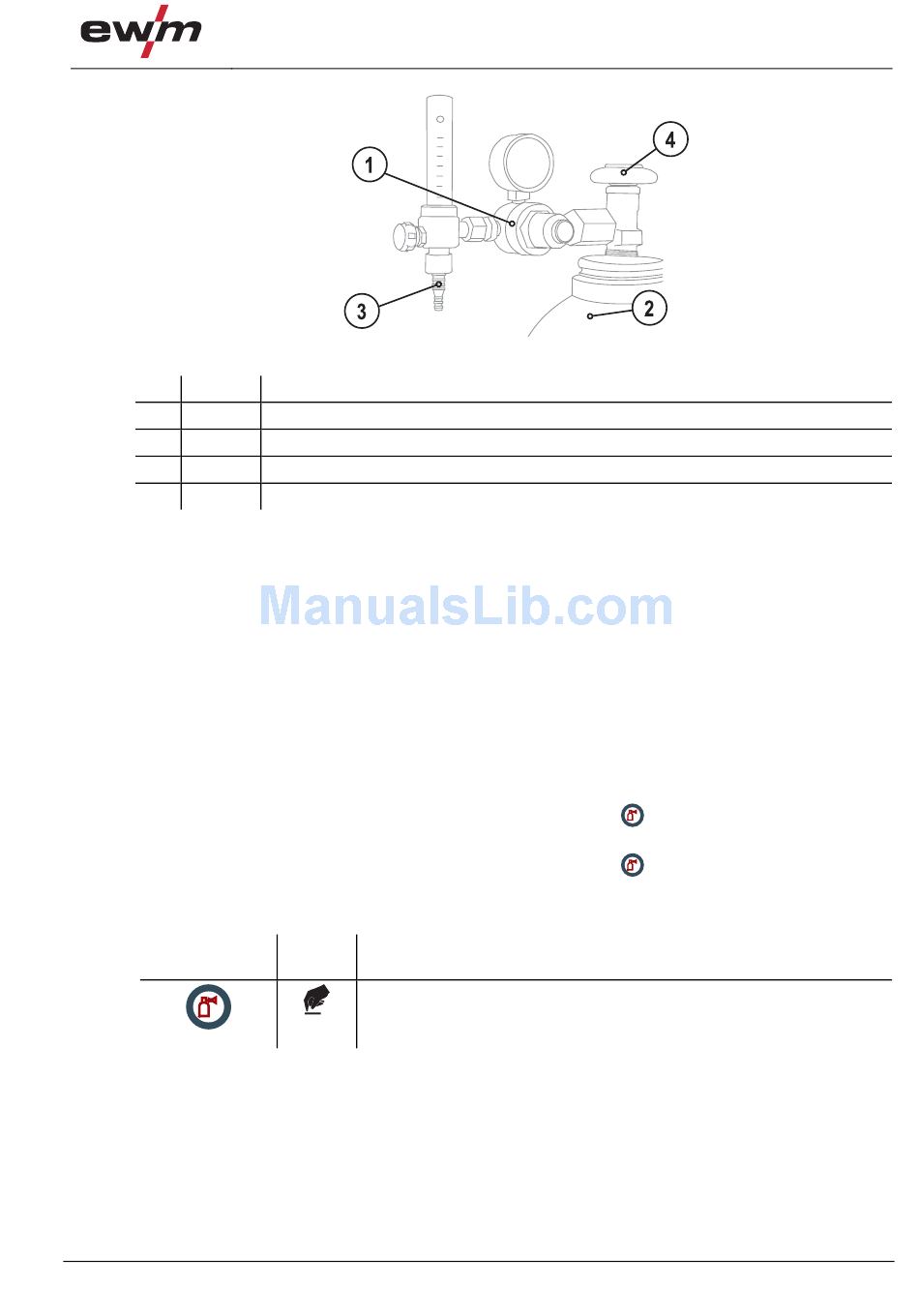

Figure 5-14
button briefly.
button briefly.
Shielding gas supply
41
