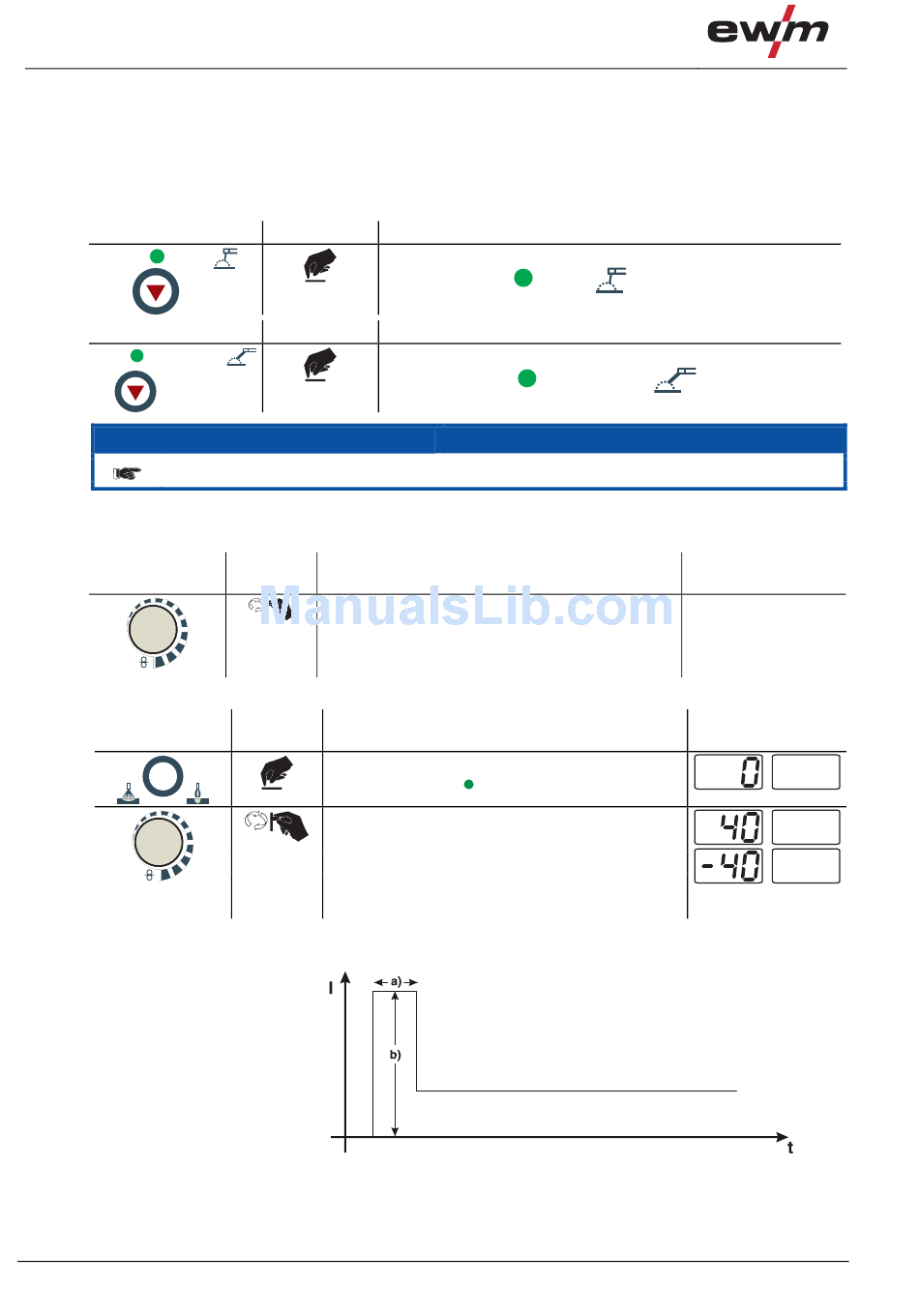

Design and function
MMA welding
• Insert cable plug of the electrode holder into either the "+" or "-" welding current connection socket and
lock by turning to the right.
• Insert cable plug of the workpiece lead into either the "+" or "-" welding current connection socket and
lock by turning to the right.
• Insert the polarity selection plug in the park socket and lock in place by turning to the right.
5.9.2

Welding task selection

Operating element
MMA E-HAND
Operating element
MMAG FUGENHOBELN
Special electrode holders and carbon electrodes are required for air arc gouging.
5.9.3

Welding current setting

The welding current is normally set using the "Wire speed" rotary dial.
Operating
element
m/min
5.9.4

Arcforce

Operating
element
DYN
- +
m/min
5.9.5

Hotstart

The hotstart device improves the ignition of the stick electrodes using an increased ignition current.
a) = Hotstart time
b) = Hotstart current
I = Welding current
t = Time
44
Action Result
Welding process selection
Signal light
Action Result
Welding process selection
Signal light
Action Result
Welding current is set
Action Result
Select arcforcing welding parameter
LED for the button
Arcforcing setting for electrode types:
(Setting range -40 to 40)
Negative values
Values around zero Basic
Positive values
MMA E-HAND
MMAG FUGENHOBELN
NOTE
is on.
Rutile
Cellulose
Figure 5-16
on.
on.
Displays
Setpoint setting
Display
