Installing The Rudder Pushrod - Phoenix Model CLASSIC-EP Instruction Manual

40

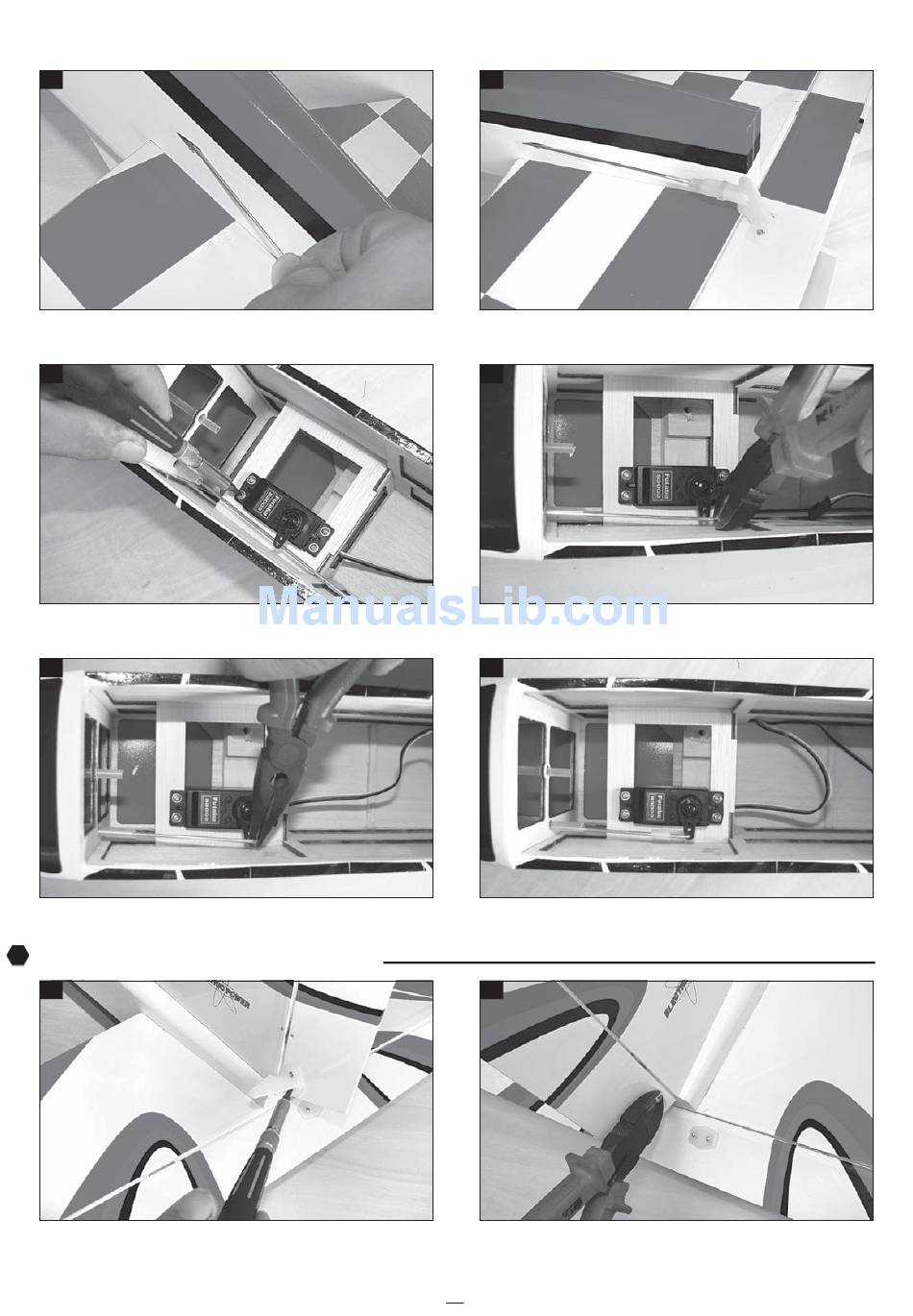

Insert the elevator pushrod into the fuselage.
42
Install the elevator servo.
44
Bend "L" the elevator pushrod.
5

Installing the rudder pushrod.

Installing the rudder pushrod.
46
Install the rudder control horn.
41
Attach the clevis to the control horn.
43
Cut away the elevator pushrod.
45
Attach the nylon clasp to the servo arm.
47
Cut away the screw.
7
