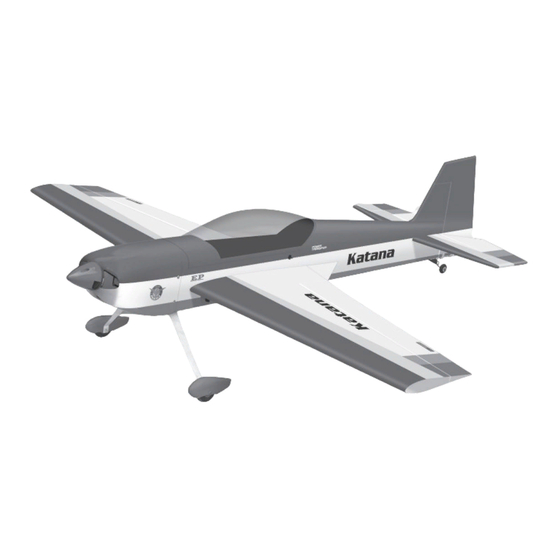

- Page 1 Instruction Manual KATANA-EP Wingspan : 1260 mm (49.6 in) Length : 1262 mm (49.7 in) Weight : 1600g - 2200g Radio : 4 channel/ 4mini servo Motor : 2826 Axi motor...
-
Page 2: Instruction Manual
Instruction Manual KATANA-EP KIT CONTENTS: We have organized the parts as they come out of the box for better identification during assembly. We recommend that you regroup the parts in the same manner. This will ensure you have all of parts required before you begin assembly... -
Page 3: Installing The Aileron Servo
Instruction Manual KATANA-EP Installing the aileron servo Install the aileron servo. Glue the hinges by C.A glue. Remove the covering. Mark the holes from the control Secure the control horn. Secure the control horn. horn onto the bottom of the aileron and INLINE with the servo arm. - Page 4 Instruction Manual KATANA-EP Installing the horizontal and the vertical Make the center line onto the Glue the elevator hinge by C.A glue. Remove the covering. stabilizer. A=A-1 A=A-1 Make a slot for the rudder hinge. Insert the horizontal into the fuselage.
- Page 5 Instruction Manual KATANA-EP Mark the shape of the fuselage onto Remove the covering. Insert the vertical into the fuselage. the vertical. a1 = a2 Check the vertical. Glue the vertical using the epoxy glue. Installing the servo of the elevator Remove the covering.
-
Page 6: Installing The Rudder Servo
Instruction Manual KATANA-EP Make the same way for the second Insert the nylon snap keeper. elevator servo. Installing the rudder servo Remove the covering. Secure the rudder servo. Install the control horn. Secure the control horn. Install the nylon horn. -
Page 7: Installing The Landing Gear
Instruction Manual KATANA-EP Installing the landing gear The tail gear set. Install the wheel. Install the nylon keeper. Secure the tail gear. Secure the nylon keeper. Remove the covering. The main gear set. Install the wheel pant. Secure the main gear. - Page 8 Instruction Manual KATANA-EP Glue the wing flat by C.A glue. Secure the wing to the fuselage. Install the receiver, battery, switch..Install the canopy.
-
Page 9: Control Throws
Instruction Manual KATANA-EP BALANCING CONTROL THROWS 1. It is critical that your airplane be balanced correctly. 1. We highly recommend setting up a plane using the Improper balance will cause your plane to lose control throws listed. control and crash. - Page 10 Instruction Manual KATANA-EP I/C FLIGHT GUIDELINES Operate the control sticks on the When ready to fly, first extend the transmitter and check that the control transmitter aerial. surfaces move freely and in the ALWAYS land the model INTO the CORRECT directions.
