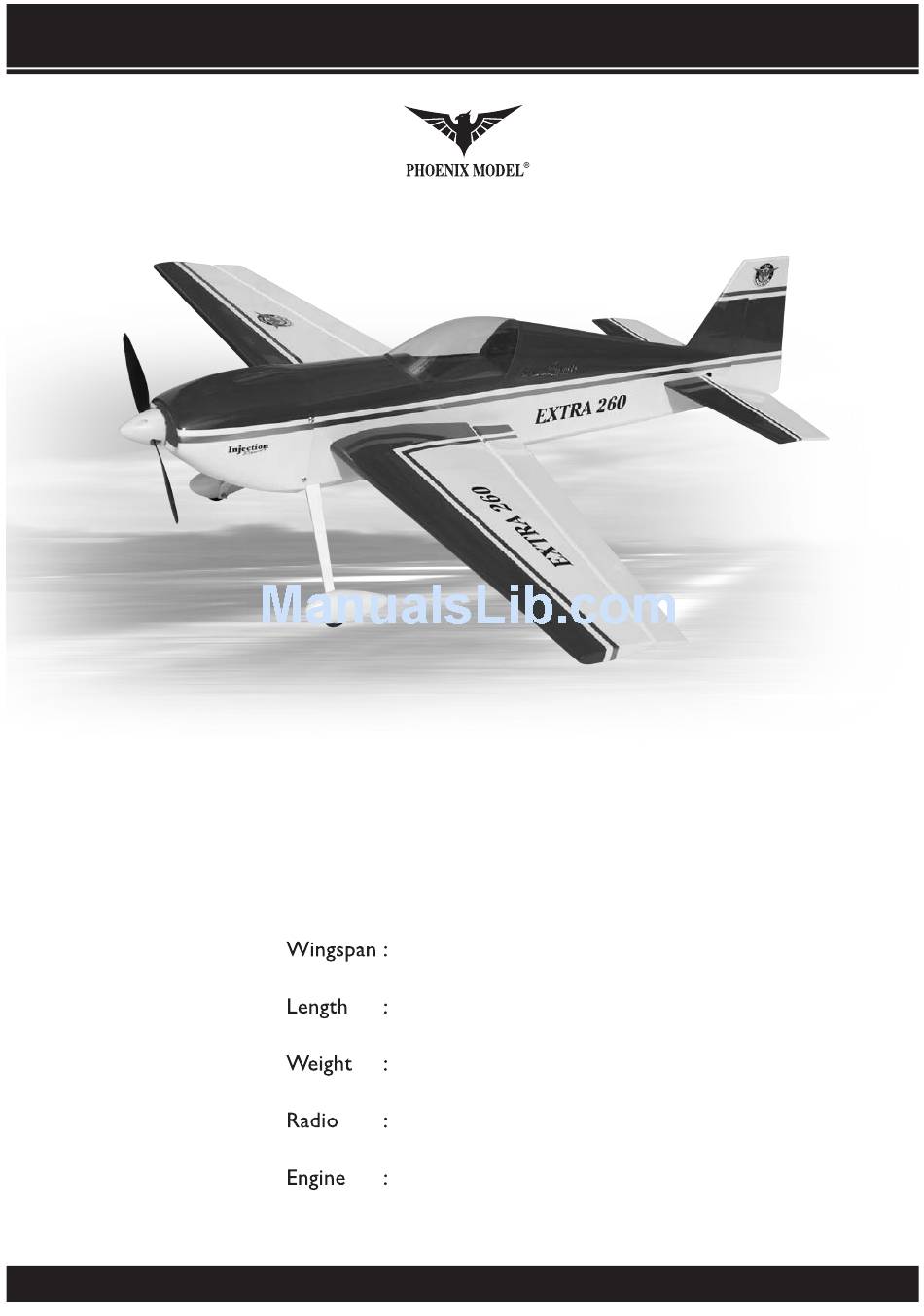

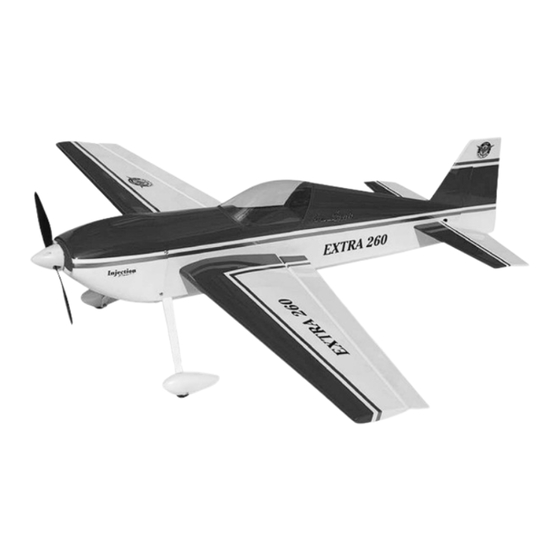

- Page 1 Instruction Manual EXTRA 260-EP 1075mm (42.32 in) 1000mm (39.37 in) 1100gr - 1400gr 4 channel - 4 mini servo Axi motor 2820...
-
Page 2: Motor Mount Assembly
Instruction Manual EXTRA 260-EP KIT CONTENTS: We have organized the parts as they come out of the box for better identification during assembly. We recommend that you regroup the parts in the same manner. This will ensure you have all of parts required before you begin assembly... -
Page 3: Installing The Wing
Instruction Manual EXTRA 260-EP Installing the wing: Glue the aileron hinge by C.A glue. Remove the covering. Install the aileron servo. Drill two holl for the aileron control horn. Install the control horn. Secure the clevis. Insert the silicone tube. - Page 4 Instruction Manual EXTRA 260-EP Mark the shape of the fuselage onto the Insert the horizontal to the fuselage. Check the elevator. elevator. Glue the horizontal to the fuselage by Remove the covering. Glue the rudder hinge by C.A glue. Epoxy.
-
Page 5: Installing The Landing Gear
Instruction Manual EXTRA 260-EP Installing the landing gear: The landing gear set. Prepare the wheel pant. Install the wheel. Remove the covering. Install the landing gear. The tail gear set. Make the slot for the tail gear. Glue the wood collar to the gear. -
Page 6: Installing The Rudder Servo
Instruction Manual EXTRA 260-EP Cut away the rod. Bend L the rod. Install the nylon snap keeper. Installing the rudder servo: Install the rudder servo. Install the control horn. Insert the clevis to the rod. Insert the silicon tube to the clevis. - Page 7 Instruction Manual EXTRA 260-EP Installing the motor,receiver,battery: Install the motor. Secure the cowl. Install the spinner (not included in the kit). Install the wing. Receiver and battery.
-
Page 8: Control Throws
Instruction Manual EXTRA 260-EP BALANCING CONTROL THROWS 1. It is critical that your airplane be balanced correctly. 1. We highly recommend setting up a plane using the Improper balance will cause your plane to lose control throws listed. control and crash.
