Ribbon Supply Hub

Removal:

1. Remove the Thermal Transfer Assembly; see Section 4.5.

2. Remove the Screw and Metal Washer that secures the Ribbon Supply Hub to the Housing.

3. Remove the Ribbon Supply Hub and Nylon Washer from the Housing.

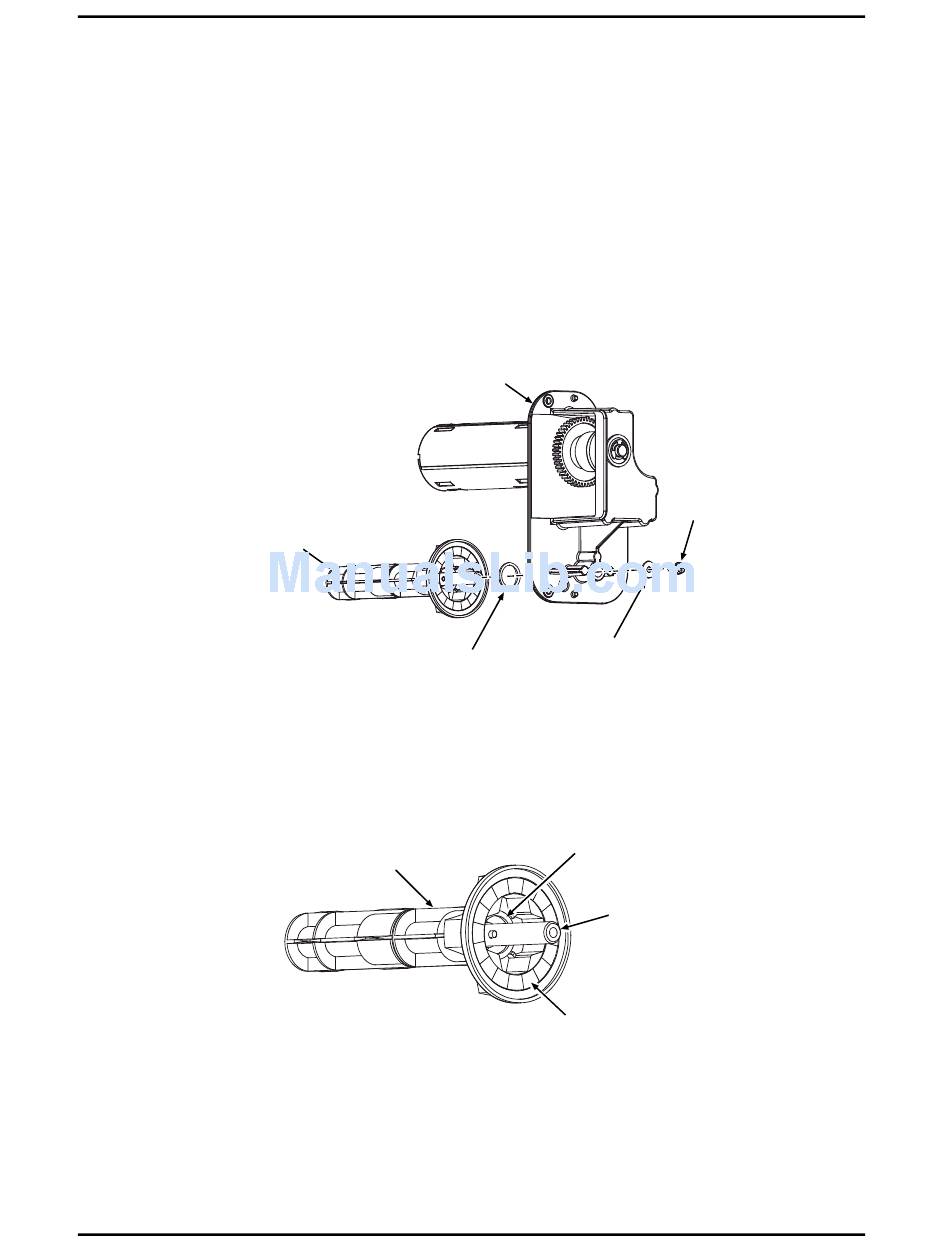

Ribbon

Supply Hub

Replacement:

1. Place the Nylon Washer over the Shaft into the Ribbon Supply Hub housing.

2. Slide the Ribbon Supply Hub shaft into the Housing.

Removal and Replacement

Housing

Nylon

Washer

Ribbon

Supply Hub

4-15

Screw

Metal

Washer

Nylon

Washer

Shaft

Timing

Disk

Table of Contents

Table of Contents
