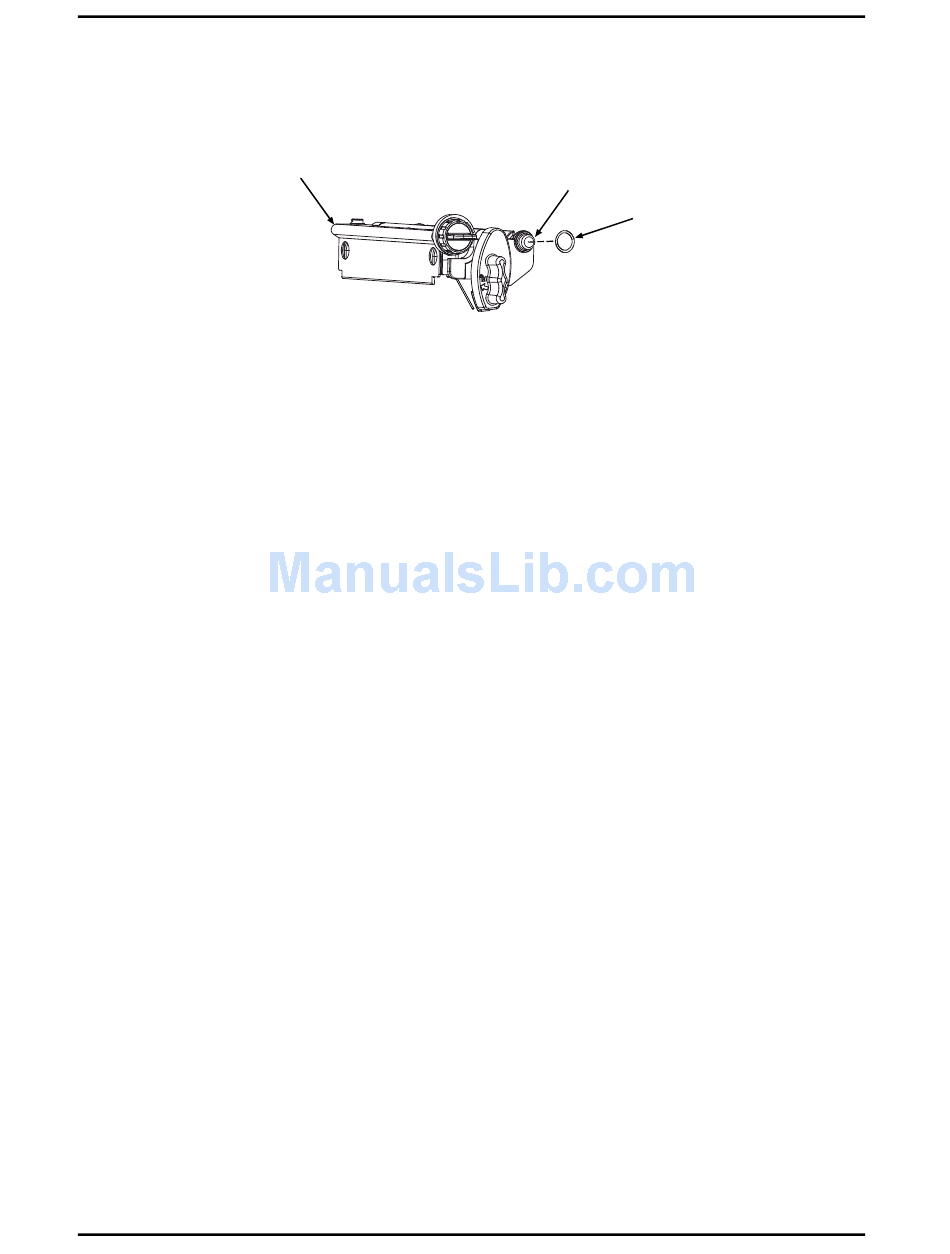

3. While holding the spring-loaded Printhead Assembly in the Centerplate bushing, place the Wavy
Washer onto the (opposite) Printhead Assembly Boss.
Printhead
Assembly
4. Insert the Ribbon Idler shaft into the Centerplate bushing.
5. Reinstall the End Cap onto the Extrusion to captivate the Printhead Assembly Boss and Ribbon
Idler shaft then secure the End Cap with the two Screws.
6. Test the Printhead Assembly for correct movement and latching; also, check the Ribbon Idler for
proper rotation.
7. Reinstall the Printhead; see Section 4.4.
Removal and Replacement
4-10
Boss
Wavy
Washer
