Displayed Message
TOP OF FORM FAULT
VERIFIER FAULT

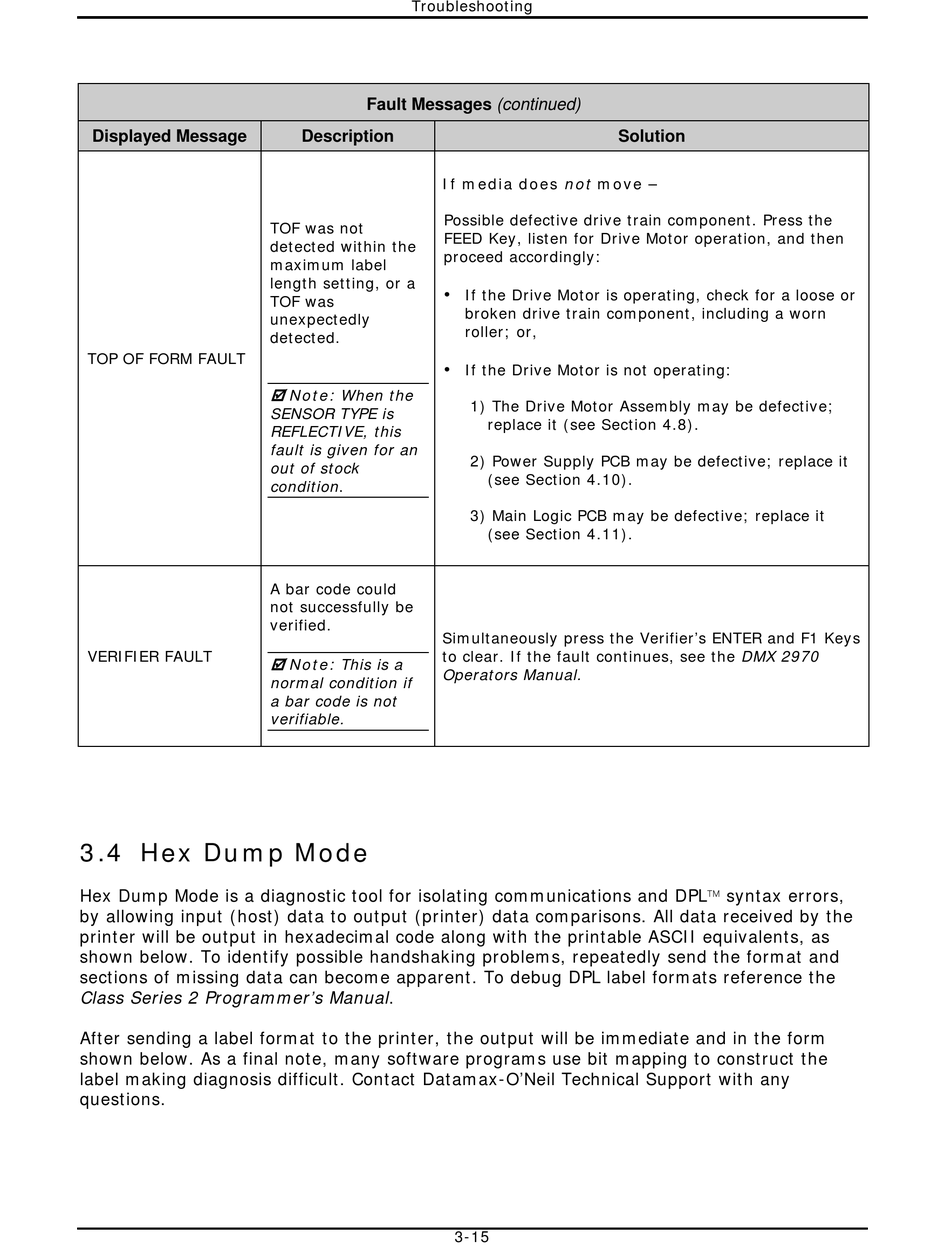

3.4 Hex Dump Mode

Hex Dump Mode is a diagnostic tool for isolating communications and DPL syntax errors,
by allowing input (host) data to output (printer) data comparisons. All data received by the
printer will be output in hexadecimal code along with the printable ASCII equivalents, as
shown below. To identify possible handshaking problems, repeatedly send the format and
sections of missing data can become apparent. To debug DPL label formats reference the
Class Series 2 Programmer's Manual.
After sending a label format to the printer, the output will be immediate and in the form
shown below. As a final note, many software programs use bit mapping to construct the
label making diagnosis difficult. Contact Datamax-O'Neil Technical Support with any
questions.
Troubleshooting
Fault Messages (continued)
Description
If media does not move –
Possible defective drive train component. Press the
TOF was not
FEED Key, listen for Drive Motor operation, and then
detected within the
proceed accordingly:
maximum label
length setting, or a
•
TOF was
unexpectedly
detected.
•
Note: When the

SENSOR TYPE is
REFLECTIVE, this
fault is given for an
out of stock
condition.
A bar code could
not successfully be
verified.
Simultaneously press the Verifier's ENTER and F1 Keys
to clear. If the fault continues, see the DMX 2970
Note: This is a

Operators Manual.
normal condition if
a bar code is not
verifiable.
Solution
If the Drive Motor is operating, check for a loose or
broken drive train component, including a worn
roller; or,
If the Drive Motor is not operating:
1) The Drive Motor Assembly may be defective;
replace it (see Section 4.8).
2) Power Supply PCB may be defective; replace it
(see Section 4.10).
3) Main Logic PCB may be defective; replace it
(see Section 4.11).
3-15
