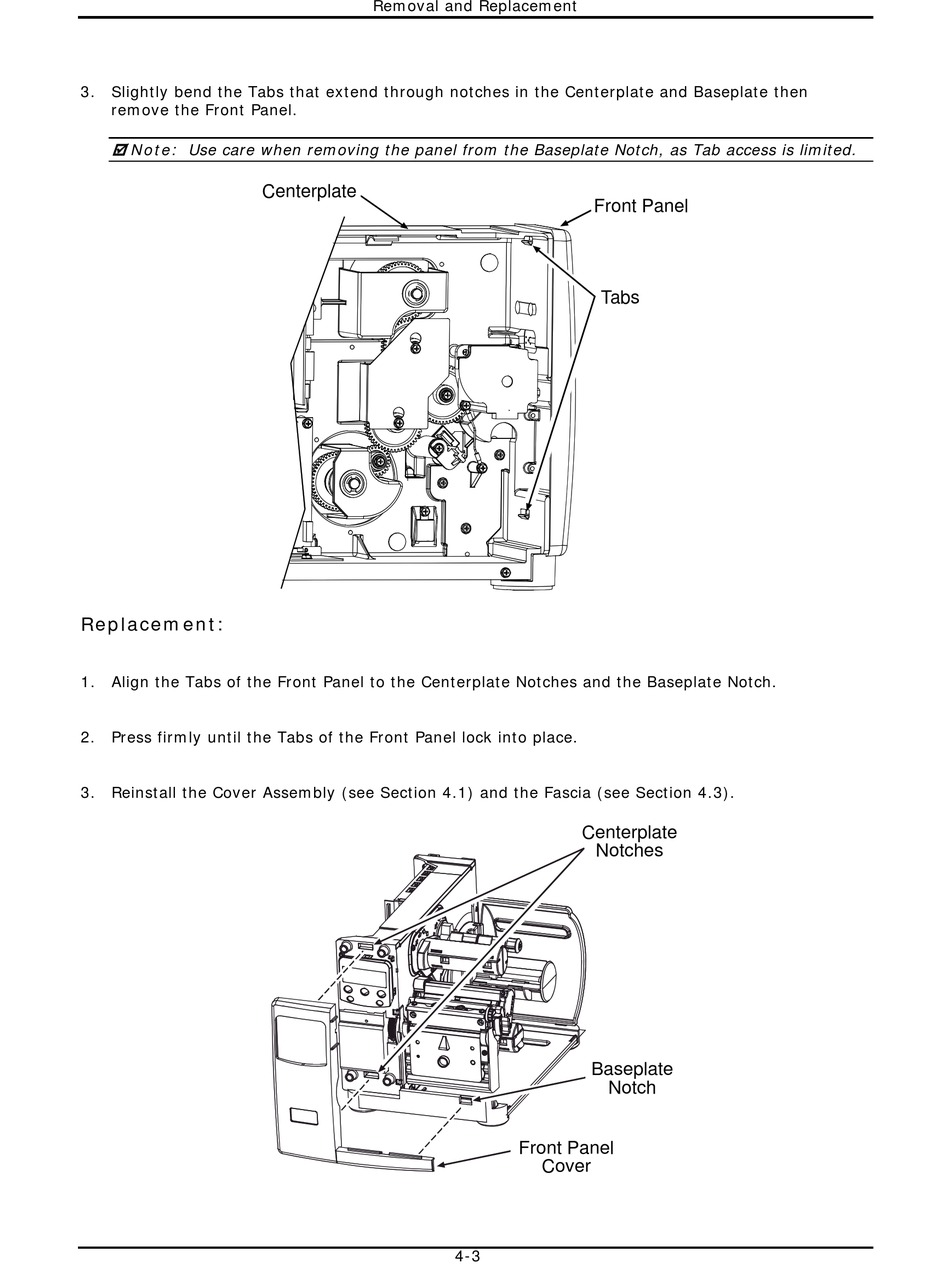

3. Slightly bend the Tabs that extend through notches in the Centerplate and Baseplate then

remove the Front Panel.

Note: Use care when removing the panel from the Baseplate Notch, as Tab access is limited.



Replacement:

1. Align the Tabs of the Front Panel to the Centerplate Notches and the Baseplate Notch.

2. Press firmly until the Tabs of the Front Panel lock into place.

3. Reinstall the Cover Assembly (see Section 4.1) and the Fascia (see Section 4.3).

Removal and Replacement

Centerplate

Front Panel

Tabs

Centerplate

Notches

Baseplate

Notch

Front Panel

Cover

4-3
