Removal and Replacement
Media Idler

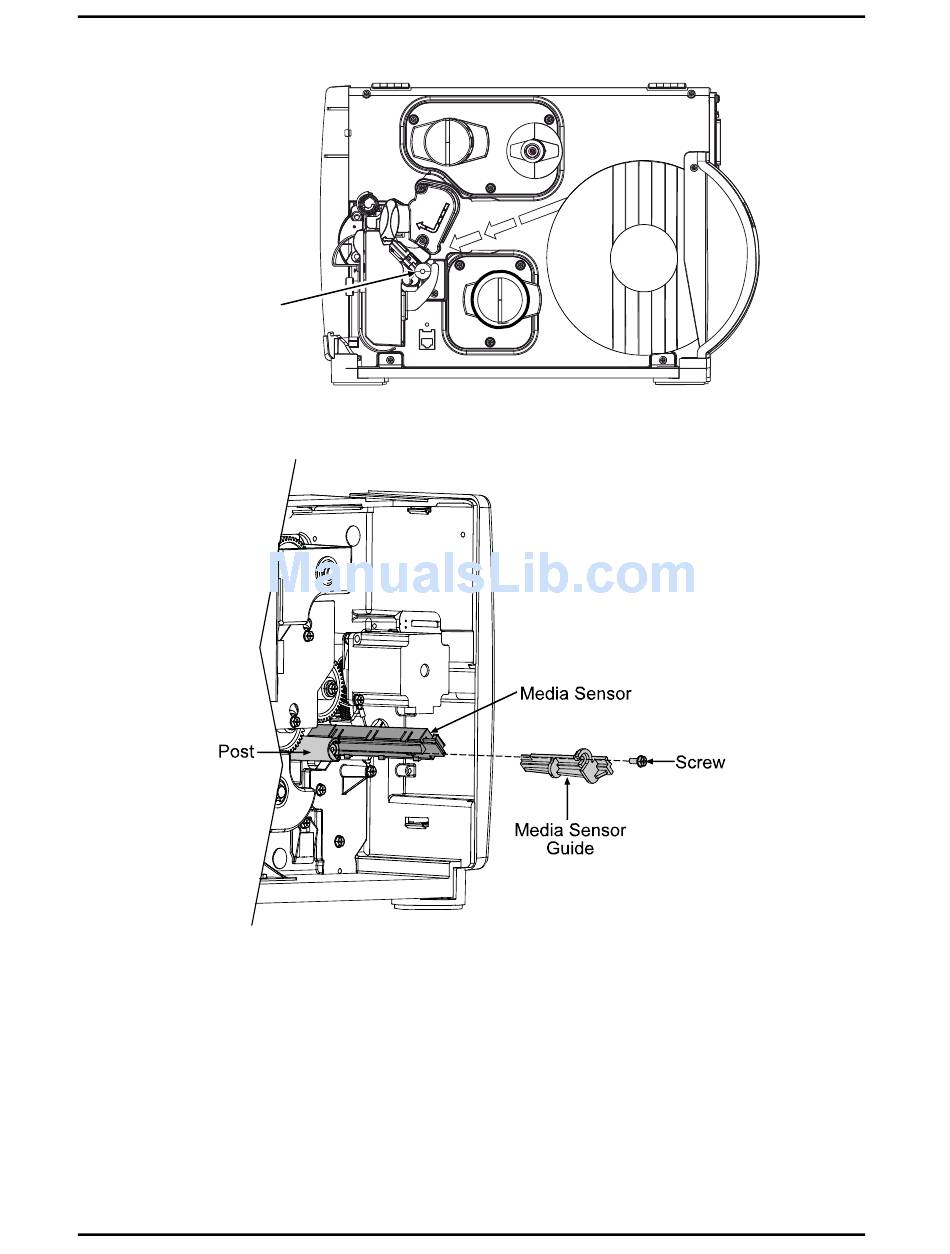

4. Pull the Media Sensor Guide and then the Media Sensor from the printer.
Replacement:
1. Reinstall the Media Sensor and then the Media Sensor Guide.
2. Secure the Media Sensor Guide to the Post with the Screw.
4-20
