User Setup

Backlight Operation

How to Change Settings in the Setup Screens
To enter Advanced Setup, press the SETUP button, then press
MODE. Use the UP or DOWN buttons to adjust the value of
your selection. Press MODE to advance to the next setup step.
Press SETUP again to leave the setup screens.
Backlight
(Setup Step 3)
The thermostat backlight may be set to be always on, on
temporarily with any button press, on throughout the evening,
or always off (For always off, see Backlight Level).
Press the SETUP button, then press MODE repeatedly until
the Backlight setup step appears. Use the UP or DOWN
buttons to make selection. Press MODE to advance to the next
step. Press SETUP to leave the setup screens.
Backlight OFF – Backlight turns on with any button press and
turns off after 8 seconds.
Backlight ON – Backlight is on continuously.
Backlight 6pm to 6am – Backlight turns on at 6pm and turns off
at 6am.
Backlight Level
(Setup Step 4)
The backlight can be adjusted between always off and seven
levels of brightness.
Press the SETUP button, then press MODE repeatedly until
the Backlight setup step appears. Use the UP or DOWN
buttons to adjust the brightness. Press MODE to advance to
the next step. Press SETUP to leave the setup screens.
Language
(Setup Step 18)
Setup step instructions on the scrolling display can be set for
English, Spanish, or French.
Press the SETUP button, then press MODE repeatedly until
the Language setupstep appears. Use the UP or DOWN
buttons to make selection. Press MODE to advance to the next
step. Press SETUP to leave the setup screens.
IM 1227 • MODELS DC THERMOSTATS
7-D P C
ay rogrammable
Scrolling Display Method
(Setup Step 19)
This option allows the user to choose how the scrolling text is
displayed. Options are:
Scrolling
Non-Scrolling
Press the SETUP button, then press MODE repeatedly until
the Scrolling Method setup step appears. Use the UP or
DOWN buttons to make a selection. Press MODE to advance
to the next step. Press SETUP to leave the setup screens.

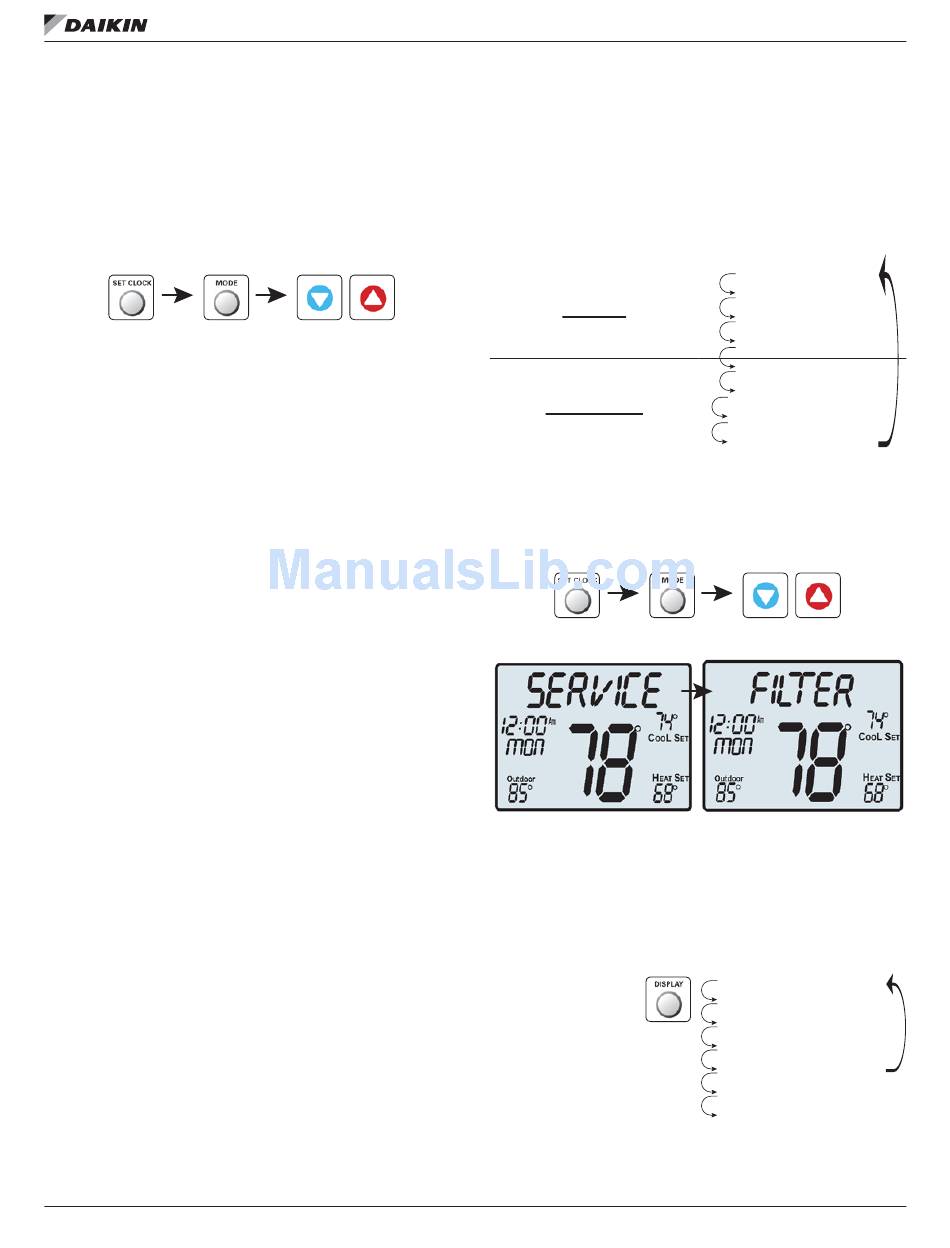

Figure 22: Example of "Whole Words Centered"
Display
This option allows the user to "de-clutter" the thermostat
display screen by removing icons from the main display. The
room temperature will always be shown. Service information
may also be viewed by pressing and holding the DISPLAY
button.
Each press of the
DISPLAY button will
remove icons. Keep
pressing to make icons
reappear.
Press and hold DISPLAY for 5
seconds to view a name and
phone number to call for service.
Any removed icons will be displayed temporarily when a setting change is made.
22
D T
ommerCial igiTal hermosTaTs
Scroll Letters Slow
Scroll Letters Fast
Scroll Words Slow
Scroll Words Fast
Whole Words Slow
Whole Words Fast
Words Centered Slow
Words Centered Fast
Show All
Remove Scrolling Text
Remove Day of Week
Remove Current Time
Remove Outdoor Temp
Remove Setpoint
Remove Mode
