Daikin DZK-MTS-3 Instructions

WIRED THERMOSTAT

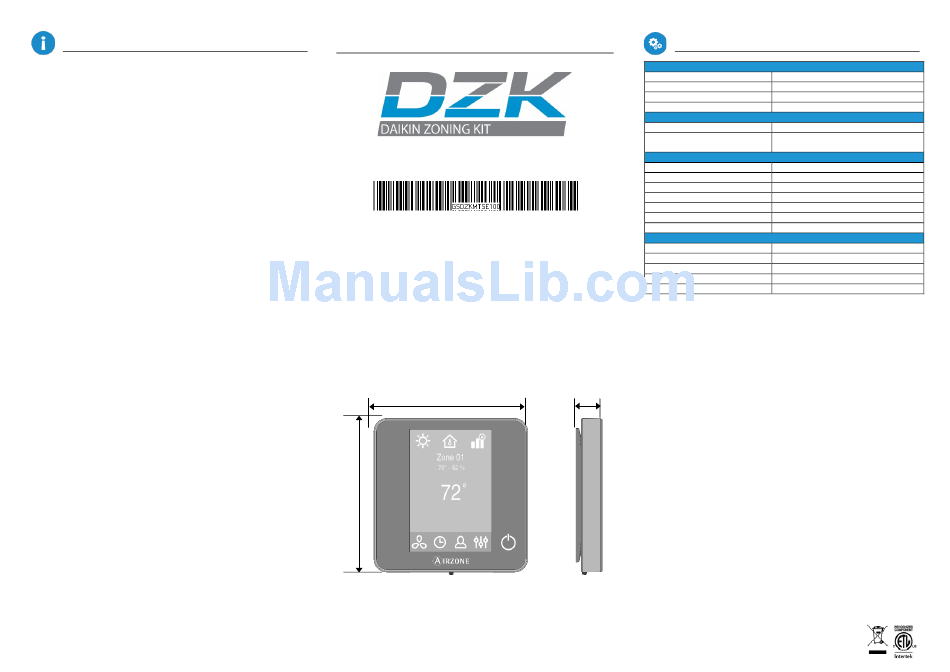

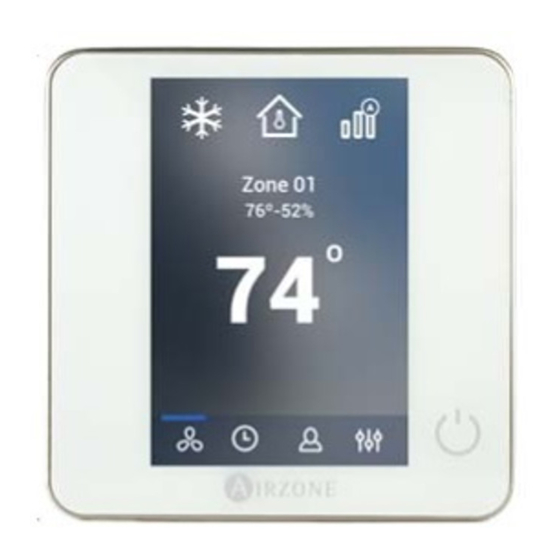

Color graphic interface with capacitive screen for controlling zones in DZK systems.
Powered by Main Control Board. Finished in steel and glass.
Functionalities:
• Available languages: English, French and Spanish.
• Control of set point temperature. Displayed in 1ºF/0.5ºC increments.
• Configurable set point range for Cooling and Heating.
• Auto changeover mode can automatically change to cool/heat mode at set
point ±1ºF/0.5ºC (can be configured from 0 to 7ºF using field settings) with a
guard timer of 15, 30, 60 or 90 minutes.
•
Room temperature and relative humidity measurement of the zone.
•
Operation mode, user mode and airflow control (Only Main Wired Thermostat).
•
Timer function.
•
Time schedules programming.
•
Remote access to other zones of the system.
• Configurable as Main or Zone thermostat.
Phone: (855) 770-5678 | http://www.daikinac.com
DZK-MTS-3
Rev. 1.00
W
H
TECHNICAL SPECS
Type of power supply
Stand-by consumption
Shielded twisted pair
Maximum wiring length
(Control board to thermostat)
Operating humidity range
Set-point temperature range
Reading accuracy
10-2016
Relative humidity
Dimensions (WxHxD)
D
Power supply and consumption
Vdc
V max 12 V supplied from the Main Control Board
I max 145 mA
0.876 W
Connection and communications
AWG 20 – 4 wired
130 ft (40 m)
Operating temperatures
Storage -4 to 158ºF (-20 to 70 ºC)
Operation 32 to 122ºF (0 to 50ºC)
5 to 90% (non-condensing)
59 to 86ºF (15 to 30ºC)
±1ºF (±0.5 ºC)
Display accuracy ±1ºF (±0.5 ºC)
±4 %
Mechanical aspects
Assembly Surface through support
Protection class IP 20
Type of probe Airzone_NTC_10K
Weight (Mass) 0.44 lb (198 g)
3.62x3.62x0.62 inch (92x 92x15.85 mm)
