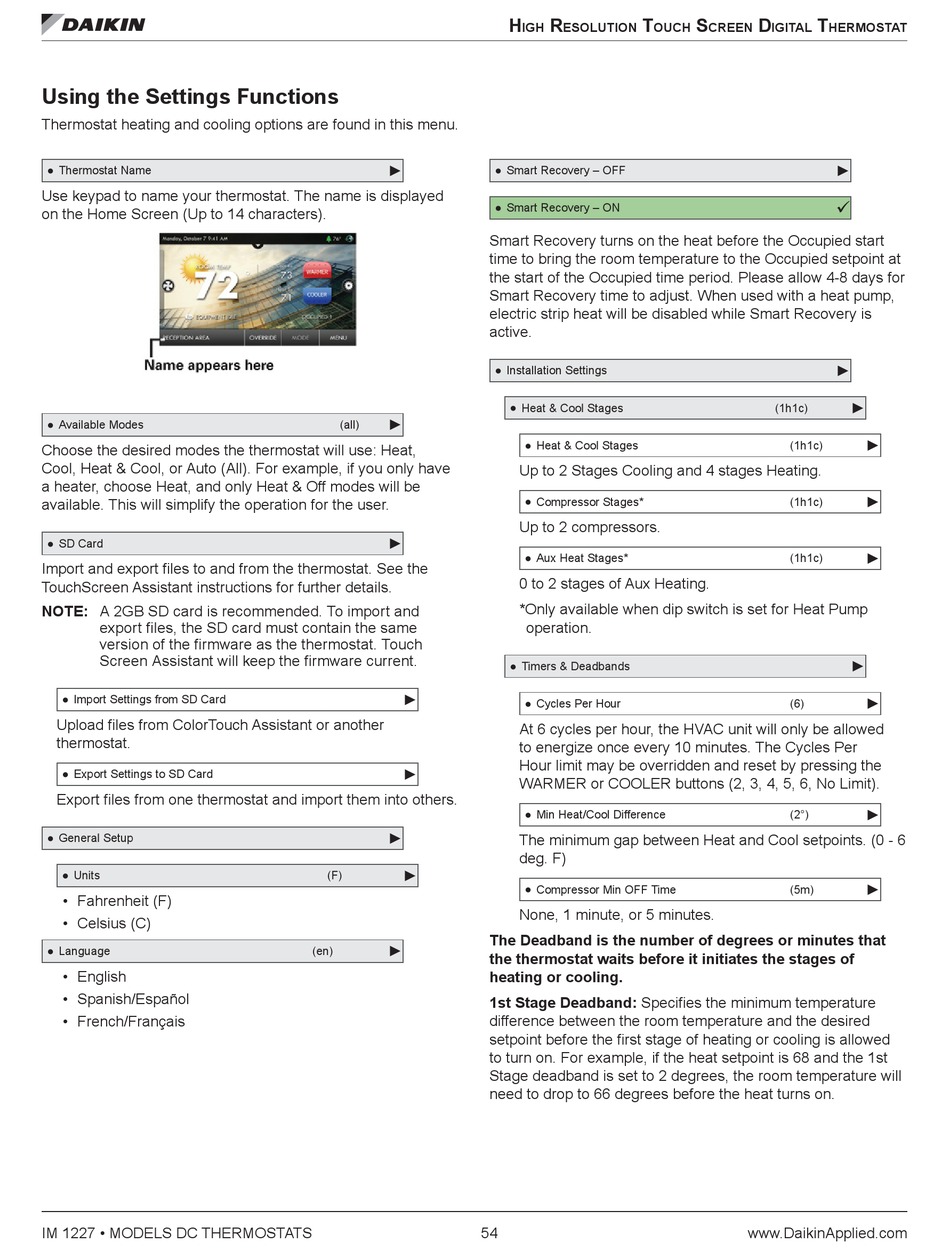

Using the Settings Functions

Thermostat heating and cooling options are found in this menu.
● Thermostat Name
Use keypad to name your thermostat. The name is displayed
on the Home Screen (Up to 14 characters).
● Available Modes
Choose the desired modes the thermostat will use: Heat,
Cool, Heat & Cool, or Auto (All). For example, if you only have
a heater, choose Heat, and only Heat & Off modes will be
available. This will simplify the operation for the user.
● SD Card
Import and export files to and from the thermostat. See the
TouchScreen Assistant instructions for further details.
NOTE: A 2GB SD card is recommended. To import and
export files, the SD card must contain the same
version of the firmware as the thermostat. Touch
Screen Assistant will keep the firmware current.
● Import Settings from SD Card
Upload files from ColorTouch Assistant or another
thermostat.
● Export Settings to SD Card
Export files from one thermostat and import them into others.
● General Setup
● Units
• Fahrenheit (F)
• Celsius (C)
● Language
• English
• Spanish/Español
• French/Français
IM 1227 • MODELS DC THERMOSTATS
►
Smart Recovery turns on the heat before the Occupied start
time to bring the room temperature to the Occupied setpoint at
the start of the Occupied time period. Please allow 4-8 days for
Smart Recovery time to adjust. When used with a heat pump,
electric strip heat will be disabled while Smart Recovery is
active.
►
(all)
►
►
►
►
►
(F)
The Deadband is the number of degrees or minutes that
►
(en)
the thermostat waits before it initiates the stages of
heating or cooling .
1st Stage Deadband: Specifies the minimum temperature
difference between the room temperature and the desired
setpoint before the first stage of heating or cooling is allowed
to turn on. For example, if the heat setpoint is 68 and the 1st
Stage deadband is set to 2 degrees, the room temperature will
need to drop to 66 degrees before the heat turns on.
54
h r T
igh esoluTion ouCh
● Smart Recovery – OFF
● Smart Recovery – ON
● Installation Settings
● Heat & Cool Stages
● Heat & Cool Stages
Up to 2 Stages Cooling and 4 stages Heating.
● Compressor Stages*
Up to 2 compressors.
● Aux Heat Stages*
0 to 2 stages of Aux Heating.
*Only available when dip switch is set for Heat Pump
operation.
● Timers & Deadbands
● Cycles Per Hour
At 6 cycles per hour, the HVAC unit will only be allowed
to energize once every 10 minutes. The Cycles Per
Hour limit may be overridden and reset by pressing the
WARMER or COOLER buttons (2, 3, 4, 5, 6, No Limit).
● Min Heat/Cool Difference
The minimum gap between Heat and Cool setpoints. (0 - 6
deg. F)
● Compressor Min OFF Time
None, 1 minute, or 5 minutes.
s D T
Creen igiTal hermosTaT
►

►
►
(1h1c)
►
(1h1c)
►
(1h1c)
►
(1h1c)
►
►
(6)
►
(2°)
►
(5m)
