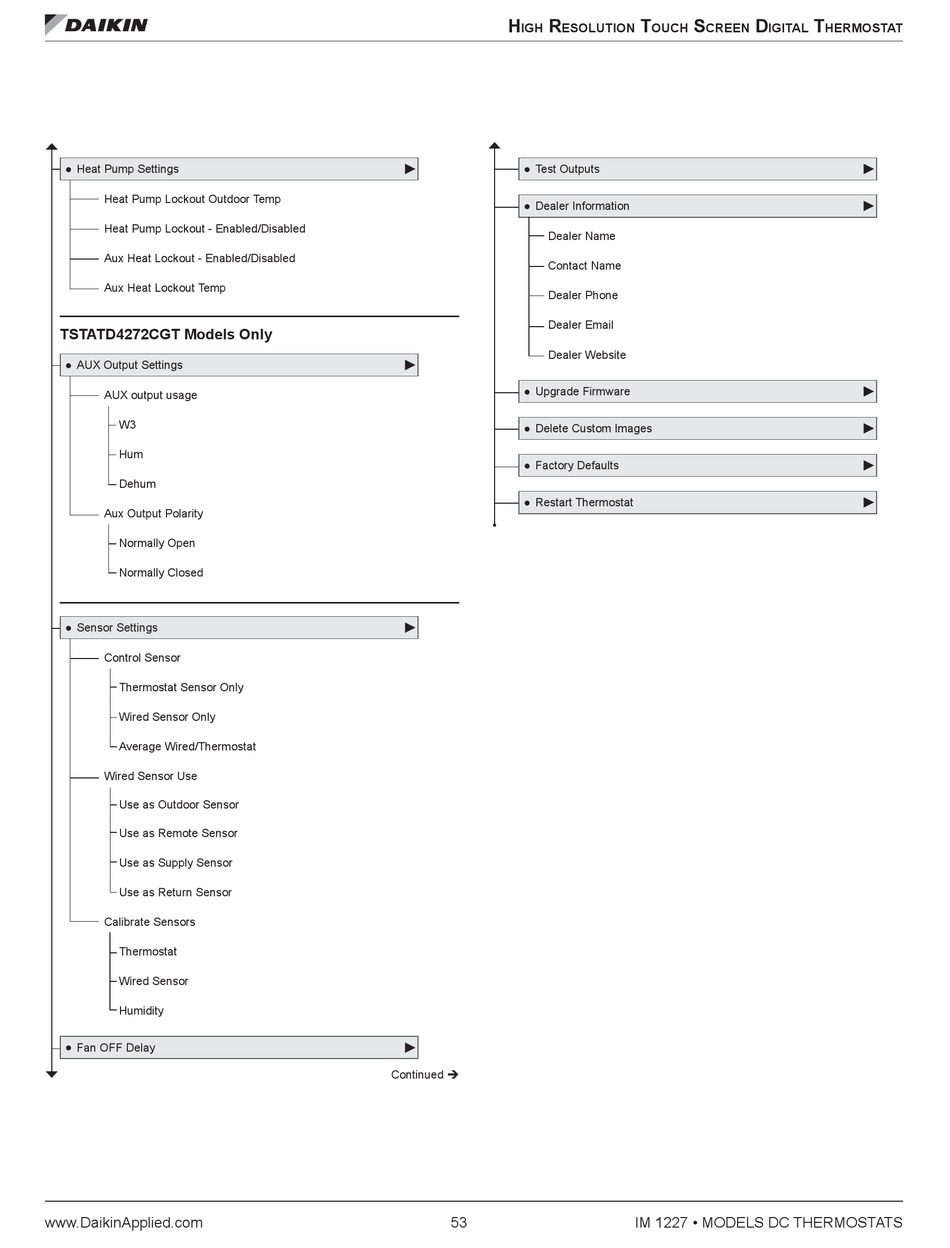

Daikin TSTATD4271C Installation And Maintenance Manual page 53

● Heat Pump Settings
Heat Pump Lockout Outdoor Temp
Heat Pump Lockout - Enabled/Disabled
Aux Heat Lockout - Enabled/Disabled
Aux Heat Lockout Temp
TSTATD4272CGT Models Only
● AUX Output Settings
AUX output usage
W3
Hum
Dehum
Aux Output Polarity
Normally Open
Normally Closed
● Sensor Settings
Control Sensor
Thermostat Sensor Only
Wired Sensor Only
Average Wired/Thermostat
Wired Sensor Use
Use as Outdoor Sensor
Use as Remote Sensor
Use as Supply Sensor
Use as Return Sensor
Calibrate Sensors
Thermostat
Wired Sensor
Humidity
● Fan OFF Delay
www.DaikinApplied.com
h r
igh esoluTion
►
● Test Outputs
● Dealer Information
Dealer Name
Contact Name
Dealer Phone
Dealer Email
Dealer Website
►
● Upgrade Firmware
● Delete Custom Images
● Factory Defaults
● Restart Thermostat
►
►
Continued 
