Daikin One+ Installation & Commissioning

Technical Training Module TRC-3

Table of Contents

Need help?

Do you have a question about the One+ and is the answer not in the manual?

Questions and answers

Ben

February 14, 2025

What items are affected by selecting "Factory Reset" in the setup menu?

Summary of Contents for Daikin One+

Page 2 Daikin One+ System Configurations Installing Daikin One+ Commissioning Daikin One+ Agenda Quick Set-up Full Set-up Homeowner Navigation Mobile Apps © 2019 Daikin North America, LLC...
Page 3 Daikin One+ Premium control that provides optimal comfort.  Easy to use, energy efficient, reliable, and ensures that the system is set up properly.  Designed to regulate and communicate with HVAC equipment.  © 2019 Daikin North America, LLC...
Page 4 Daikin FIT system air conditioners and heat pumps, residential inverter air conditioners and heat pumps,  two stage air conditioners and heat pumps. Also includes the Daikin One ecosystem of indoor air quality modules, which provide an integrated solution  for temperature control and air quality.

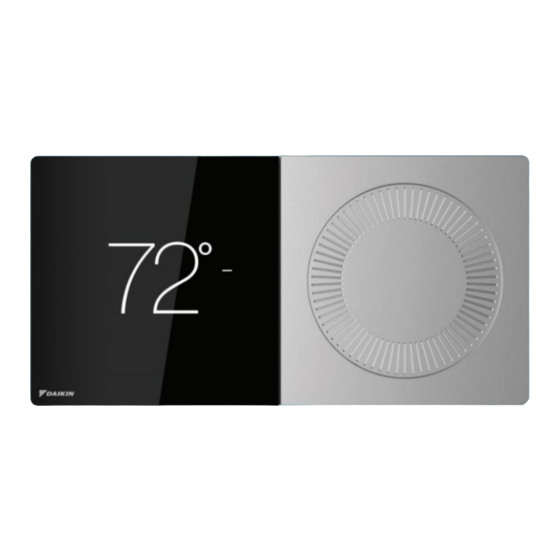

Page 5 A capacitive touch screen on the left,  supports tactile-based interactions. Navigating to each screen is done by  tapping an icon. © 2019 Daikin North America, LLC...
Page 6 Daikin One+ Service Reminders Set service reminders to maintain  your system. Preset reminder options include:  Filter replacement/clean  Air quality  UV bulbs  Dehumidification Filter  Humidifier Pad  Fall service  © 2019 Daikin North America, LLC...
Page 7 There are four types of messages:  Status Alerts Reminders and Prompts Learn more/tips Notes: Alerts have priority over all other messages in the system © 2019 Daikin North America, LLC...
Page 8 Quick reference cards are packaged with the thermostat to help answer questions during  the installation and commissioning. Scanning the bar code using a QR app on the bottom left corner will link you to a website related to the title of the card. © 2019 Daikin North America, LLC...
Page 9 Daikin One+ System Configurations Installing Daikin One+ Commissioning Daikin One+ Agenda Quick Set-up Full Set-up Homeowner Navigation Mobile Apps © 2019 Daikin North America, LLC...
Page 10 Valid System Configurations Communicating Communicating indoor unit Communicating outdoor units Outdoor units Air handler. Air conditioning. 24V single-stage air conditioning    Furnace. Heat pump.   EEV coil  © 2019 Daikin North America, LLC...
Page 11 Daikin One+ System Configurations Installing Daikin One+ Commissioning Daikin One+ Agenda Quick Set-up Full Set-up Homeowner Navigation Mobile Apps © 2019 Daikin North America, LLC...
Page 12 Installing Daikin One+ Mounting the thermostat will be leveled:  Approximately 5’ from the floor.  On a interior wall using the included screws.  © 2019 Daikin North America, LLC...
Page 13 Wiring communicating indoor unit to communicating  outdoor units Connect 1, 2, C and R from the Daikin One+, to 1, 2, C and R at  the indoor unit. Connect wires 1 and 2 from the indoor unit to 1 and 2 at the ...
Page 14  corners. Hot or cold air from ducts or ceiling fans.  Radiant heat from the sun or appliances.  Concealed pipes and chimneys.  Unheated (uncooled) areas such as an  outside wall. © 2019 Daikin North America, LLC...
Page 15 Daikin One+ System Configurations Installing Daikin One+ Commissioning Daikin One+ Agenda Quick Set-up Full Set-up Homeowner Navigation Mobile Apps © 2019 Daikin North America, LLC...
Page 16 The commissioning workﬂow uses the auto-discovery process, on the ComfortNet, to identify equipment in the home. • The screens are populated based on the model numbers of the discovered devices, matched to a database of device conﬁguration settings. © 2019 Daikin North America, LLC...
Page 17 An explanation of two set-up  options is displayed on the learn more screen. Demo mode displays a quick  video of the full set-up and a few home owner navigation features. © 2019 Daikin North America, LLC...
Page 18 Daikin One+ System Configurations Installing Daikin One+ Commissioning Daikin One+ Agenda Quick Set-up Full Set-up Homeowner Navigation Mobile Apps © 2019 Daikin North America, LLC...
Page 19 Identifies the installed equipment.  Units that are equipped with inverters will go through a system test. With no changes to the equipment list  or their settings, the dealer ﬁnishes quick set-up. © 2019 Daikin North America, LLC...
Page 20  be run for the inverter units before proceeding to complete set-up and can run approximately for 5-15 minutes. Note: You cannot stop the system test. There is no system test for 2 stage. © 2019 Daikin North America, LLC...
Page 21 Note: Once the thermostat is commissioned using the quick set-up option with default settings, you should return to the full set-up option in order to ensure that the system is properly commissioned . © 2019 Daikin North America, LLC...
Page 22 Daikin One+ System Configurations Installing Daikin One+ Commissioning Daikin One+ Agenda Quick Set-up Full Set-up Homeowner Navigation Mobile Apps © 2019 Daikin North America, LLC...
Page 23 Equipment Set-up.  System Optimization.  Preferences.  Full set-up ensures the system is configured properly and  ready for the homeowner to use. Note: All steps must be reviewed before completing full set-up © 2019 Daikin North America, LLC...
Page 24 Personalization displays:  Language  Date & Time  If Wi-Fi is connected, date &  time set automatically. Thermostat Name.  Degree Units.  Note: Tapping Daikin logo returns to welcome screen. © 2019 Daikin North America, LLC...
Page 25 Select home Wi-Fi to search for  networks. With Wi-Fi conﬁgured, the system  can check the software version and update software to the latest version automatically. Note: Wireless router must be password protected. © 2019 Daikin North America, LLC...
Page 26 There are options to view and optimize  settings that apply to the installed units. View unit Specifications.  Configure  Cool settings  Heat Settings.  Heat Pump Settings  Humidifier Relay  Aux alarm  Heater Kit  © 2019 Daikin North America, LLC...
Page 27 Full Set-up Added Equipment The Daikin One+ thermostat is compatible with multiple accessories.  © 2019 Daikin North America, LLC...
Page 28 Inverters only.  Charge mode.  Inverters only.  Optional test.  Error history.  Logs alerts with an error code.  White=not critical,  Yellow=critical Calibration.  Status  Note: (*)Indicates step not completed. © 2019 Daikin North America, LLC...
Page 29 To proceed through the set-up  process, the system test needs to be completed without any errors. When the tests are completed, the run  test screen is displayed. © 2019 Daikin North America, LLC...
Page 30 Selecting charge mode allows for  a steady system operation for approximately 1 hour to allow for refrigerant charging of the system via the suction charge port. The system will stop after  completion. © 2019 Daikin North America, LLC...
Page 31 Full Set-up Optional Tests Each optional test has a short description.  Optional tests display a stop test button while test is running.  Note: Scroll through lists by tapping the up and down arrows. © 2019 Daikin North America, LLC...
Page 32 Full Set-up Status The status menu displays data pertaining to the selected equipment.  The scrollable list can be accessed any time by returning to the installer set-up screen.  © 2019 Daikin North America, LLC...
Page 33 Cool/Heat  House settings  Dealer information  Reminders  Note: Changing preferences is not required, but reminders and dealer contact information should be inputted. © 2019 Daikin North America, LLC...
Page 34 Once the equipment has been  added, a 1 – 24 month service reminder can be selected for the installed equipment. Note: The homeowner cannot edit service reminders. © 2019 Daikin North America, LLC...
Page 35 Full Set-up Dealer information Selecting allows you to enter and  review the dealers information. © 2019 Daikin North America, LLC...
Page 36 Final step - Complete set-up Selecting complete set-up will  conclude the full set-up of the thermostat and display normal mode for you to navigate and verify settings. Reminder: All steps must be reviewed before completing full set-up © 2019 Daikin North America, LLC...
Page 37 Daikin One+ System Configurations Installing Daikin One+ Agenda Commissioning Daikin One+ Quick Set-up Full Set-up Homeowner Navigation Mobile Apps © 2019 Daikin North America, LLC...
Page 38 When away, a screen saver will appear  until the proximity sensor identifies a nearby object. Note: Analog turn dial is used to adjust temperature only. Pressing the dial returns to the home screen. © 2019 Daikin North America, LLC...
Page 39 Change setpoints by rotating the dial or  touching the screen to drag and drop to your Note: If the setpoint is lower or higher than the desired temperature. current temperature a temperature direction arrow is displayed. © 2019 Daikin North America, LLC...
Page 40 You can use the drop down menu or swipe  to enable schedule editing. Copy and paste is a feature that makes  scheduling seamless. Note: Unlike other screens, scheduling requires saving edits before exiting the mode. © 2019 Daikin North America, LLC...
Page 41 User can change the values of the  setpoints by dragging the numbers or the comfort range up and down With the mobile app., enabling geo-  fencing will automatically switch to energy savings when outside the radius. © 2019 Daikin North America, LLC...
Page 42 Selecting circulate air allows you to  access one clean. One clean runs the fan, at high speed  for three hours, to circulate and filter the indoor air. © 2019 Daikin North America, LLC...
Page 43 Adjust and enable visual features.  Comfort.  Set target humidity.  Configuration.  App. account setup.  Dealer information.  Date & Time.  Enable messages/view alerts.  System components.  Home wifi.  © 2019 Daikin North America, LLC...
Page 44 Daikin One+ System Configurations Installing Daikin One+ Commissioning Daikin One+ Agenda Quick Set-up Full Set-up Homeowner Navigation Mobile Apps © 2019 Daikin North America, LLC...
Page 45 Confirming your account. Adding the thermostats location. Connecting the app to the thermostat Note: A mobile device, the Daikin One+ connected to wifi that is wired to an indoor and outdoor unit and a valid email address is needed to create a mobile account.
Page 46  right corner of the login screen will start the process. Before agreeing, read the terms and  service, privacy statement, and other notices. Fill in your name, valid email  address, and password. © 2019 Daikin North America, LLC...
Page 47 A welcome email will  appear in your inbox providing a six digit code. Entering the six digit code  on your phone app. will allow you to continue. © 2019 Daikin North America, LLC...
Page 48 If you have forgotten your password, tap  the forgot password link to recover information via email. Type the address of where the thermostat  is located to gather accurate information. © 2019 Daikin North America, LLC...
Page 49 Type the six digit code  displayed on your thermostat into the space provided on the mobile app. Tap connect to continue  and operate the Daikin One+ from your mobile device. © 2019 Daikin North America, LLC...
