Display

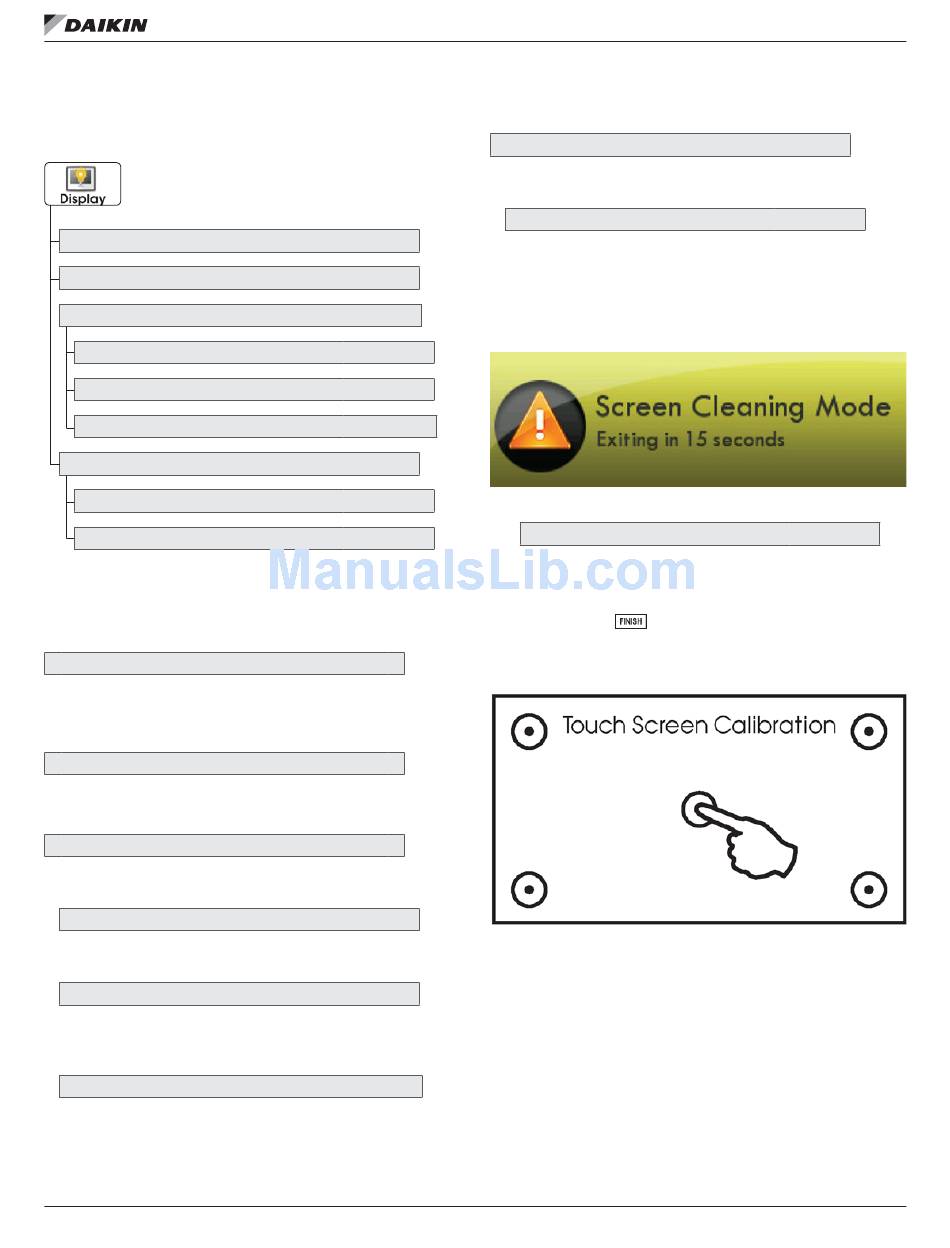

Table 12: Disply Settings Command Levels
● Active Brightness
● Idle Brightness
● Night Dimmer
● Auto Night Dimmer – OFF
● Set Idle Brightness
● Set Dimmer Schedule
● Maintenance
● Screen Cleaning
● Touch Calibration
Using the Display Functions
The display brightness options may be adjusted in this menu.
● Active Brightness
You may select how bright the backlight is while the thermostat
is active. The display is active for 3 minutes after last touch, it
then goes Idle.
● Idle Brightness
You may select how bright the backlight is while the thermostat
is idle.
● Night Dimmer
You may dim the brightness of the TouchScreen screen at
night.
● Auto Night Dimmer - OFF
The screen can be set to dim automatically at night.
Dimming the display can prolong the life of the backlight.
● Set Idle Brightness
Set the screen brightness for the Night Dimmer. When Night
Dimmer is On, the display will go idle 8 seconds after last
touch.
● Set Dimmer Schedule
Set the schedule for the Night Dimmer.
www.DaikinApplied.com
Maintenance allows you to clean and calibrate the touch
screen.
►
►
►
Figure 43: Screen Cleaning Alert
►
►
►
►
►
►
(80%)
Figure 44: Touch Screen Calibration Targets
►
(30%)
►
►
(50%)
►
41
h r T
igh esoluTion ouCh
● Maintenance
● Screen Cleaning
Screen Cleaning Mode disables the touch feature for 15
seconds so the screen may be clean without altering any
settings. Use a soft cloth without solvents or abrasive
cleaners.
● Touch Calibration
Under normal circumstances, the touchscreen should not
need to be calibrated
Touch the center of the targets as they appear on the
screen. Press when done. When calibration is
complete
IM 1227 • MODELS DC THERMOSTATS
s D T
Creen igiTal hermosTaT
►
►
►
