5: Cabling
74
1. To cable the system for direct management via Ethernet, connect a pair of Ethernet
interface cables from the storage management station to the Ethernet connectors for
controller A (left) and controller B (right) on the rear of the controller enclosure (see
Figure 5-7).
2. To cable the system for direct management via the RS-232 serial ports, connect a pair
of serial cables from the storage management station to the serial connectors for
controller A (left) and controller B (right) on the rear of the controller enclosure.
Storage Management
Ethernet
Network
Ethernet Connector
Controller B
Controller Enclosure

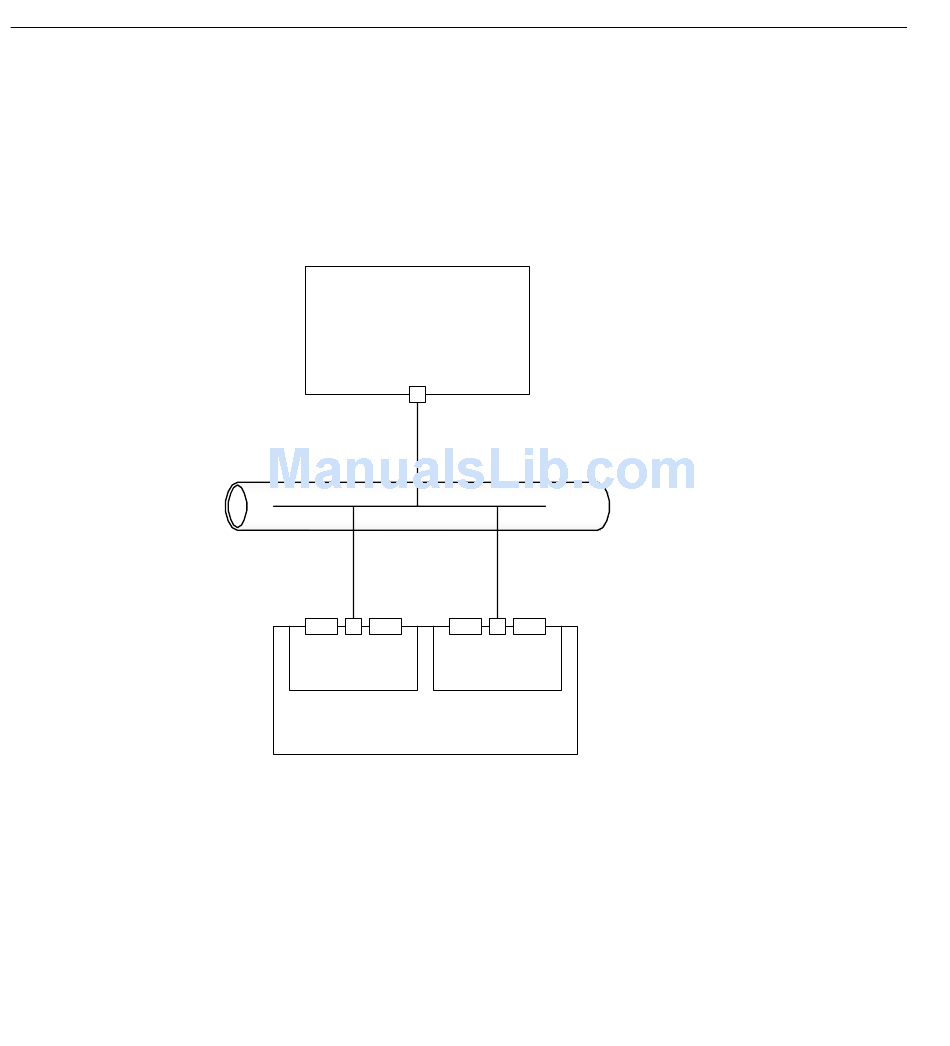

Figure 5-7 Connecting Ethernet Cables
Station
Ethernet Connector
Ethernet Connector
Controller A
007-4644-001
