1. Connect the drive loops in the first two enclosures (see Figure 5-1). Starting with the
controller enclosure, connect an interface cable from the drive loop connector on the
left RAID controller module to the
environmental status module in the expansion enclosure.
2. Connect an interface cable from the drive loop connector on the right RAID
controller module to the
status module in the expansion enclosure. This creates a redundant drive loop
between the two enclosures (see Figure 5-1).
ESM A
Drive channel in

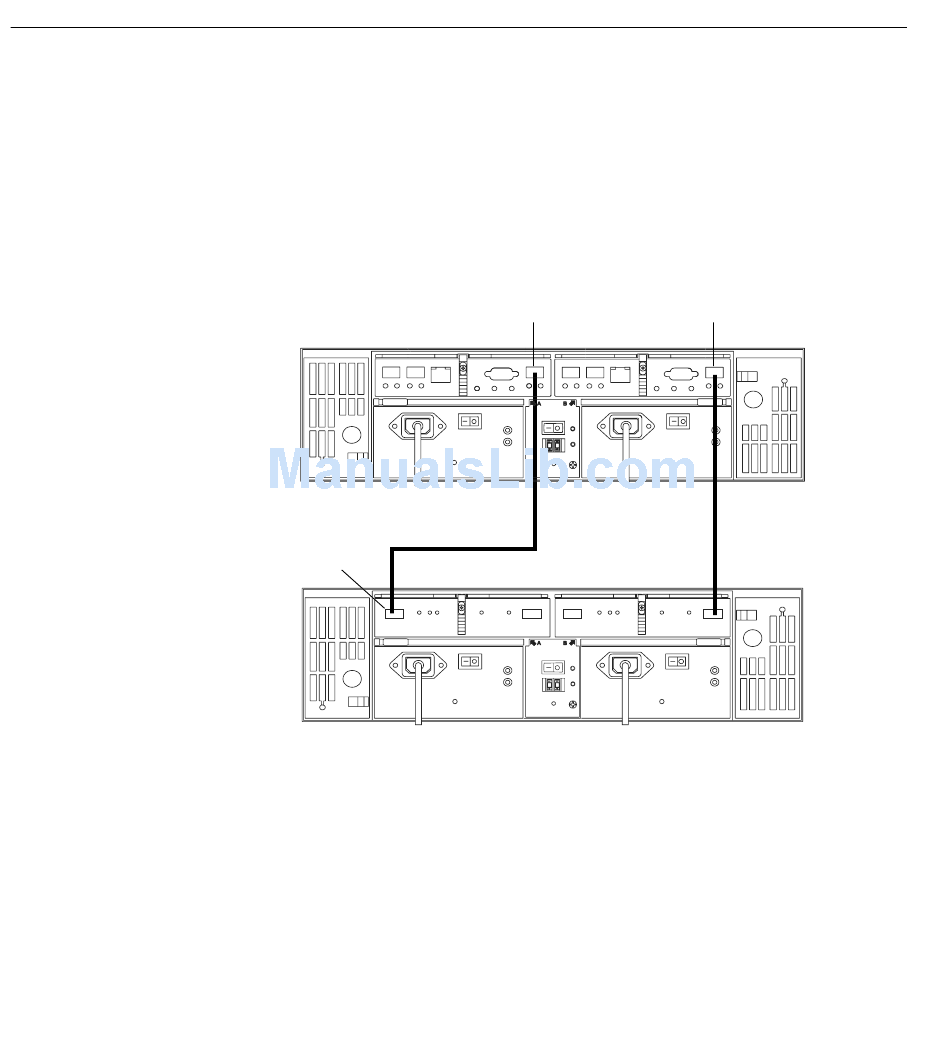

Figure 5-1 Drive Loop Cabling for Systems with Two Enclosures
3. Connect additional drive enclosures to drive loops A and B by connecting the
connectors on the new enclosure to the
channel out
the expansion enclosure directly beneath it (see Figure 5-2). Then connect the
cable from the left side RAID controller to the left-side
loop out
connector on the new expansion enclosure. The
first expansion enclosure should remain connected to the right-side RAID controller
drive loop connector.
