007-4644-001
Fan
Latch

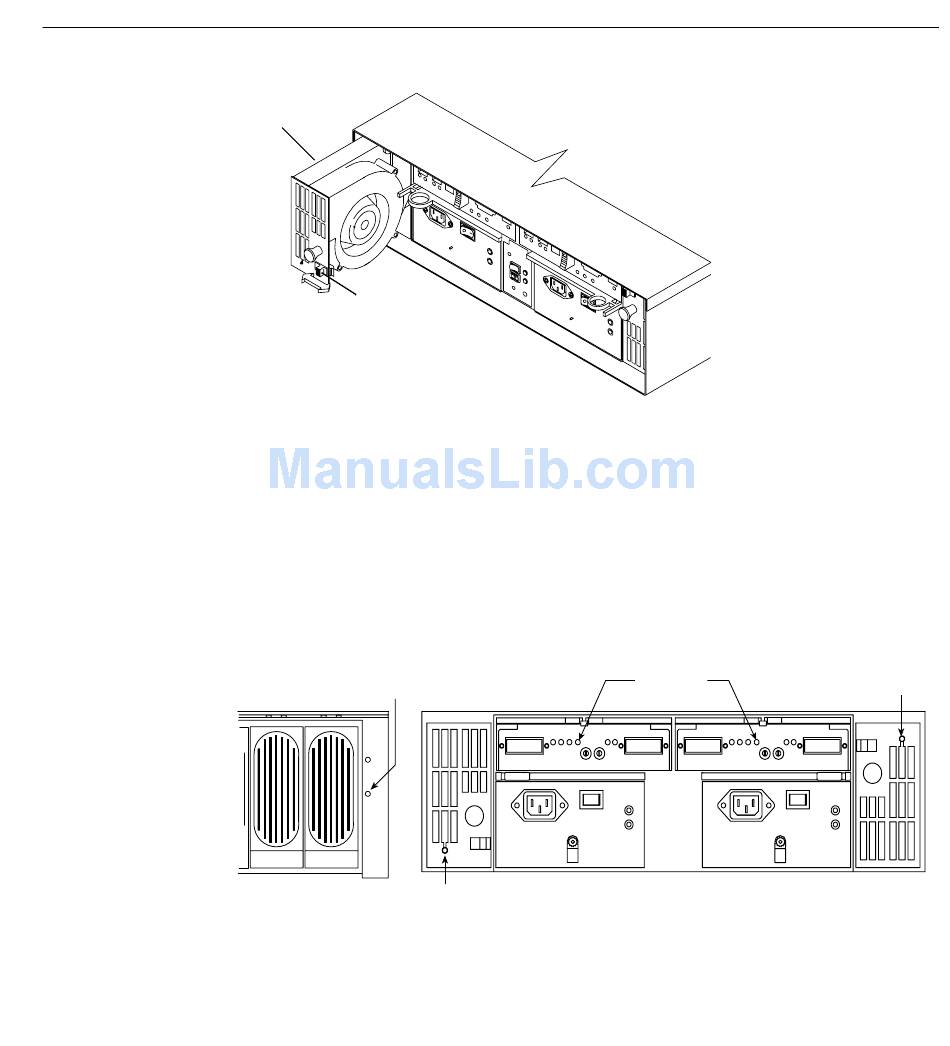

Figure 4-2 Removing and Installing a Fan Module
10. Push firmly until the latch snaps into place.
11. If you turned the power off, turn it back on.
12. Check the fault indicators as follows (see Figure 4-3):
• If the fan fault indicator is on or the fans are not spinning, the module might be
installed incorrectly. Remove the fan module and reinstall it.
• If any of the other fault indicators shown in Figure 4-3 are on, use TPSSM to
determine the problem.
Global fault
indicator
Front
Figure 4-3 Fault Lights for Fan Module Replacement
Rear
Fan canister fault indicator
Replacing a Failed Fan
Overtemp
Fan canister fault indicator
indicators
55008-f
49
