3: Operating Storage Enclosures
42
5. Remove the front and rear mounting screws (see Figure 3-5). There are two
mounting screws at the rear, one for each support rail, and two mounting screws in
the front, one in each flange.
Remove
screw from
flange hole.

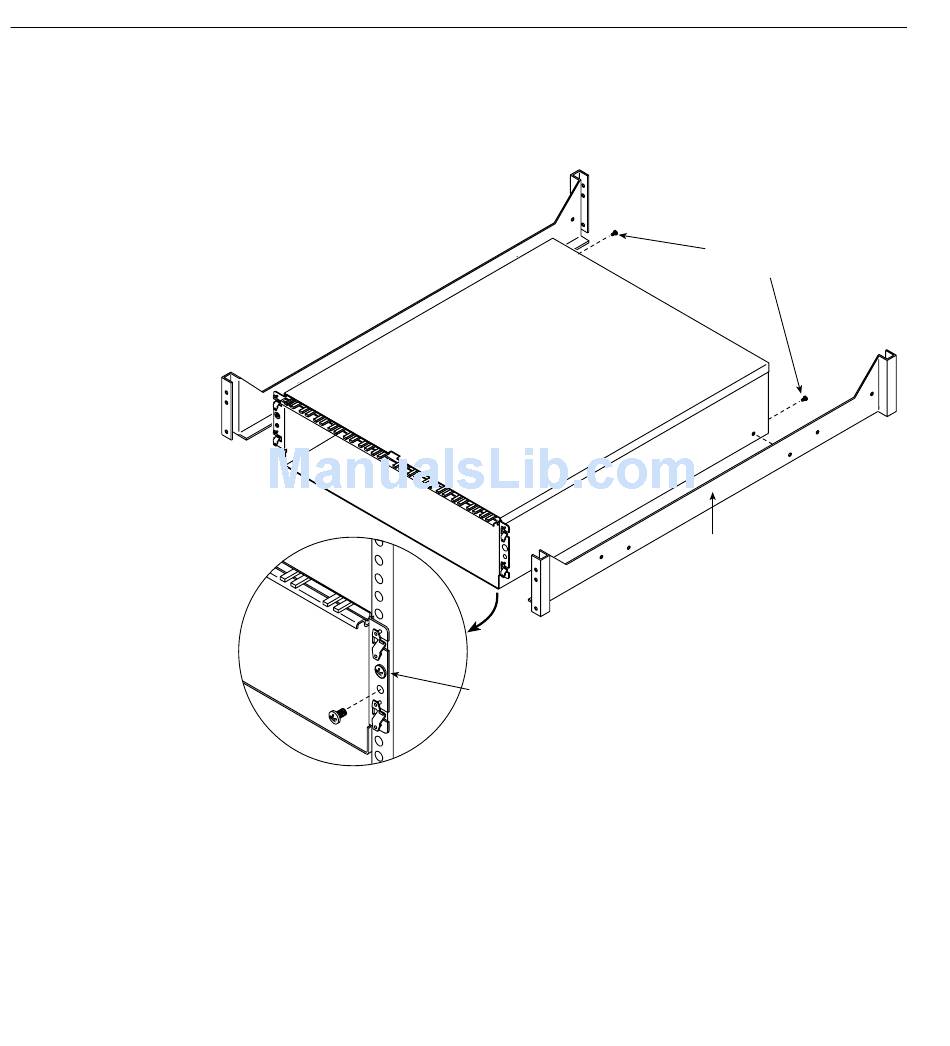

Figure 3-5
Removing the Empty Drive Enclosure
6. Slide the enclosure out of the front of the rack.
7. Repeat steps 1 through 6 for any other enclosures to be moved.
Drive enclosure
Do not remove
this screw from
the vertical rail.
Rear mounting
screws
Support rails
installed in rack
