Enclosure Specifications

Dimensions

13.23 cm
(5.21 in.)
007-4644-001
This section lists the dimensions and weights, as well as the wiring, power,
environmental, and airflow requirements for the enclosures.
Make sure that the installation site provides a minimum of two feet of space around each
side of the rack to install and service the controller enclosure, and to allow adequate

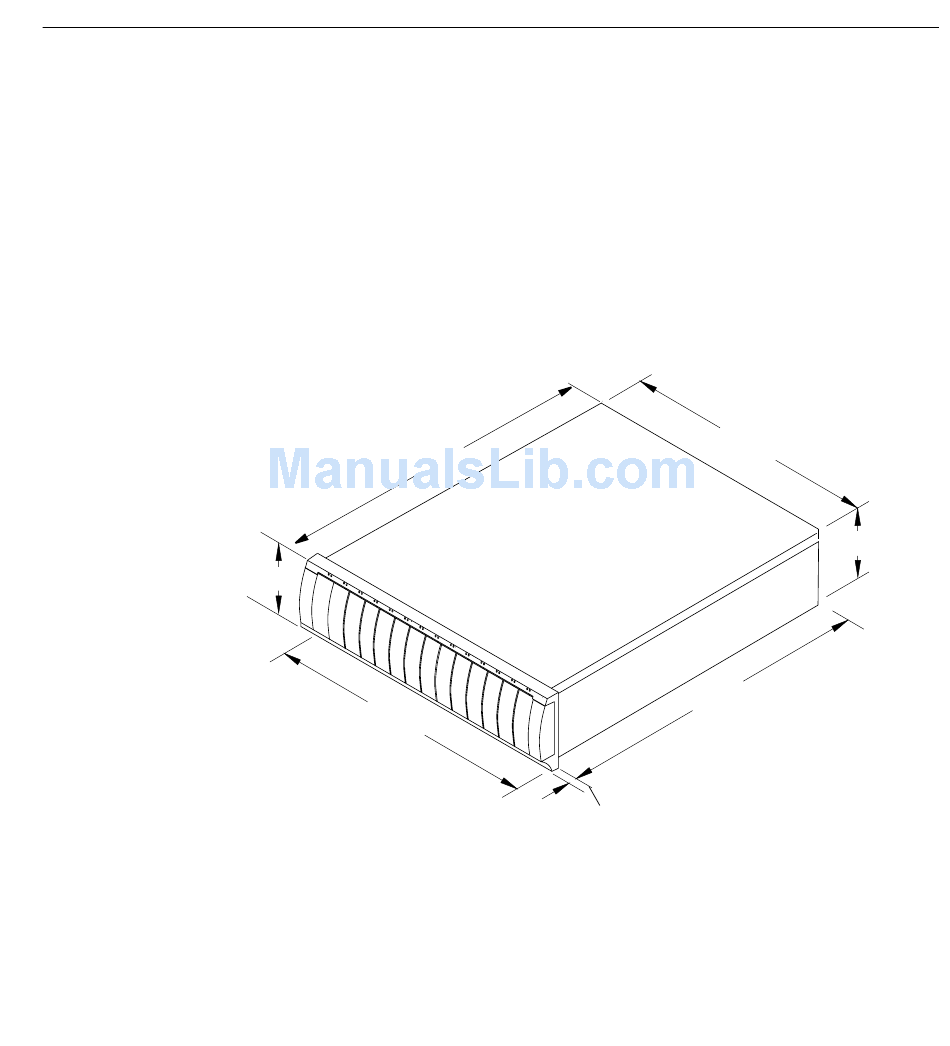

ventilation during operation. Figure A-7 shows the dimensions for the controller
enclosure and the front cover.
59.74 cm (23.52 in.)
48.18 cm (18.97 in.)
Dimensions of the System Enclosure
Figure A-7

Enclosure Specifications

44.7 cm (17.6 in.)
56.13 cm (22.1 in.)
3.63 cm (1.43 in.)
12.9 cm
(5.08 in.)
