Checking the Indicator Lights
Drive fault (amber)
Drive active (green)
Drives (14 total)
Front bezel
Rack front view
Global power
Global fault

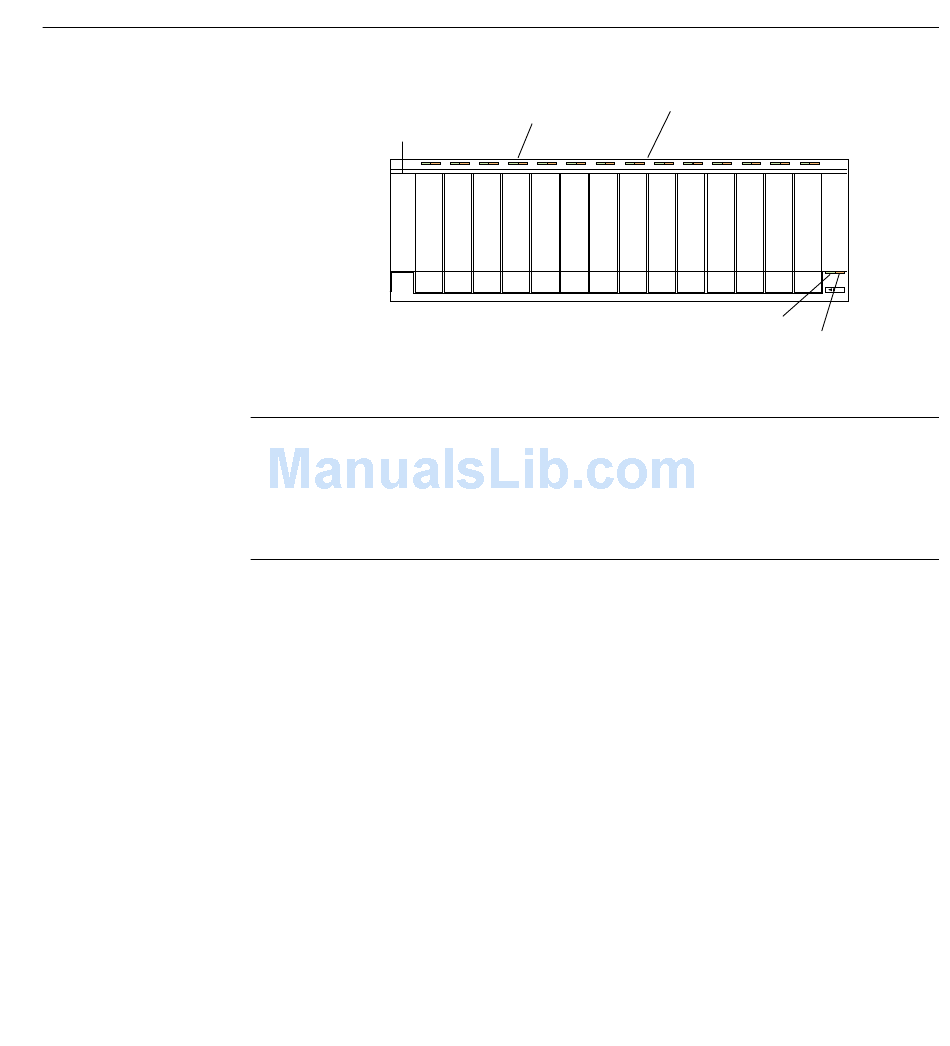

Figure 3-2 Storage Enclosure Front Indicator Lights
Note: The normal operating state of all indicators on the front panel is green. If an amber
indicator is on, or a green indicator is off, use TPSSM to determine the nature of the fault
and the recovery procedure.
Exception: If the drive fault indicators are blinking, it means that TPSSM is locating a
component. It does not indicate a failure.
007-4644-001 35
