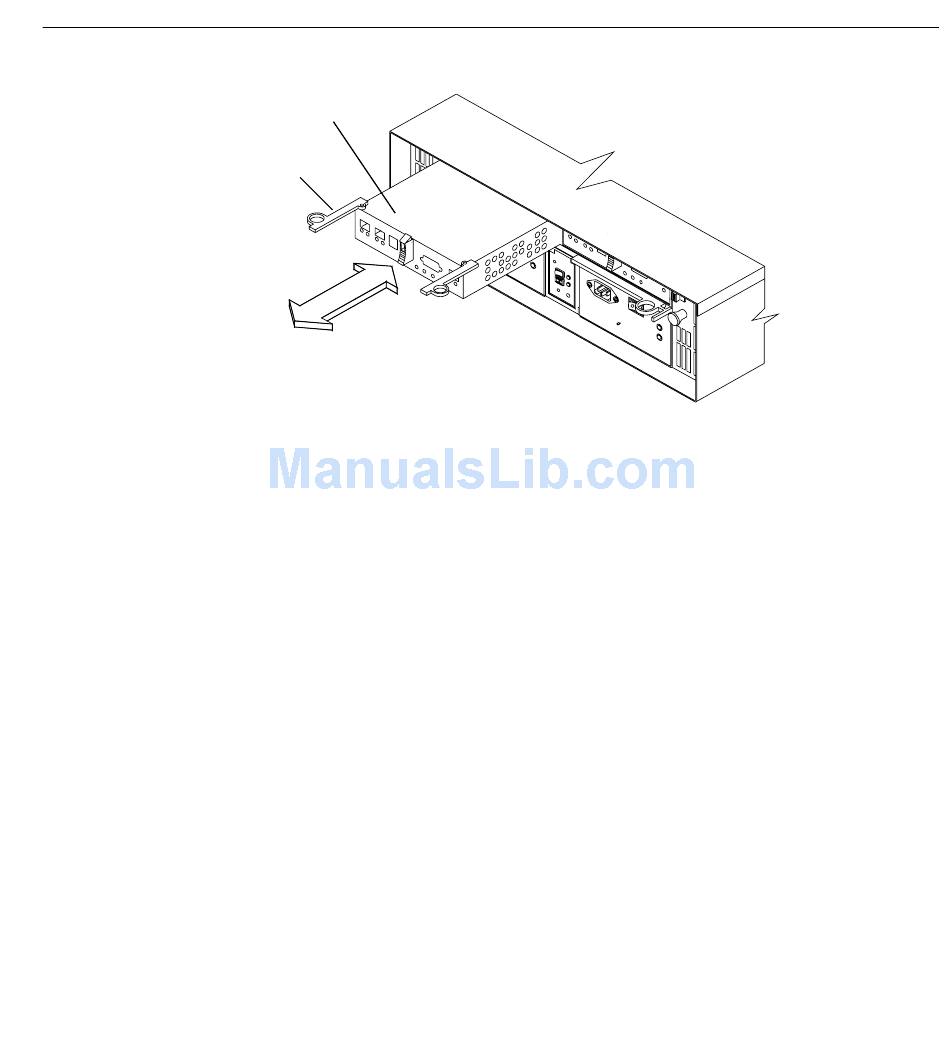

Figure 4-6 Removing And Installing A Raid Controller Module; Replacing A Failed Raid Controller Module - Silicon Graphics Total Performance 9300 User Manual

007-4644-001
Controller
Lever
Removing and Installing a RAID Controller Module
Figure 4-6
11. Check the power and fault indicators on the new controller as follows (see
Figure 4-5):
• If the power indicator is off, the controller module may not have been inserted
correctly. Remove the module and reinsert it.
• If the fault indicator is on, the power indicator stays off, or any other fault
indicator is on, use TPSSM to determine the problem.
12. See TPSSM for instructions on bringing the RAID controller online.
