6. FIXING DOOR CURTAIN TO DRUM
WHEEL
The door curtain has to be secured to the drum wheel with
suitable fasteners.
1. With the door in the fully closed position, mark the curtain
(Fig. 11) on both ends of the door.
2. Open door slightly to have access to the marked positions.
Secure the curtain to drum wheel using self drilling screws
(two on each end). The screws should be at least 90° apart.

7. SETTING DOOR TRAVEL LIMITS

POSITIONS VIA THE CONTROL PANEL
IMPORTANT NOTE: The O/S/C button will not function
until the open and close limits positions are set.
NOTE: The opener is factory preset for installation on the
RIGHT HAND SIDE. When the opener is mounted on the left
side of the door the opener will travel in reverse. To change the
direction of travel for LEFT HAND SIDE installation do the
following step - otherwise proceed with step 7.1:
NOTE: Remove the control panel cover for access.
Remember to replace the cover when set up is complete.
1. Make sure the opener is engaged and power is connected.
2. Press the Close button briefly. The door should start to close.
3. If the door opens - release and press the OSC button within
2 seconds.
4. Press the Close button again to confirm that the door is
moving in the correct direction.
7.1 SETTING LIMITS POSITIONS
1. With the drive assembly in manual mode (Fig. 12) move the
door up by hand to an approximately mid open position.
2. Re-engage the drive gear to the door by pulling down on the
string and then releasing.
3. Press the Close button (Fig. 13), the door will start closing.
Release the button once you have reached your desired
closed limit position. (Adjust close position with Open
button if required).
4. Press the Set button. This action will store the closed limit
position into memory.
5. Press the Open button, the door will start opening. Release
the button once you have reached your desired open limit
position. (Adjust open position with Close button if
required).
IMPORTANT WARNING: The garage door will start
closing automatically once step 6 is performed. The door
will also automatically re-open after fully closing with a
short pause between the cycles.
6. Press the Set button (Fig. 13). This action will store into
memory the open limit position. The door will now
automatically close to its limit position then fully open to
calculate the safety obstruction forces (ISS). Please be aware
of the above warning. The opener can now be operated from
the O/S/C Button.
Go to STEP 9 and test the Safety Obstruction Force.
SETTING LIMITS
7.2 RESETTING DOOR LIMIT POSITIONS
The door travel limit positions can be deleted for new
positions by following the steps below:
1. Press and hold the Close button (Fig. 13) for six (6) seconds
until you hear three beeps and the red Close Limit LED
starts to flash. Release the button.
2. Follow STEP 7.1 1 to 7 to set new travel limit positions.
12

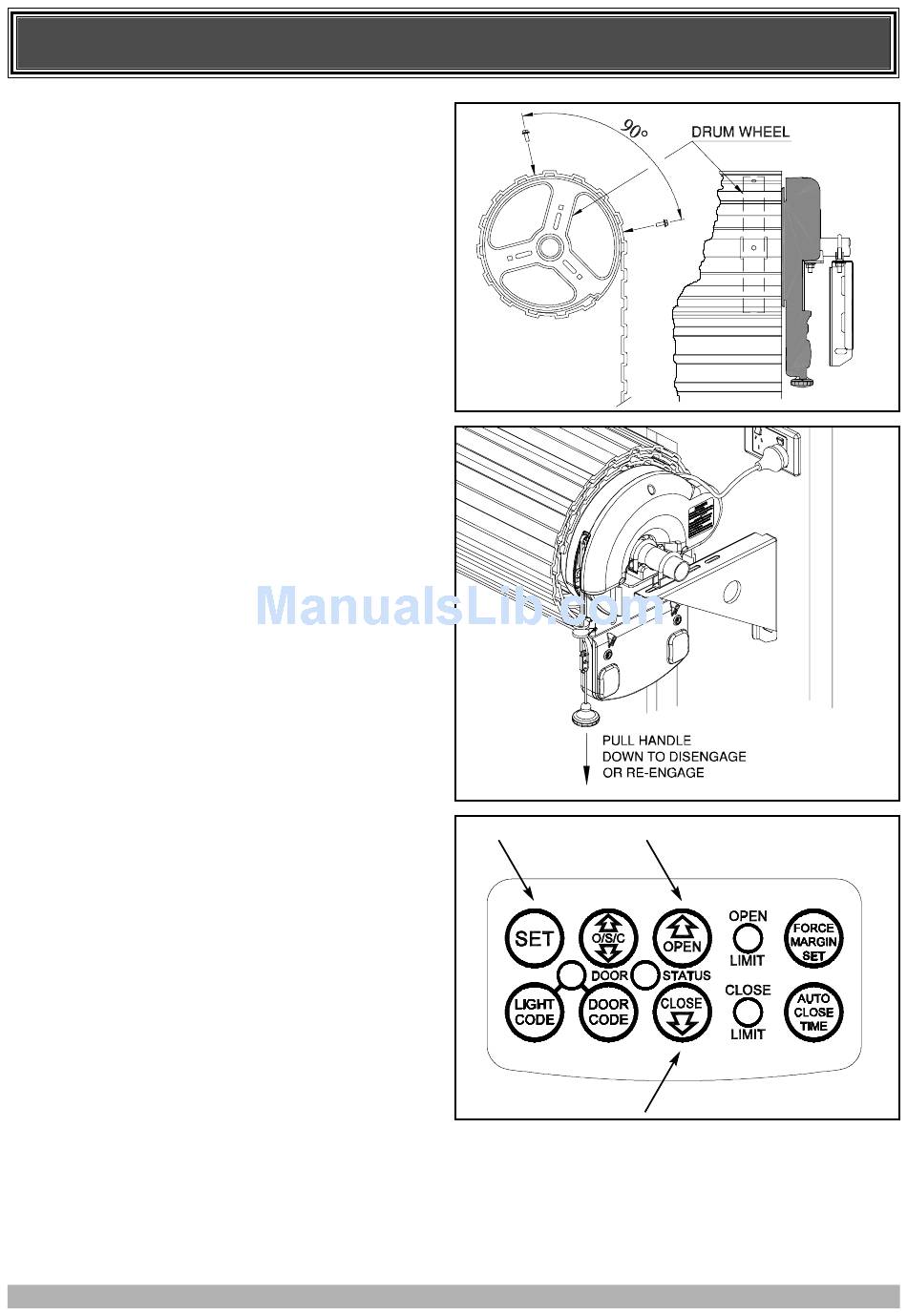

FIG. 11
FIG. 12
FIG. 13
