1) P.E. SHUNT, PE INPUT, OSC INPUT,
LIGHT INPUT, 24V DC OUTPUT
2) LIGHT CODE BUTTON (BLACK)
3) CODING LED (RED)
4) DOOR CODE BUTTON (BLUE)
5) DOOR STATUS LED (YELLOW)
6) CLOSE DRIVE BUTTON (RED)
7) CLOSE LIMIT LED (RED)
8) AUTO CLOSE TIME BUTTON

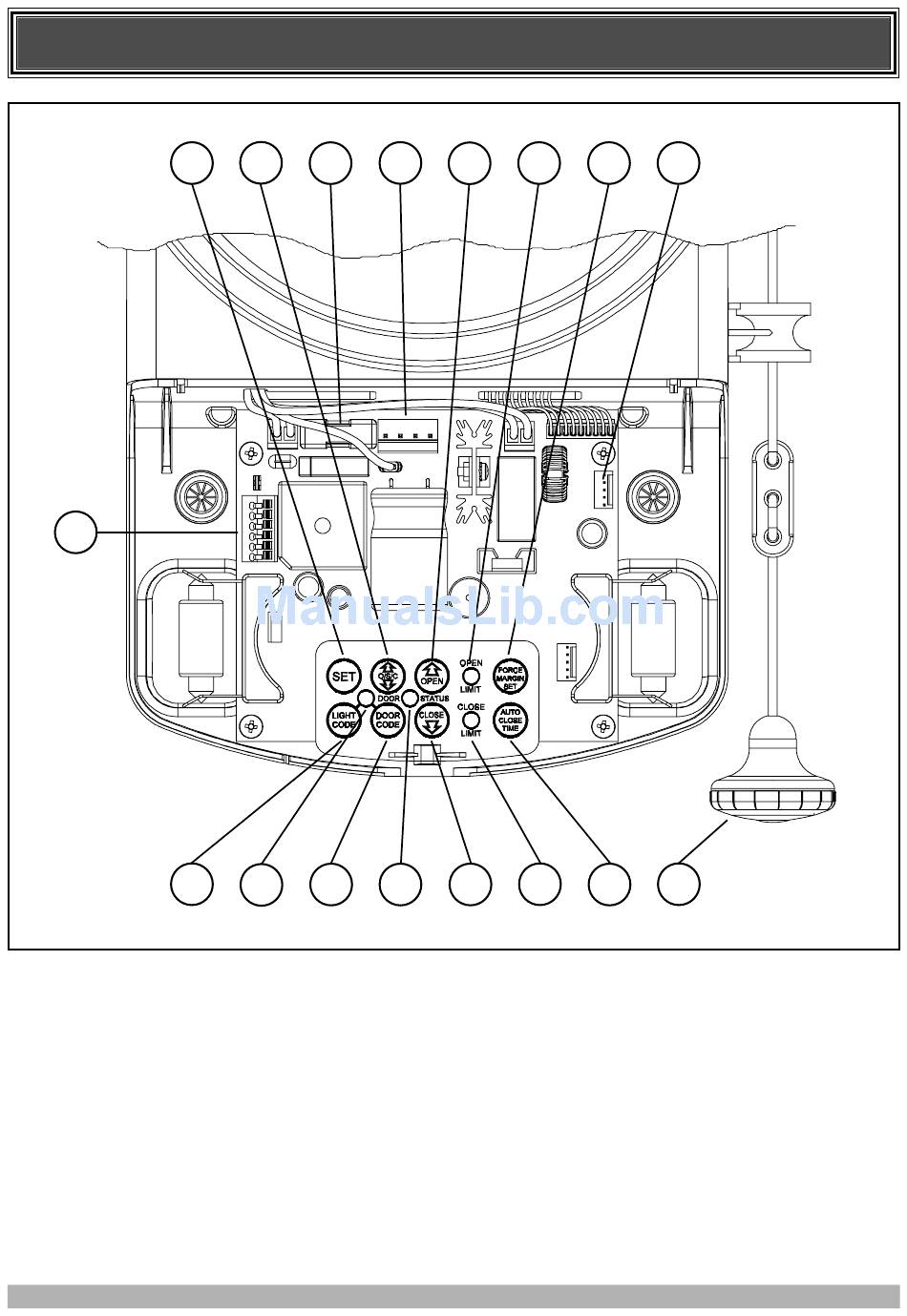

OPERATING CONTROLS
10 11 12
2 4
3
13 15
14
5 6 7
9) ENGAGE/DISENGAGEMENT HANDLE
INC. EASY ACCESS TRANSMITTER
10) SET BUTTON (ORANGE)
11) O/S/C BUTTON (YELLOW)
12) FUSE
13) BATTERY CHARGER INPUT
14) OPEN DRIVE BUTTON (GREEN)
15) OPEN LIMIT LED(GREEN)
16) FORCE MARGIN SET BUTTON
17) PROGRAMMER INPUT
7
16 17
8 9
