Setting limits
5. Fixing of door curtain to drumwheel
The door curtain has to be secured to the drum wheel
with suitable fasteners. This prevents unauthorised
access through the door by pushing the curtain up and
off the drum.

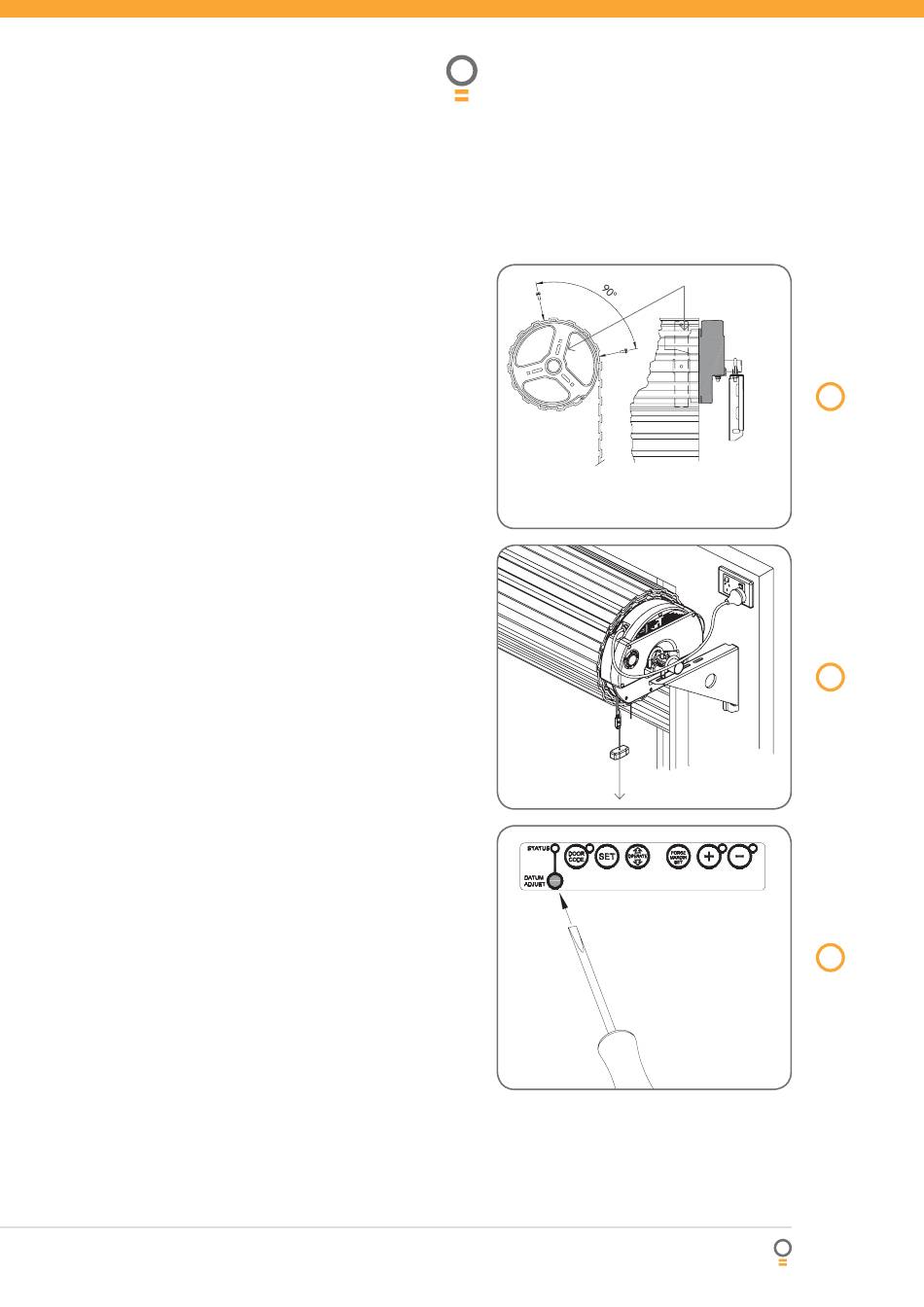

1. With the door in the fully closed position, mark the
curtain (Fig. 07) on both ends of the door.
2. Open door slightly to have access to the marked
positions. Secure the curtain to drum wheel using
self drilling screws (two on each end). The screws
should be at least 90 degrees apart.
6. Setting door travel limits
IMPORTANT NOTE: The OPERATE button will
not function until the open and close limits
positions are set.
6.1 Coding transmitter for setting limits
1. Press and hold the Door Code button (Fig. 09).
2. Press button 1 (Fig. 11) on the transmitter for
two seconds.
3. Release and pause for two seconds.
4. Press the same button transmitter again for
two seconds.
5. Release the Door Code button.
6.2 Setting datum position
1. Switch the opener into manual mode (Fig. 08).
2. Move the door by hand to an approximately mid
open position.
3. Re-engage the opener.
4. Using a small blade screw driver turn the datum
adjust screw slowly until the yellow status LED just
illuminates.
NOTE: If the status LED is already illuminated when
power is connected then turn the datum adjust screw
until the LED goes off then turn back one notch to
illuminate again.
Pull handle down to
disengage or re-engage
Owner Installation Instructions GDO-8v1 EasyRoller® II
Drum wheel
fi g 07
fi g
08
fi g 09
