SETTING SAFETY OBSTRUCTION FORCE
9. SAFETY OBSTRUCTION TEST
Please take care when testing the Safety Obstruction Force.
Due to Excessive forces failure to follow this warning may
cause SERIOUS PERSONAL INJURY and/or property
damage. The test below should be repeated at regular
intervals (approximately every two months).
9.1 TESTING CLOSE CYCLE
1. Open the door by pressing the Yellow O/S/C button (Fig. 16) .
2. Place a length of timber approximately 50mm high on the
floor directly under the door (Fig. 17).
3. Press the Yellow O/S/C button to close door. The door
should strike the object and start to re-open.
4. Press again to close the door. When the door is
approximately one metre above the floor, hold the bottom
rail of the door firmly, the door should reopen. If the door
stops and fails to re-open, it is possible that the motor
direction is set incorrectly. Change the motor direction as
per Step 7 and re-test.
IMPORTANT WARNING: If the test fails, there may be a
problem with the door, discontinue use, put the door into
manual operation and call for service.
9.2 TESTING OPEN CYCLE
1. With the door closed - press the Yellow O/S/C button. to
open the door. When the door is approximately one metre
above the floor, hold the bottom rail of the door firmly, the
door should stop.
ADJUSTING SAFETY OBSTRUCTION FORCE
The Safety Obstruction Force is calculated automatically and
set in memory on the EasyRoller. It is usually not necessary to
adjust the Safety Obstruction Force. The only time the force
may need to be increased is due to environmental conditions,
for example, windy or dusty areas, and areas with extreme
temperature changes.
NOTE: Remove the control panel cover for access.
Remember to replace the cover when set up is complete.
9.3 TO INCREASE FORCE PRESSURE
1. Press and hold the Force Margin Set button (Fig. 16)
2. While holding down the Force Margin button, press the
Open button. Each press increases the force margin in both
directions. The Open Limit LED will illuminate each time
the Open button is pressed. Each press increases the force
margin. If the Open Limit LED flashes continuously when
the open button is being pressed, this indicates that the
maximum force pressure setting has been reached.Test the
force as per step 9.1 and 9.2.
9.4 TO DECREASE FORCE PRESSURE
1. Press and hold the Force Margin Set button (Fig. 16).
2. While holding down the Force Margin button, press the
Close button. Each press decreases the force margin. The
Close Limit LED will illuminate each time the close button
is pressed. If the Close Limit LED flashes continuously
when the Close button is being pressed, this indicates that
the minimum force pressure setting has been reached.Test
the force as per step 9.1 and 9.2.
9.5 TO RECALL FACTORY SET FORCE
1. While holding down the Force Margin Set button (Fig. 16)
press the SET button for two (2) seconds.
2. Release both buttons. The default setting should now be
recalled.
9.6. TO RE-CALCULATE FORCE MARGIN (ISS)
Press and hold the Set Button for two (2) seconds, the beeper will
sound once. The door will start to move and re-calculate force
margins. The door can move between the open and close limit
positions up to four (4) times (depending on the position of the
door and the power up condition). A single beep will be heard once
the process is complete. The door is now ready for use.
IMPORTANT NOTE:
After installation ensure that the opener stops or is
prevented from opening when the door is loaded
with a mass of 20kg fixed centrally at the bottom
edge of the door.
14

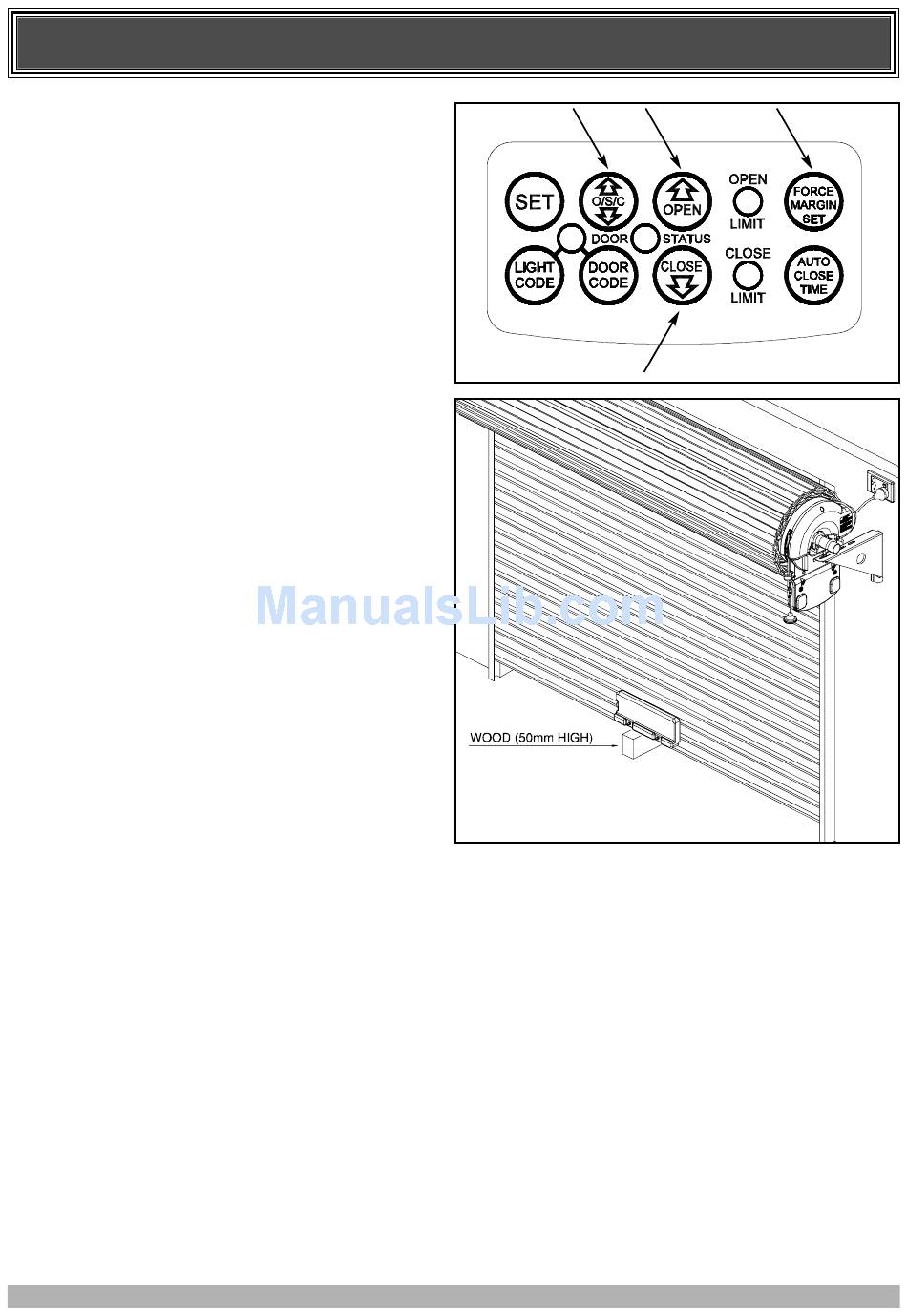

FIG. 16
FIG. 17
