Refer to Figure 64 for a full description of all GUI elements on the toolbar.
Due to the possibility that all the dialogs within the GigEVisionClient are dockable, the user can set his
own user interface as default or save it to a file, so that his own GUI arrangement can be loaded to the
GigEVisionClient installed on other machines. The GUI save and reset features are accessed through the
menu bar or the toolbar, as shown in Figure 64.
The Floating Display feature allows the user to arrange different image displaying
Note
windows for each camera's video stream on the screen.

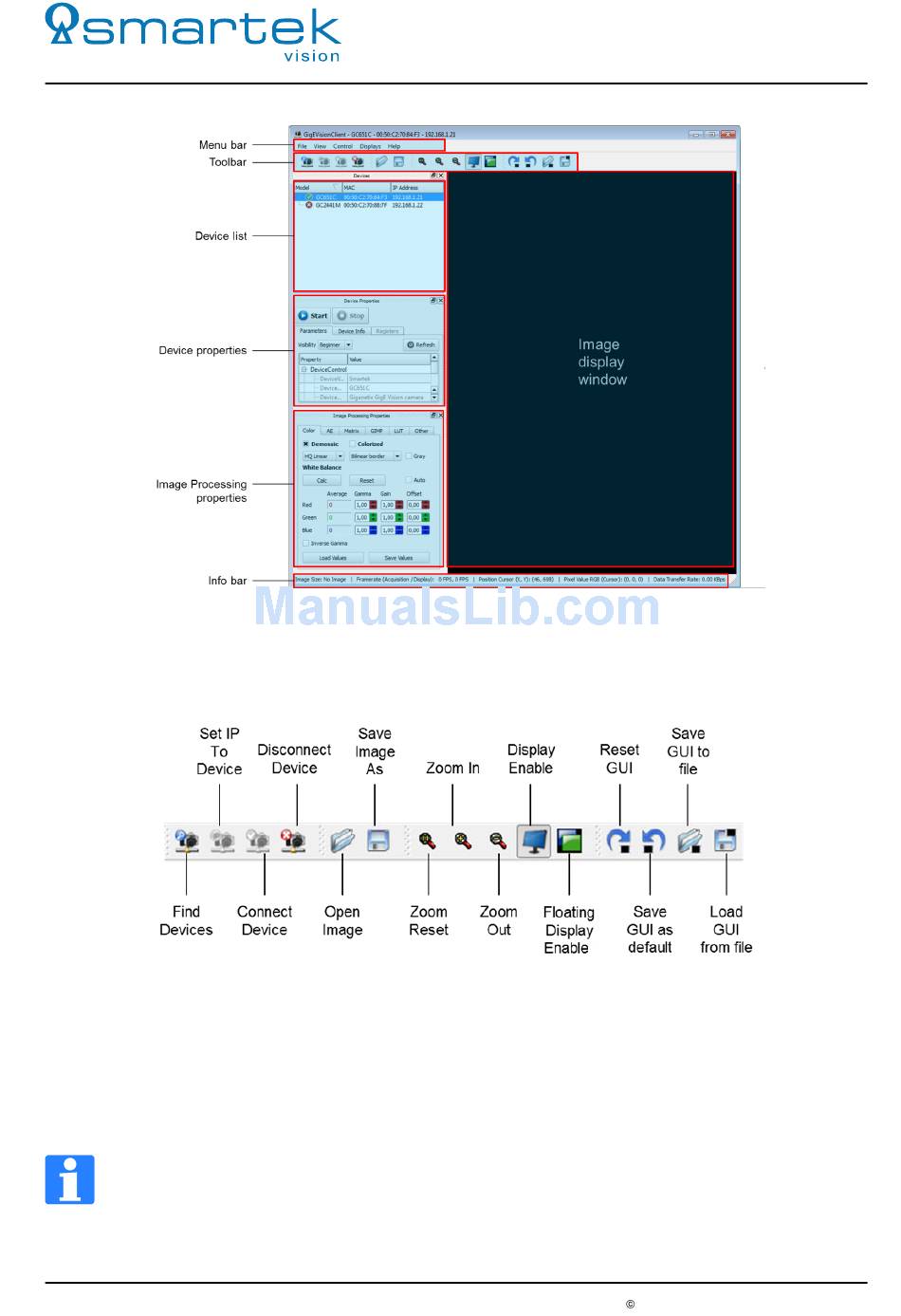

Figure 63: GigEVisionClient Graphical User Interface (GUI)
Figure 64: Toolbar description
