Cabling Requirements
A single 12-pin Hirose receptacle is used to power the camera and provide access to its input and output
lines. When assembling the 12 pin Hirose connector on one side of the cable, care must be taken to
follow the pin arrangement shown in Table 34 (determining pin 1 from the supplied drawing is critical). It is
recommended to use a shielded twisted pair cable to avoid EMI, the maximum length should not exceed
10m.
The 12 pin connector for the cable is a Hirose plug HR10A-10P-12S(73) (or
Note
equivalent).
Caution
An incorrect pin alignment or connector can damage the camera.

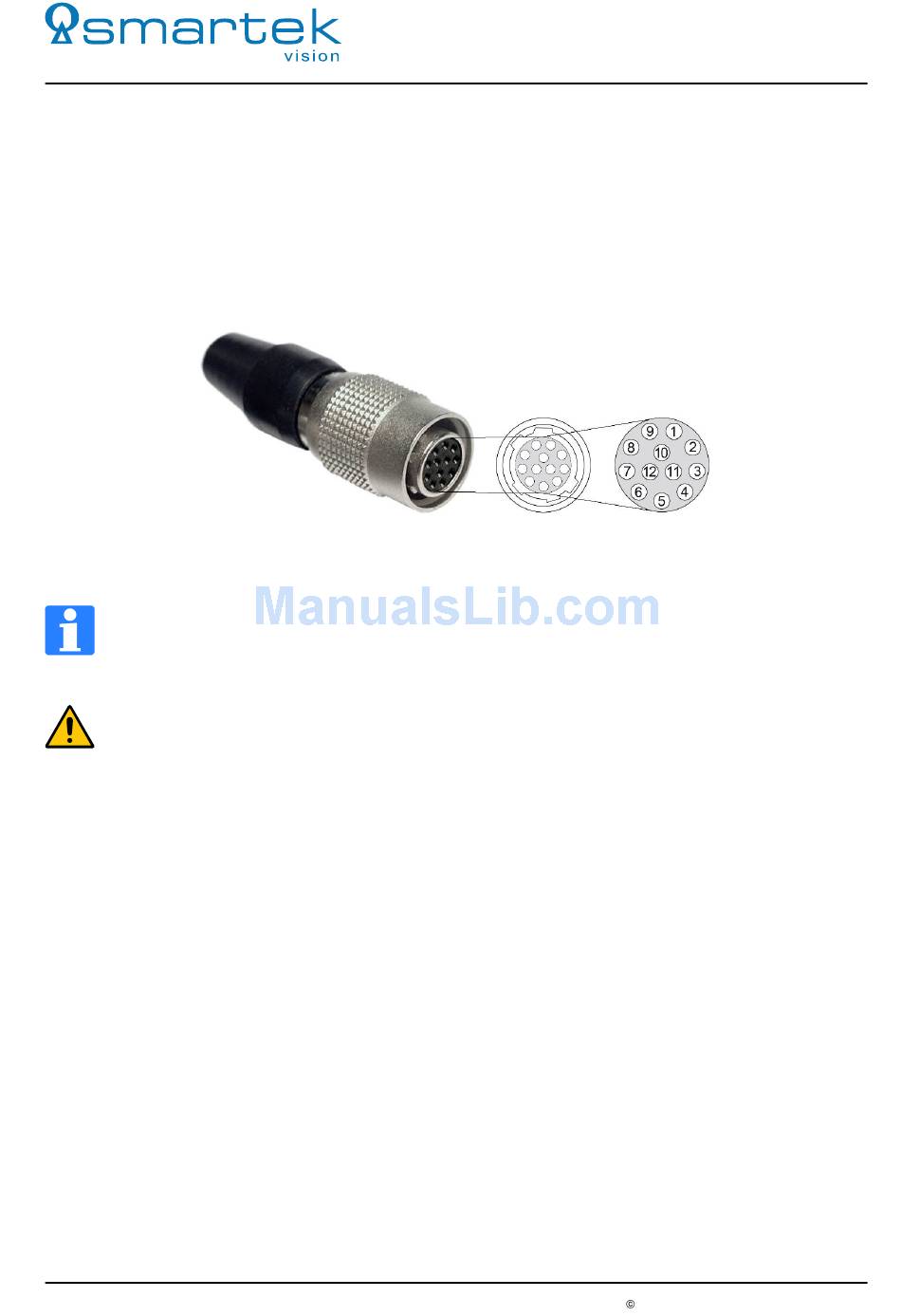

Figure 56: Hirose 12-pin plug connector
