4.1.5 Color Imaging with Bayer Pattern

In an area image sensor pixels are arranged in a two dimensional array (see Figure 85). Each pixel contains
a light sensitive photo diode that converts the incoming light intensity into an electrical voltage. The amount
of light falling into a photo diode over a period of time, defined by the exposure or integration time, determines
the pixel voltage level. Based on the technology of a photo diode, each pixel is sensitive for a wide range of
wavelengths, covering on silicon based sensors the whole visible as well as near infrared wavelengths. All
incoming photons are accumulated to one intensity, a separation of the different wavelengths and thus color
information is therefore afterwards not possible.
To build up color images, an image sensor needs the ability to extract the color information already from
the incoming light. One common way for this purpose is to place a color filter array (CFA) on top of the
photosensitive cells, to catch significant wavelengths individually by filtering off all others and use them to
recalculate full color information for each pixel. The Bayer color filter array is the most widely used filter array
on image sensors, which uses the complementary colors red, green and blue. The main advantage of this
filter array is that only one image sensor is needed to separate color information of the light at one time. In
a Bayer filter array there are twice as many green as there are red or blue pixels, the reason behind this is
the higher sensitivity of the human eye for the color green.
All color cameras of the Giganetix family are equipped with area image sensors with
Note
Bayer pattern.

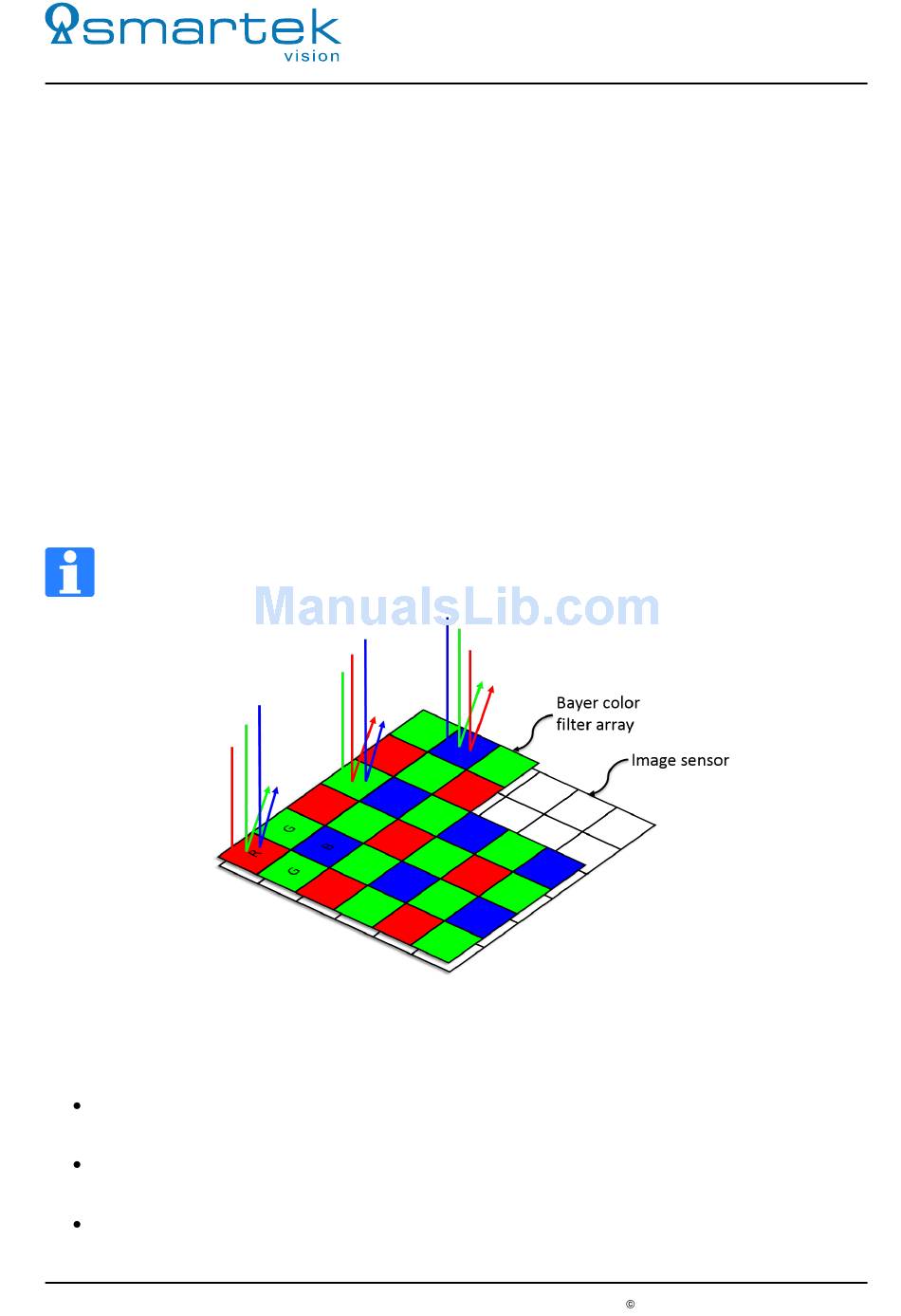

Figure 85: Bayer Color Filter Array placed on top of an area image sensor
Figure 85 illustrates a Bayer color filter array placed on top of an area image sensor:
At a red color filter position, red light is fully transmitted, green and blue light are reflected or absorbed
by the filter
At a green color filter position, green light is fully transmitted, red and blue light are reflected or
absorbed by the filter
And at a blue color filter position, blue light is fully transmitted, red and green light are reflected or
absorbed by the filter
