Auto Exposure in the GigEVisionClient
In the GigEVisionClient the Auto Exposure (AE) can be enabled / disabled in the Image Processing Properties
panel under AE (see Figure 141). If not visible, the panel can be enabled by the menu bar entry Control ⇒
Image Processing Properties.
Four parameters can be adjusted:
1. Target Brightness [%] (default 50): This parameter determines the average brightness of the image
which should be reached. For an 8-bit image this value is 127.5, for a 16-bit image 32767.5.
2. Min Exposure Time [
not match the minimum exposure time of the image sensor, but should not undercut.
3. Max Exposure Time [
must not match the maximum exposure time of the camera, but should not exceed.
4. Exposure Time Threshold [%] (default 10): absolute difference between new exposure and old
exposure value. The new calculated exposure value needs to be higher than this threshold value to
be considered as the new exposure to be adjusted.
s] (default 100): minimum exposure time to be calculated. This value must
µ
s] (default 300000): maximum exposure time to be calculated. This value
µ

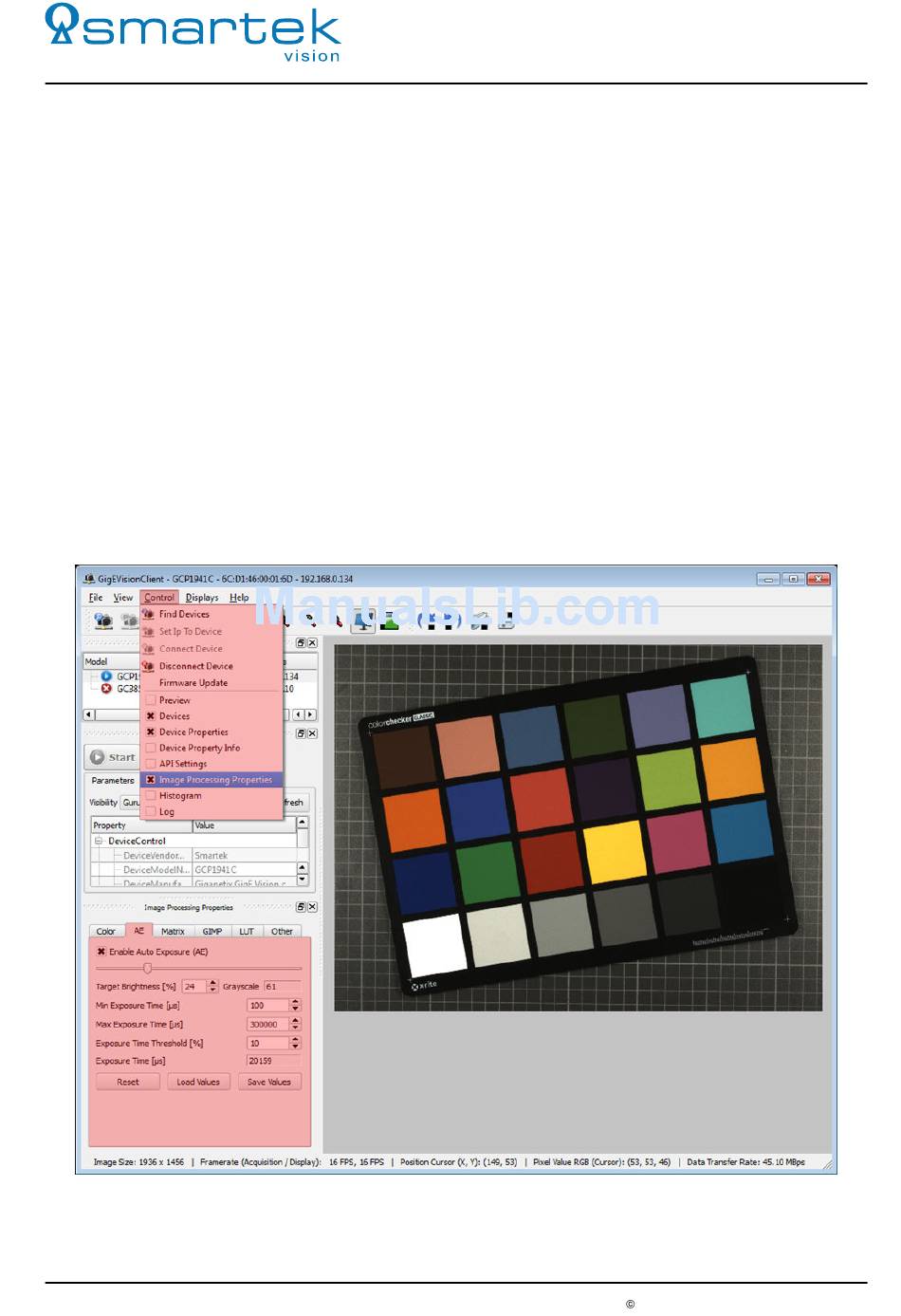

Figure 141: Auto Exposure in GigEVisionClient.
