2.3 Physical Interfaces

All cameras are equipped with two physical interfaces - a circular Hirose jack providing the camera's power
and digital IO lines and a RJ45 jack for 100/1000Mbit/s Ethernet communication. Figure 53 shows the
general connecting scheme.
12VRDCRPOWER
TRIGGERRINPUTR(2x)
DIGITALROUTPUTR(2x)

2.3.1 Ethernet Interface

The Ethernet Interface provides configuration access to the camera and is also used for image data transmission.
The connector is a standardize RJ45 jack, assigned like shown in Table 30 below.
Ethernet Connector Type
Pin no.
1
2
3
4
5
6
7
8
PC GigE NIC

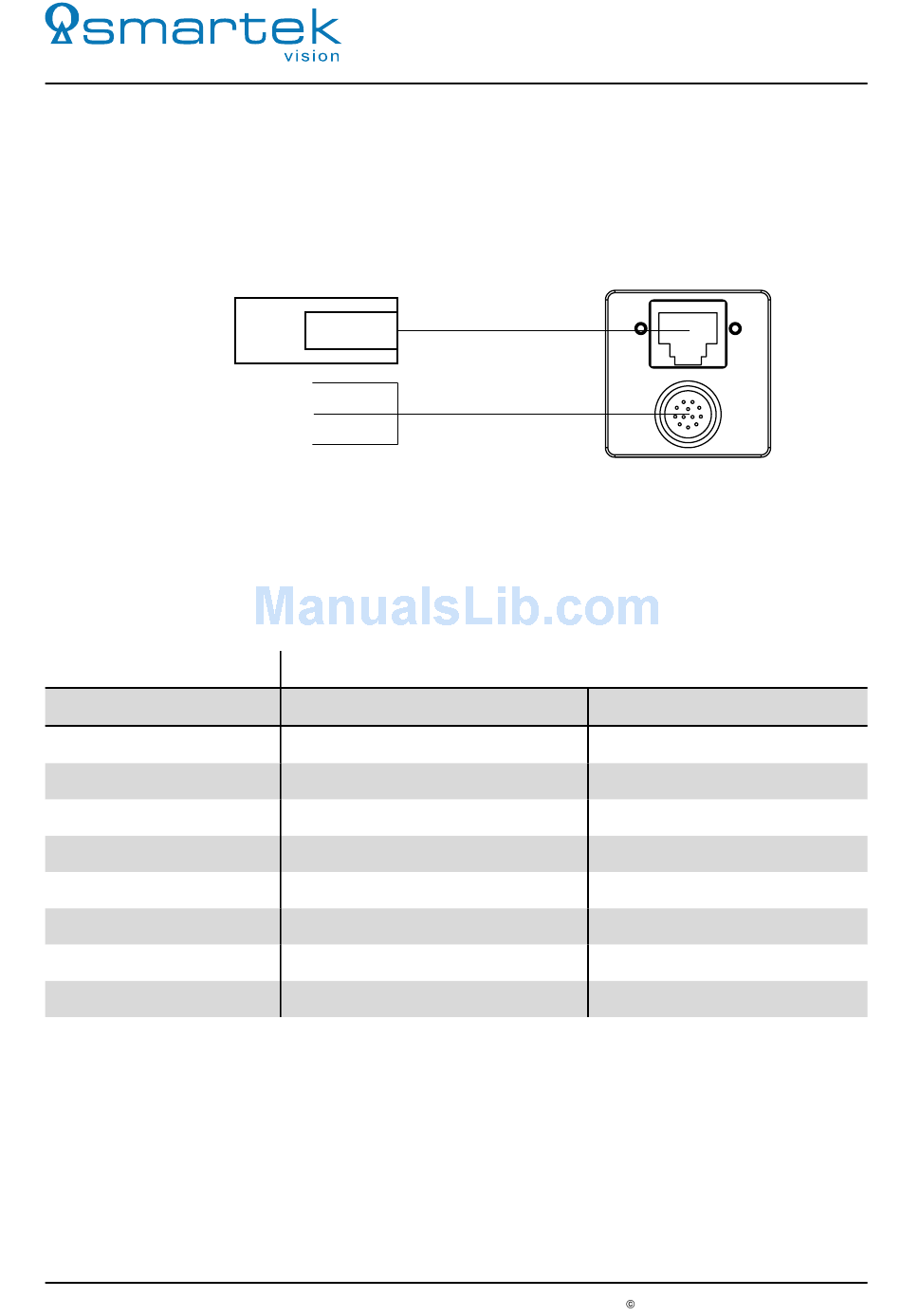

Figure 53: Connecting scheme
RJ45, Ethernet 1000BaseT, 802.3 compliant
Signal
BI_DA+
BI_DA-
BI_DB+
BI_DC+
BI_DC-
BI_DB-
BI_DD+
BI_DD-
Table 30: Ethernet connector type and assignment
2 SMARTEK Vision Giganetix Camera Models
EthernetRcable
PowerRandRI/OR
receptacle
62
GiganetixR
camera
Description
Bi-directional pair +A
Bi-directional pair -A
Bi-directional pair +B
Bi-directional pair +C
Bi-directional pair -C
Bi-directional pair -B
Bi-directional pair +D
Bi-directional pair -D
