2.1.4 Giganetix Plus Camera with Standard Housing (GCP Series)

The Giganetix Plus camera series is the enhanced version of the GC camera and allows with its extended
hardware the integration of larger high-end sensors with higher data rates. Thanks to its well-spaced
hardware it supports features like the factory based tap calibration and allows the integration of further
image processing features, right up to fully customer specific implementations.
External dimensions
(H x W x L)
Housing
Weight
Storage temperature
Operating temperature
Operating humidity
Storage humidity
Power requirement
Lens mount
Connectors
Digital input
Digital output
Conformity

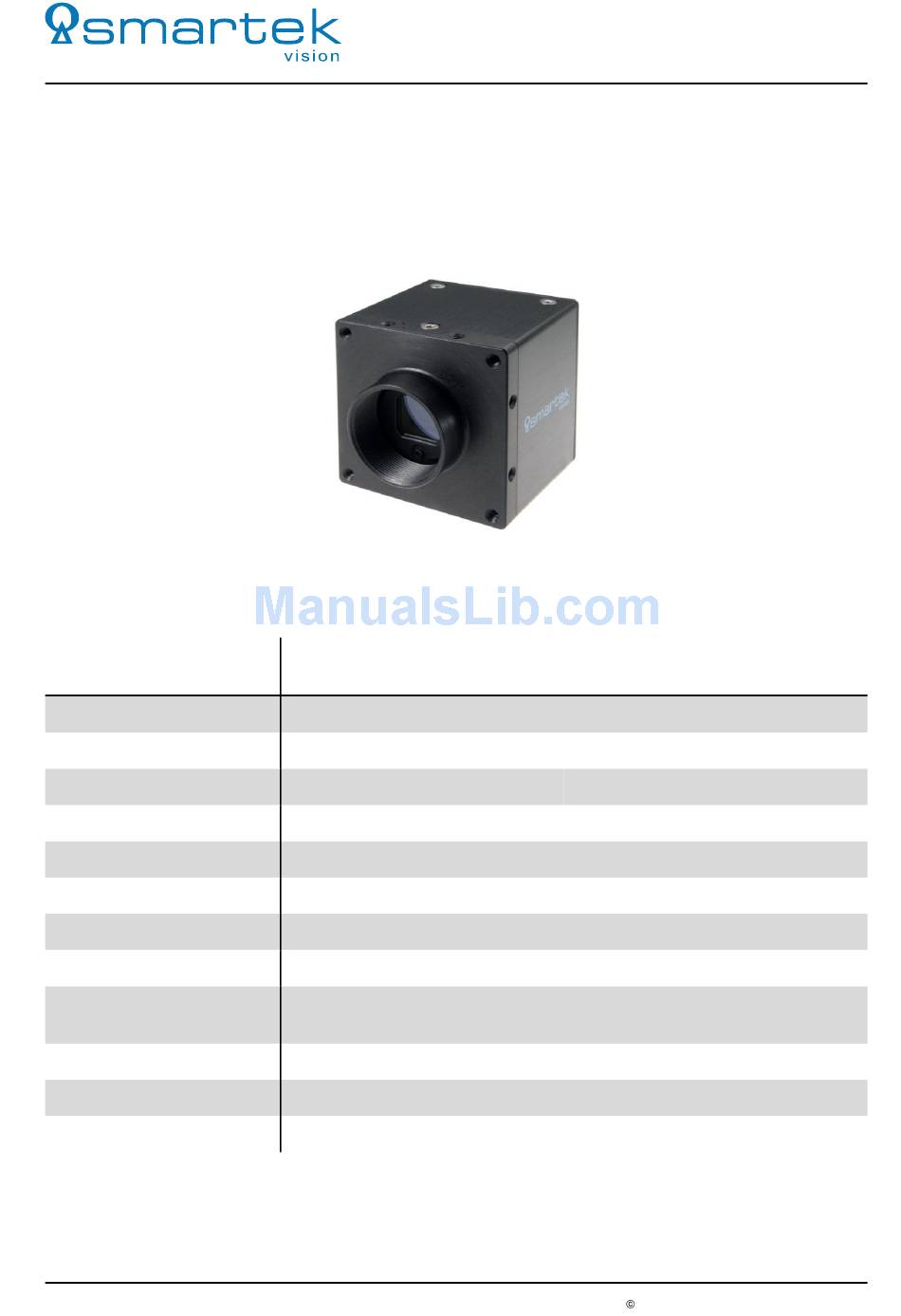

Figure 9: Giganetix Plus Camera with standard housing
50 x 50 x 48 [mm]
Approx. 150g
1
-30 ◦ C to +60
1
0 ◦ C to +50
10V to 24V DC via Power and I/O-interface, Power over Ethernet (PoE)
Screw mount Ethernet RJ45 (Communication, Data and Power),
Circular Hirose 12 pin (Power and I/O-Interface)
CE, FCC, RoHS, GigE Vision, GenICam, PoE (IEEE802.3af)
Table 7: Mechanical and electrical specifications
2 SMARTEK Vision Giganetix Camera Models
Black anodized aluminum case
◦ C
◦ C
20% to 80%, relative, non-condesing
20% to 80%, relative, non-condesing
C-Mount
2 input channels, opto-isolated
2 output channels, opto-isolated
17
1.97 x 1.97 x 1.89 [in]
5.3oz
◦ ◦
-22 F to +140 F
+32 ◦ F to +122 ◦ F
1
measured at camera housing
