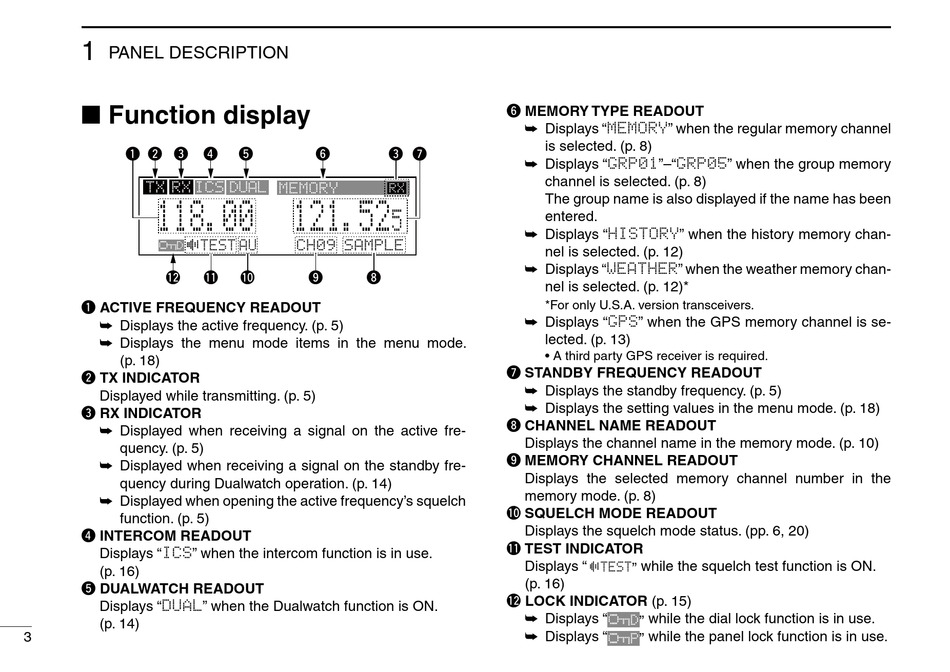

PANEL DESCRIPTION

■ Function display

q w e
TX RX ICS
118.00
TEST
D
!2
q ACTIVE FREQUENCY READOUT
➥ Displays the active frequency. (p. 5)
➥ Displays the menu mode items in the menu mode.
(p. 18)
w TX INDICATOR
Displayed while transmitting. (p. 5)
e RX INDICATOR
➥ Displayed when receiving a signal on the active fre-
quency. (p. 5)
➥ Displayed when receiving a signal on the standby fre-
quency during Dualwatch operation. (p. 14)
➥ Displayed when opening the active frequency's squelch
function. (p. 5)
3
r INTERCOM READOUT
Displays "ICS" when the intercom function is in use.
(p. 16)
t DUALWATCH READOUT
Displays "DUAL" when the Dualwatch function is ON.
(p. 14)
3
r t y
DUAL MEMORY
121.52
AU CH09 SAMPLE
!1 !0 o i
y MEMORY TYPE READOUT
➥ Displays "MEMORY" when the regular memory channel
is selected. (p. 8)
e u
➥ Displays "GRP01"–"GRP05" when the group memory
channel is selected. (p. 8)
RX
The group name is also displayed if the name has been
entered.
5
➥ Displays "HISTORY" when the history memory chan-
nel is selected. (p. 12)
➥ Displays "WEATHER" when the weather memory chan-
nel is selected. (p. 12)*
*For only U.S.A. version transceivers.
➥ Displays "GPS" when the GPS memory channel is se-
lected. (p. 13)
• A third party GPS receiver is required.
u STANDBY FREQUENCY READOUT
➥ Displays the standby frequency. (p. 5)
➥ Displays the setting values in the menu mode. (p. 18)
i CHANNEL NAME READOUT
Displays the channel name in the memory mode. (p. 10)
o MEMORY CHANNEL READOUT
Displays the selected memory channel number in the
memory mode. (p. 8)
!0 SQUELCH MODE READOUT
Displays the squelch mode status. (pp. 6, 20)
!1 TEST INDICATOR
Displays "
(p. 16)
!2 LOCK INDICATOR (p. 15)
➥ Displays "
➥ Displays "
" while the squelch test function is ON.
TEST
" while the dial lock function is in use.
D
" while the panel lock function is in use.
P
