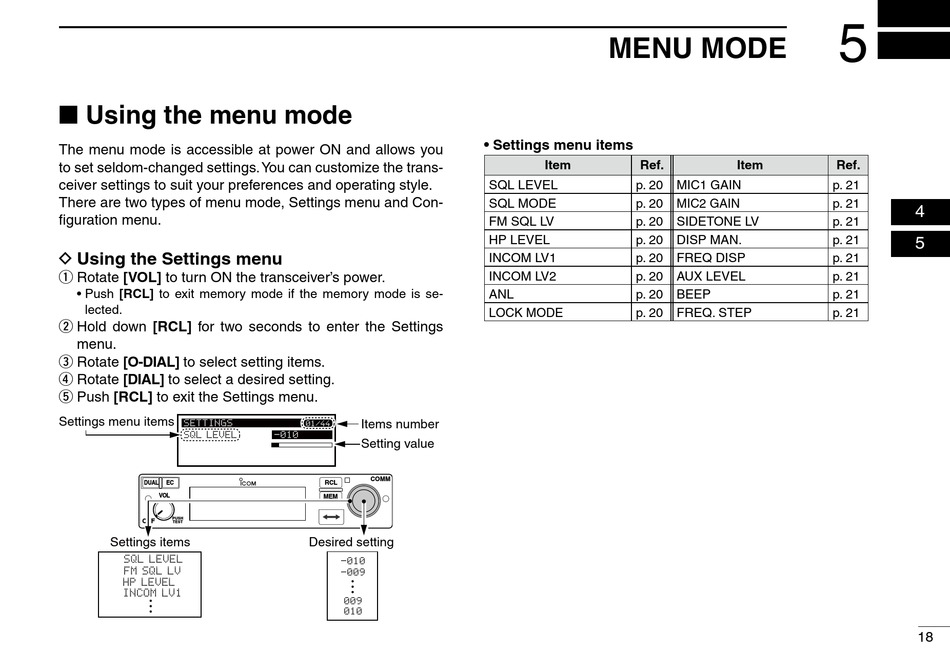

Using the menu mode

■
The menu mode is accessible at power ON and allows you
to set seldom-changed settings. You can customize the trans-
ceiver settings to suit your preferences and operating style.
There are two types of menu mode, Settings menu and Con-
figuration menu.
D Using the Settings menu
Rotate [VOL] to turn ON the transceiver's power.
q
• Push [RCL] to exit memory mode if the memory mode is se-
lected.
[RCL] for two seconds to enter the Settings
Hold down
w
menu.
Rotate [O-DIAL] to select setting items.
e
[DIAL] to select a desired setting.
Rotate
r
Push [RCL] to exit the Settings menu.
t
Settings menu items
SETTINGS
SQL LEVEL
DUAL EC
VOL
PUSH
OFF
TEST
Settings items
SQL LEVEL
FM SQL LV
HP LEVEL
INCOM LV1
Items number
01/44
-010
Setting value
COMM
RCL
MEM
Desired setting
-010
-009
009
010

MENU MODE

• Settings menu items
Item Ref.
SQL LEVEL p. 20
SQL MODE p. 20
FM SQL LV p. 20
HP LEVEL p. 20
INCOM LV1 p. 20
INCOM LV2 p. 20
ANL p. 20
LOCK MODE p. 20
5
Item Ref.
MIC1 GAIN p. 21
MIC2 GAIN p. 21
SIDETONE LV p. 21
DISP MAN. p. 21
FREQ DISP p. 21
AUX LEVEL p. 21
BEEP p. 21
FREQ. STEP p. 21
