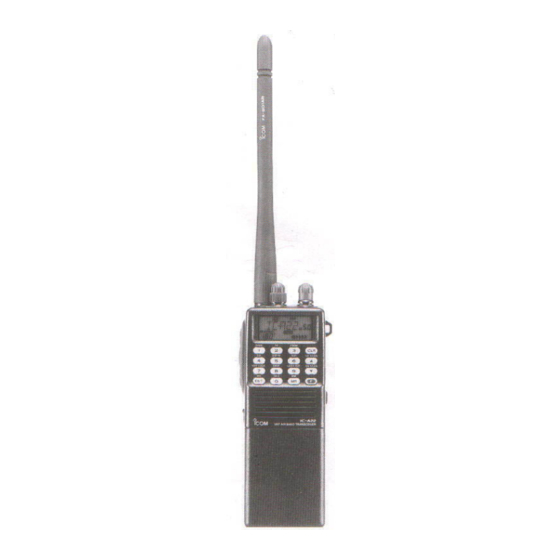

SERVICE MANUAL VHF AIR BAND TRANSCEIVERS S-14201HZ-C1 May. 2005...
Page 2
8. READ the instructions of test equipment thoroughly before connecting equipment to the transceiver. Icom, Icom Inc. and logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United Kingdom, Germany, France, Spain, Russia and/or other countries.
(Q4001: 3SK230) located under this side AF power regulator (Q5006: 2SB1201) Rx BPF's 1st IF filters FM IF IC FI4001: (IC5001: TA31136F) FL-221 [IC-A22/E] FL-203 [IC-A3/E] AF selector VCO board (IC5002: TC4W53F) RF power amplifier (IC4002: SC-1303) Buffer amplifier/LPF (IC5005: TC75W51FU) PLL reference oscillator 12.8 MHz...
SECTION 3 CIRCUIT DESCRIPTION The 1st IF signal from the RF unit is applied to a 2nd mixer 3-1 RECEIVER CIRCUITS section of IC5001 (pin 16). The signal is then mixed with a 3-1-1 ANTENNA SWITCHING CIRCUIT (RF UNIT) 2nd LO signal for conversion to a 455 kHz 2nd IF signal. The antenna switching circuit functions as a low-pass fi...
Page 7
The ANL (Automatic Noise Limiter) circuit (D5003, Q5008, R5015–R5018) reduces pulse noises. The AM detector output signal (DETO) from Q5004 is 3-1-10 VOR CIRCUIT (LOGIC UNIT) [IC-A22/E only] applied to the cathode of D5003 passing through R5015 The VOR circuit detects a variable signal (VORC) and where it is divided by R5015 and R5016.
The detected voltage is applied to one of the differential 3-2 TRANSMITTER CIRCUITS amplifier input (Q4010) and a power setting voltage is 3-2-1 MICROPHONE AMPLIFIER CIRCUIT (MAIN UNIT) applied to the other input. When the antenna impedance is AF signals from the microphone or from the [MIC] jack are mismatched, the detected voltage exceeds the APC output applied to the ALC amplifi...
TMUT Outputs a Tx mute signal. Low: for muting Q4013 and D4016. Outputs a "shift" signal for VCO oscillating SHIFT frequency. Note: * for IC-A22/E only 3-5 CPU PORT ALLOCATIONS PORT DESCRIPTION NAME Input port for detecting the connected LBATT battery (or external DC input) voltage for "LOW BATT"...
SECTION 4 ADJUSTMENT PROCEDURES 4-1 PLL AND TRANSMITTER ADJUSTMENTS ADJUSTMENT MEASUREMENT POINT ADJUSTMENT ADJUSTMENT CONDITIONS VALUE UNIT LOCATION UNIT ADJUST TUNE 1 • Displayed frequency : 118.025 MHz Connect the digital 1.4–1.6 V R4068 VOLTAGE • Receiving multimeter or oscillo- scope to CP2 (TUNE).
Page 11
RF UNIT RF POWER METER ATTENUATOR MODULATION 50 Ω/1–10 W 40 or 50 dB ANALYZER FREQUENCY DUMMY LOAD 8 Ω COUNTER to [SP] to [ANT] to [MIC] MILLIVOLTMETER AUDIO GENERATOR 300–3000 Hz R4057 Power adjustment Reference frequency C4101 adjustment Tune voltage check point DC POWER SUPPLY R4068 Tune voltage...
• Receiving 1 • While pushing [1] and [9], turn power Function display "FROM, 90°" ±3° LOGIC R6151 (IC-A22/E only) ON to enter the VOR setting mode. pannel • Displayed frequency : 113.000 MHz • Connect the SSG to the antenna con- nector and set as;...
HD4074829TF [IC-A3] only VORO EEPROM IC6107 IC6106 NJM2904V NJM2903V PHASE LIMIT FM DET SHIFT COMMON (PTT) Q6110 UNR9213J(A22/E) Q6109: 2SC4211 PTT UNIT UN9213(A3/E) (LIGHT) DATA BUS D6116: MA111 LEVEL (ANL) INITIAL VOR circuit LOGIC UNIT MATRIX MATRIX (IC-A22/E only) 7 - 1...
SECTION 9 BOARD LAYOUTS 9-1 PTT UNIT 9-3 VCO BOARD SHIFT J9001 NOTE: Add "7000" to each indicated part number on the board R10K for the actual part number. PTTSW R12K LIGHT NOTE: Add "9000" to each indicated part number on the unit for the actual part number.
9-4 RF UNIT • TOP VIEW MP4001 MP4002 EXTPTT EXTMIC RF-AGC CLONE SIDET INTSP EXTSP SHIFT TMUT VCO BOARD DATA SHIFT IC4002 MP7001 X4001 P5001 TO PRT UNIT FROM MAIN UNIT J5004 NOTE: Add "4000" to each indicated part number on the unit for the actual part number. 9 - 2...
Page 30
• BOTTOM VIEW (RF UNIT) NOTE: Add "4000" to each indicated part number on the unit for the actual part number. 9 - 3...
9-5 MAIN UNIT • TOP VIEW DIAL POWER VOL/SQL INTSP DOWN BEEP DETO SHIFT AFON TMUT CLONE DATA INTMIC NOTE: Add "5000" to each indicated part number on the unit for the actual part number. 9 - 4...
Page 32
• BOTTOM VIEW (MAIN UNIT) EXTPTT EXMIC RF-AGC CLONE SIDET INTSP EXTSP (NC) TMUT (NC) DATA SHIFT NOTE: Add "5000" to each indicated part number on the unit for the actual part number. 9 - 5...
9-6 LOGIC UNIT [IC-A22/E] • TOP VIEW DS6001 NOTE: Add "6000" to each indicated part number on the unit for the actual part number. 9 - 6...
Page 34
• BOTTOM VIEW (LOGIC UNIT [IC-A22/E]) DOWN BEEP SHIFT DETO AFON TMUT R10K PTTSW CLONE R12K DATA INTMIC NOTE: Add "6000" to each indicated part number on the unit for the actual part number. 9 - 7...
9-7 LOGIC UNIT [IC-A3/E] • TOP VIEW DS6001 NOTE: Add "6000" to each indicated part number on the unit for the actual part number. 9 - 8...
Page 36
• BOTTOM VIEW (LOGIC UNIT [IC-A3/E]) DOWN BEEP SHIFT DETO AFON TMUT R10K PTTSW CLONE R12K DATA INTMIC NOTE: Add "6000" to each indicated part number on the unit for the actual part number. 9 - 9...
