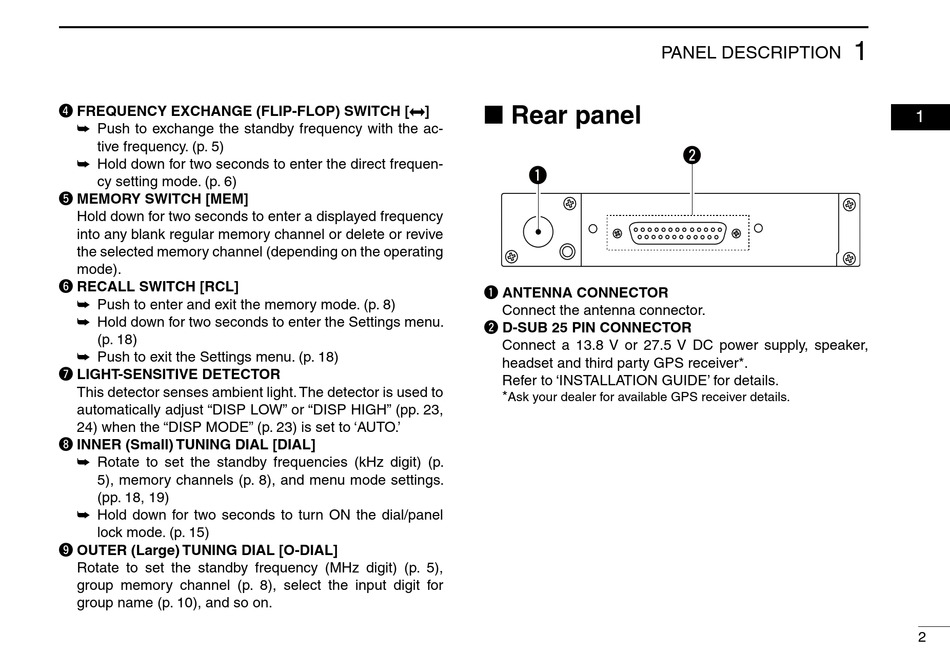

Rear Panel - Icom IC-A220 Instruction Manual

r FREQUENCY EXCHANGE (FLIP-FLOP) SWITCH [
➥ Push to exchange the standby frequency with the ac-
tive frequency. (p. 5)
➥ Hold down for two seconds to enter the direct frequen-
cy setting mode. (p. 6)
t MEMORY SWITCH [MEM]
Hold down for two seconds to enter a displayed frequency
into any blank regular memory channel or delete or revive
the selected memory channel (depending on the operating
mode).
y RECALL SWITCH [RCL]
➥ Push to enter and exit the memory mode. (p. 8)
➥ Hold down for two seconds to enter the Settings menu.
(p. 18)
➥ Push to exit the Settings menu. (p. 18)
u LIGHT-SENSITIVE DETECTOR
This detector senses ambient light. The detector is used to
automatically adjust "DISP LOW" or "DISP HIGH" (pp. 23,
24) when the "DISP MODE" (p. 23) is set to 'AUTO.'
i INNER (Small) TUNING DIAL [DIAL]
➥ Rotate to set the standby frequencies (kHz digit) (p.
5), memory channels (p. 8), and menu mode settings.
(pp. 18, 19)
➥ Hold down for two seconds to turn ON the dial/panel
lock mode. (p. 15)
o OUTER (Large) TUNING DIAL [O-DIAL]
Rotate to set the standby frequency (MHz digit) (p. 5),
group memory channel (p. 8), select the input digit for
group name (p. 10), and so on.
e

Rear panel

] ■
q
e q
q ANTENNA CONNECTOR
q
Connect the antenna connector.
e
w D-SUB 25 PIN CONNECTOR
Connect a 13.8 V or 27.5 V DC power supply, speaker,
headset and third party GPS receiver*.
Refer to 'INSTALLATION GUIDE' for details.
*
Ask your dealer for available GPS receiver details.
PANEL DESCRIPTION
w
For regular type
w
Optional MBA-3
